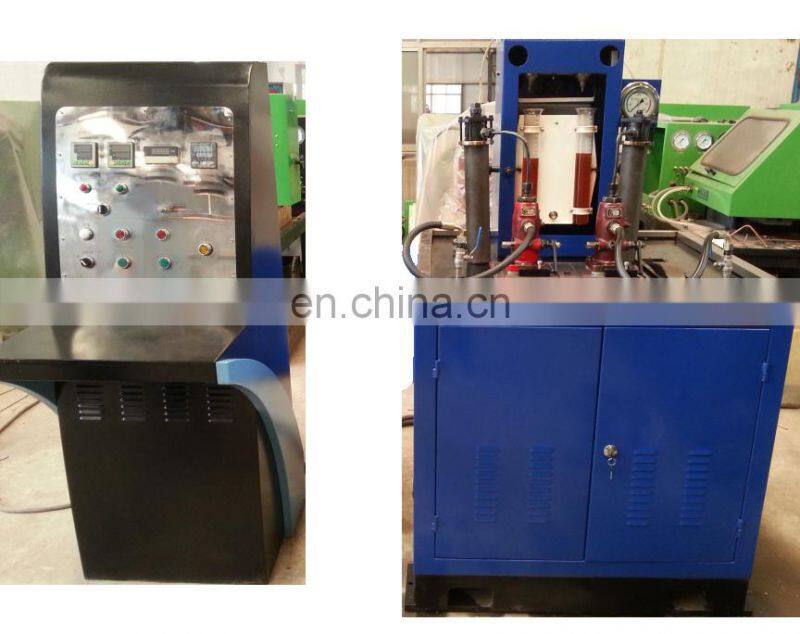

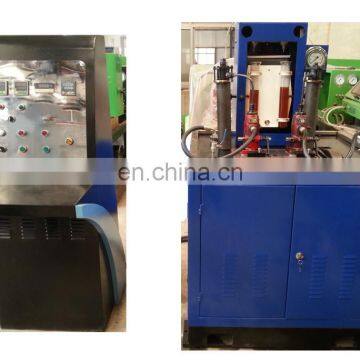

BC240 Diesel Fuel Injection Pump Test Bench
The BC240 fuel injection pump test bench is suitable for the running-in and flow performance test of the fuel injection pump for the diesel engine of the Dongfeng series diesel locomotive. It provides a reliable basis for accurate adjustment of the fuel injection pump flow.
It adopts frequency conversion speed control, electronic watch integrated control, automatic adjustment of oil supply temperature, arbitrary adjustment and preset camshaft rotation speed, and the running-in test of the product fuel injection pump.
Fuel injection pump test bench: injection pump flow metering; electronic injection, oil temperature, speed number electronic display.
Electronic fuel injection pump test bench: injection pump flow measuring cylinder, test results and electronic display of test bench operation information.
First, the installation requirements:
Power supply: Three-phase AC 380V±10% 50Hz 15KW Machine weight: 1500 kg
The equipment is placed on a solid and even floor in the room. The working environment temperature is -10 °C - 50 °C, and the relative humidity is less than 90%.
Second, the general shape of the fuel injection pump test bench outline diagram
Technical Parameters:
Power supply: Three-phase AC 380V±10% 50Hz 15KW
Drive shaft output speed range: 0 ~ 2000r / min
Test bench output speed drop:
When the load is from zero to maximum, it does not exceed 1% of the test speed
The speed fluctuation under stable load does not exceed ±2 r/min
The speed fluctuation under cyclic load does not exceed 6 r/min
Turntable moment of inertia: 70 N·m
Low pressure oil supply of test oil: 10 L/min
Low pressure oil supply pressure of test oil: 140~600 kPa
Test oil self-control temperature range: 40±2 °C
Counter range: (0~99)×10c
Test bench fuel tank capacity: 40L
Test typhoon cooling power: 400W
Machine weight: about 1500 kg
Dimensions (for reference): Main unit: (length × width × height) 1200 × 800 × 1600 mm
Fuel tank: (length × width × height) 450 × 300 × 300 mm
Control cabinet: (length × width × height) 500 × 400 × 1600 mm
JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector test bench ,
common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools and spare part .
Welcome to visit our factory and cooperate in the future.
