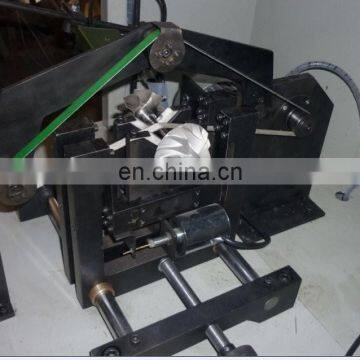

Rotor dynamic turbo balancing machine RYQ-3
1.Balancing machine feature:
1.Safety and Ease of handling
2.Driven Methods Which Meet your Requirements
3.Appropriate Electronic Unit For every Balancing Problems
4.Suitable Type Of Readout System For Every Accuracy Requirement
5.Specially designed brackets transmit mechanical force with low vibration damping
6.Durable and reliable sensor possesses good linearity
7.Permanent calibration brings high accuracy with a permission of large initial unbalance amount
8.Belt-driving offers higher precision and easier operation
9.Advanced electrical measuring system and friendly man-machine interface
10.Modular design offers a wide range of application
2. balancing machine applications:
The balancing machines are widely used in motors, fans, pumps, cars, houses,
chemicals, agricultural machinery, petroleum machinery, paper machinery,
printing machinery and other industries, the maximum reduction
in the mechanical parts work vibration and noise,
to help users improve the accuracy of the product and life, praised by users.
3. turbo balancing machine parameters
Model |
RYQ-3 |
RYQ-10 |
Mass scope of work piece kg |
0.1-3 |
0.1-10 |
Biggest diameter work piece mm |
350 |
500 |
Two span of supports mm |
30-450 |
30-600 |
With a diameter circle in drag (mm) |
≤150 |
|
Trunnion support mm |
4-17 |
|
Balancing speed r/min |
400-10000 |
|
Min achievable residual unbalance amount |
≤0.5gmm/kg |
|
Unbalance reduction ratio % |
≥90% |
|
Motor power kW |
0.09 |
0.18 |
mode of speed regulation |
micro-motor |
|
Transmission model |
Circle with |
|
4. balancing machine Warranty and After Sales Service:
1).Two years free warranty, main parts are free of charge when problems happened during the warranty period.
2).Life time free maintenance service.
3).Free training course at our factory with professional engineers.
4).We provide the consumable parts at agent price when you need replacement
5).24 hours online service each day, free technical support with different languages.
6).We provide door to door technical support to agents, if necessary.
Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the common rail tools and spare parts also with best quality and most competitive price.
Q:What's the warranty?
A:One year
