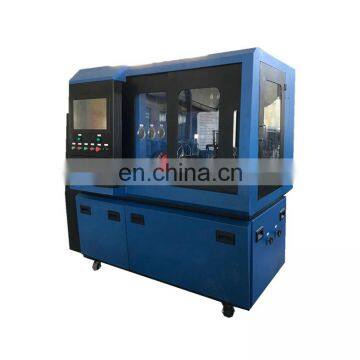

Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench

Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench thumbnail-1
Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench thumbnail-2
Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench thumbnail-3
Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench thumbnail-4
Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench thumbnail-5
Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench thumbnail-6
Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench thumbnail-7
Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench photo-1
Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench photo-2
Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench photo-3
Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench photo-4
Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench photo-5
Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench photo-6
Diesel Fuel Injection Pump Test Bench EURO II EURO III Common Rail Injector Pump Test Bench CR917S All in One Test Bench photo-7
US$ 10,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BEACON
Place of Origin:
China
Model Number:
CR917S
Contact Supplier Request Quote Chat Now
Jinan Beacon Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or any sea port of china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BEACON
Place of Origin China
Model Number CR917S
Type Engine Analyzer
Certification CE ISO
Voltage 380v/220v
Power standard
Warranty 12 Months
Applicable Models with common rail engine
Product Description
Diesel fuel injection pump test bench EURO II EURO III common rail injector pump test bench CR917S all in one test bench

Introduction

1. Industrial computer Windows operating system 2. With database, can can search, store, modify test data and generate new data. 3. Automatic measurement and generate QR code 4. Closed-loop control, which can automatically adjust the control rail pressure, the rail pressure is stable, and the fluctuation value is ±1 Mpa. 5. Display rail working pressure is 200Mpa, maximum pressure is 250Mpa 6. Common rail injection quantity, injection time, number of injections can be freely changed 7. With ultra high pressure protection, the rail pressure is more than 250 Mpa will automatic shutdown 8. Oil temperature automatic control ± 40℃ 9. With glass protective door, safe operation and easy observation 10. Can detect HEUI engine oil circuit 11. Oil temperature control using compressor refrigeration (optional) 12. Support Internet connection for remote upgrade 13. With injector response time detection (optional)

Main Function:

1.Integrated automatic operation, including test bench speed,rail pressure,flow measurement,temperature control, asurement report analysis, one-button operation. 2.Can test Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, heavy oil and other manufacturers solenoid valve or piezoelectric crystal injector and high pressure common rail pump. 3.Can test Bosch, Cummins and other EUP/EUI oil pumps. 4.Can test HEUI medium pressure common rail injector. 5.Can test HEUI medium pressure common rail pump(optional). 6.Can test double solenoid valve nozzle injector(optional). 7.Can test Cat 320D high-pressure pump(optional). 8.Automatic generation of Q code 9.Can test injector response time.

Main parameter:

Output power:
11kw/15kw/18.5kw/22kw (according to customer needs)
Speed:
0-3000r/min
Host center height:
128m
Wheel oil pump:
10L/min
Oil supply pressure:
0-0.4mpa
Fuel tank capacity:
40L
Oil tank capacity:
20L
High pressure oil supply:
0-250mpa
Oil supply:
0-35mpa
Hotbed control:
40 °C ± 2 °C
Oil hotbed:
40 °C ± 2 ° C
Drive voltage:
0-180v
Drive current:
0-25v
Input voltage:
220v-380v (according to customer needs)
Best new common rail test system:
With Injector QR coding,for BOSCH DENSO DELPHI SIEMENS:
CAMBOX + ADAPTOR



Full set EUI EUP tester+ CAMBOX+ adaptor for electronic unit injector EUI EUP injector test
With CAT Actuating pump and CAT 320D pump test ,check the flange(adaptor as below):
Accessories:
Certification
Packing & Delivery
Our customer
Company information

JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .

Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.

Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....
