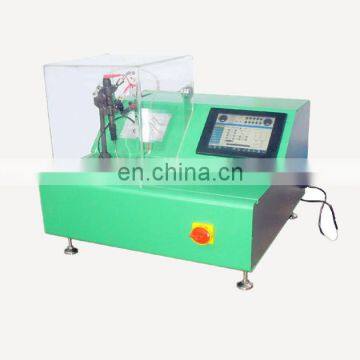

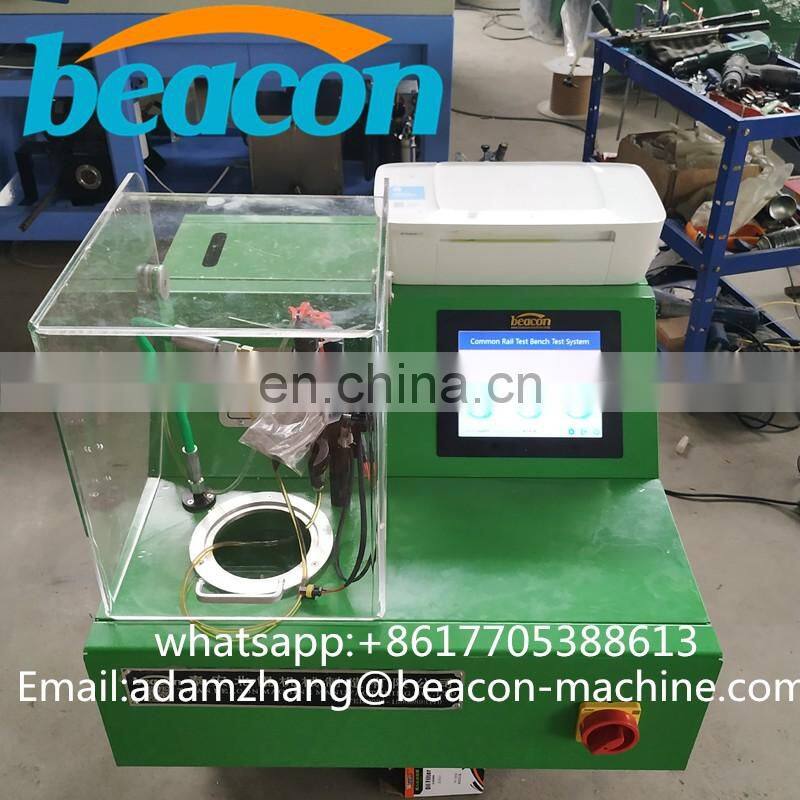

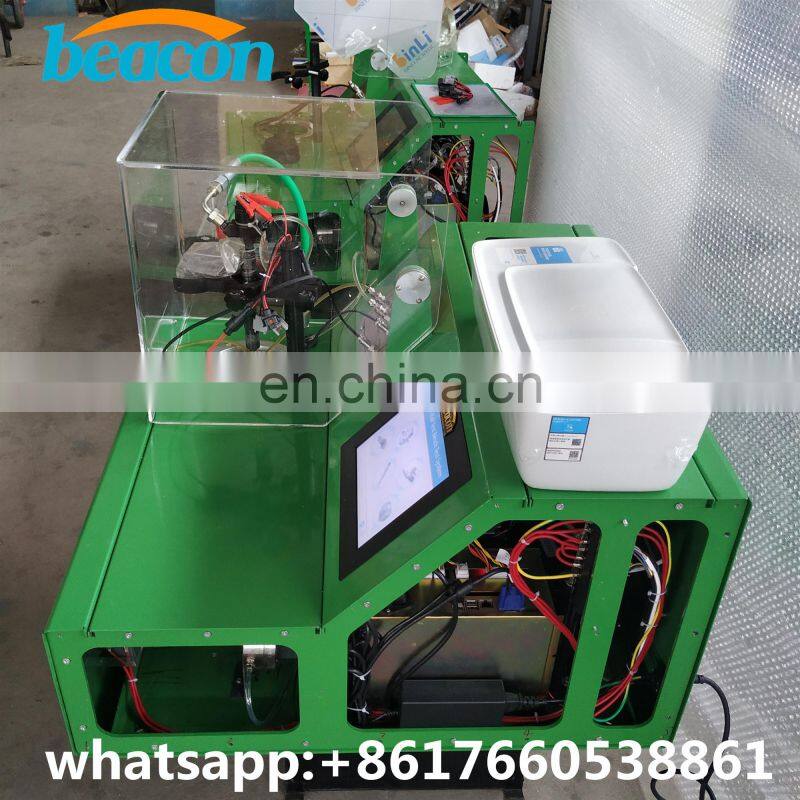

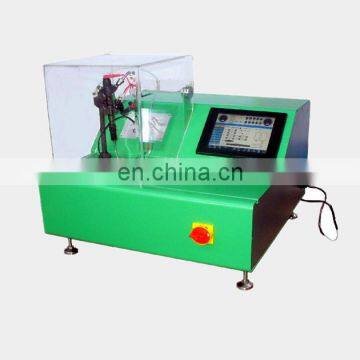

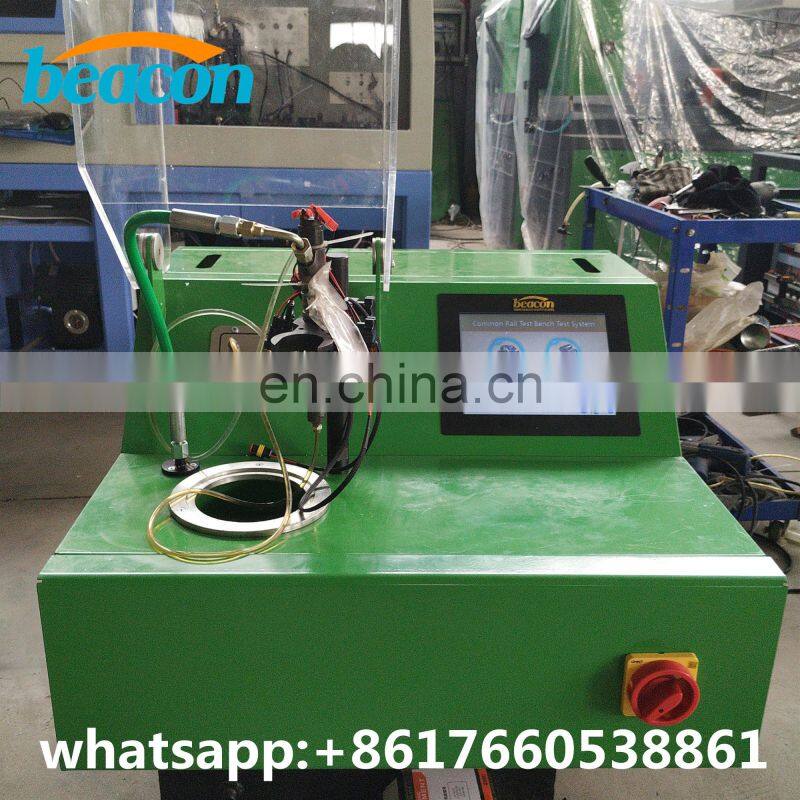

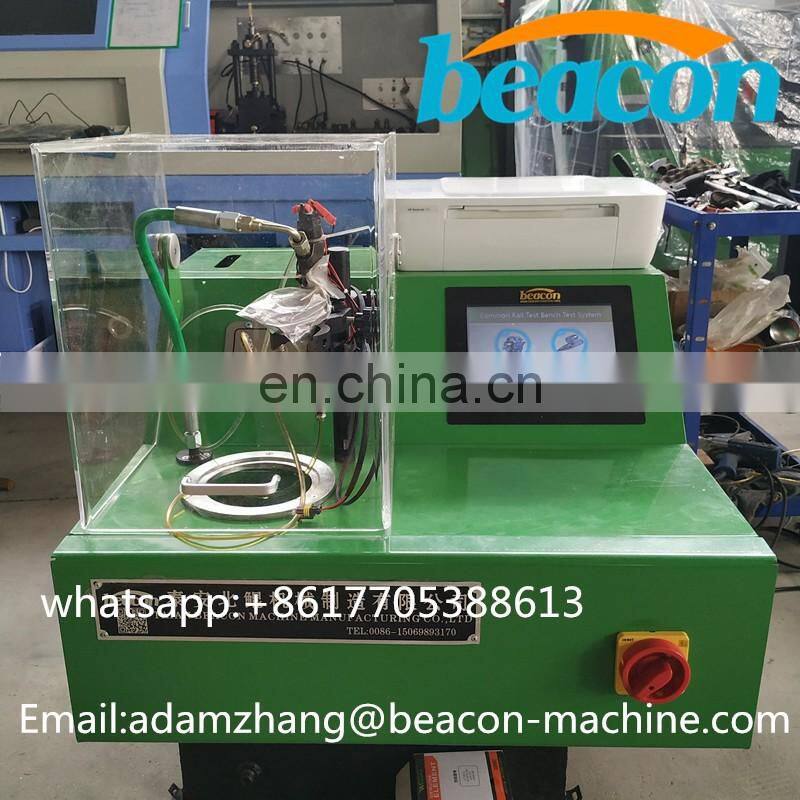

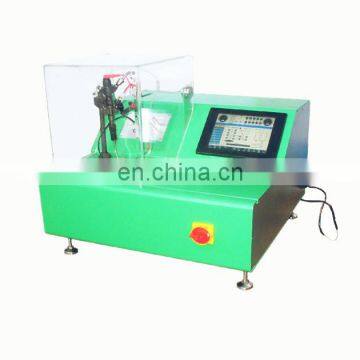

EPS200 Diesel Common Rail Injector Tester Common Rail Injector Test Bench

EPS200 common rail diesel injector test bench is our latest independent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer,Windows operating system. The oil quantity is measured by sensor and displ

ayed on computer screen. All data can be searched and saved.

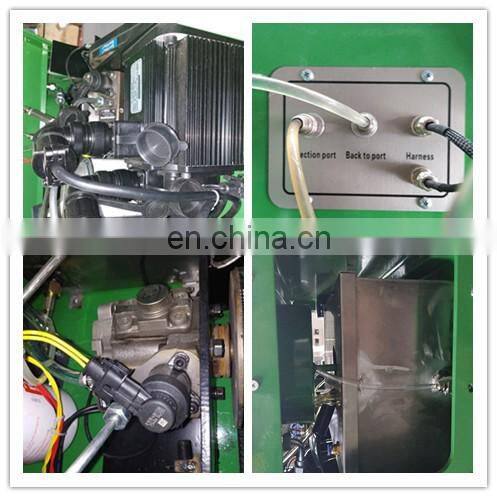

It adopts BOSCH original common rail pump to provide 0~1600 bar of rail pressure.

The rail pressure can be adjusted automatically. it can test common rail injec tor of BOSCH, SIEMENS, DELPHI, DENSO.

Advanced technology, steady performance, precise measurement and convenient operation.

CHARACTERISTIC

1. bosch eps200 Controlled by industrial computer in real time, Windows operating system.

2. Oil quantity is measured by sensor and displayed on 10.4tactile LCD screen;

3. More than 400 kinds of injectors data can be searched and used.

4. 0~1600 bar EPS200 common rail diesel injector test bench Data can be searched and saved.

5. EP200Common Rail Injector Testing Bench is installed BOSCH common rail pump to provide 0~1600 bar of rai l pressure.

6. Rail pressure can be tested in real time, it contains the high-pressure protection function

7. Pulse and frequency of the injector drive signal can be adjusted.

8. Injection time can be setted.

9. Protection function of short-circuit.

10. Precise measurement, easy operation, low noise.

 0 ~1600 bar bosch eps200 FUNCTION

1. Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.

2. Test 1 piece of injector.

3. Test the pre-injection oil quantity of common rail injector.

4. Test the max. oil quantity of common rail injector.

5. Test the cranking oil quantity of common rail injector.

6. Test the backflow oil quantity of common rail injector.

7.Test the average oil quantity of common rail injector.

8. Test the seal performance of common rail injector.

9. Data can be searched and saved.

10. Clean the common rail injector.

1. Pulse width 0.1~20ms

2. Continuous injection time 0~1000

3. Fuel temperature 40±2°C

4. Rail high pressure 0~1600 bar

5. Test oil filtered precision 5μ

6. Input power 380V/50hz/3phase or 220V/60hz/3phase

7. Rotation speed 0~3000RPM

8. Oil tank capacity: :16L

9. Overall dimension(MM) 865×775×1430

10. Weight: 300KG.

1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;

STEP2,then we will make a PI for you to confirm all the order detail;

STEP3,after you confirmed all the detail,then you can arrange the payment;

STEP4,after we received the payment we will start the production and delivery for you.

2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,about 2-3 work days
For big product such as test bench or balancing machine takes about 7-10 work days.

3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.

4.Q: what is your after sale service?

A: One year warranty for our product, whole life technical support whole-life.

5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
Please for more information directly contact us we will give you the best option.
