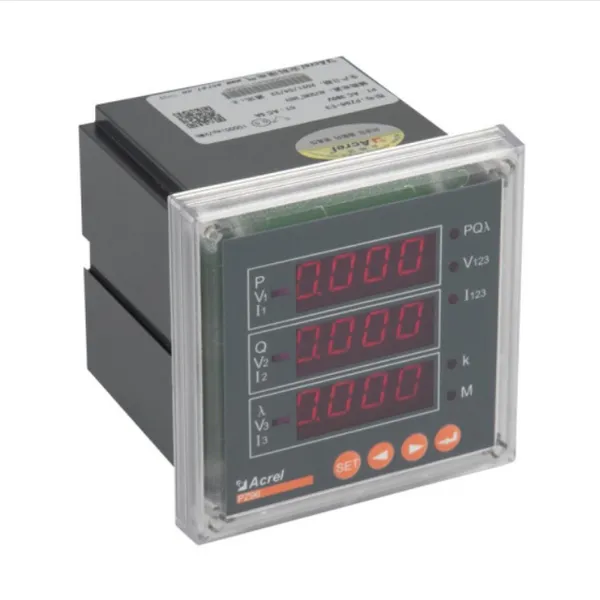

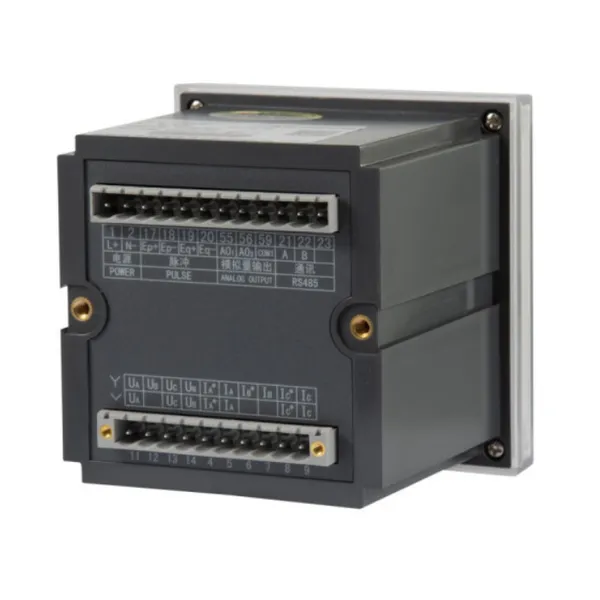

Acrel PZ96-AI3/JC ac Three Phase Led Programmable Digital Ampere Meter Optional Over Under Curret Alarm Rs485 Modbus

Name: Acrel PZ96-AI3/JC ac Three Phase Led Programmable Digital Ampere Meter Optional Over Under Curret Alarm Rs485 Modbus
Brand: ACREL
SKU: 165444493
Availability: InStock

Jiangsu Acrel Electrical Manufacturing CO.,LTD

Acrel PZ96-AI3/JC ac Three Phase Led Programmable Digital Ampere Meter Optional Over Under Curret Alarm Rs485 Modbus thumbnail-1

Acrel PZ96-AI3/JC ac Three Phase Led Programmable Digital Ampere Meter Optional Over Under Curret Alarm Rs485 Modbus thumbnail-2

Acrel PZ96-AI3/JC ac Three Phase Led Programmable Digital Ampere Meter Optional Over Under Curret Alarm Rs485 Modbus thumbnail-3

Acrel PZ96-AI3/JC ac Three Phase Led Programmable Digital Ampere Meter Optional Over Under Curret Alarm Rs485 Modbus thumbnail-4

Acrel PZ96-AI3/JC ac Three Phase Led Programmable Digital Ampere Meter Optional Over Under Curret Alarm Rs485 Modbus photo-1

Acrel PZ96-AI3/JC ac Three Phase Led Programmable Digital Ampere Meter Optional Over Under Curret Alarm Rs485 Modbus photo-2

Acrel PZ96-AI3/JC ac Three Phase Led Programmable Digital Ampere Meter Optional Over Under Curret Alarm Rs485 Modbus photo-3

Acrel PZ96-AI3/JC ac Three Phase Led Programmable Digital Ampere Meter Optional Over Under Curret Alarm Rs485 Modbus photo-4

US$ 99.4 - 99.4 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

ACREL

Place of Origin:

China

Model Number:

PZ96-AI3/JC

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

10 days

Product Details
Company Profile
Contact Us

Brand Name ACREL

Place of Origin China

Model Number PZ96-AI3/JC

Operating Temperature -10~55

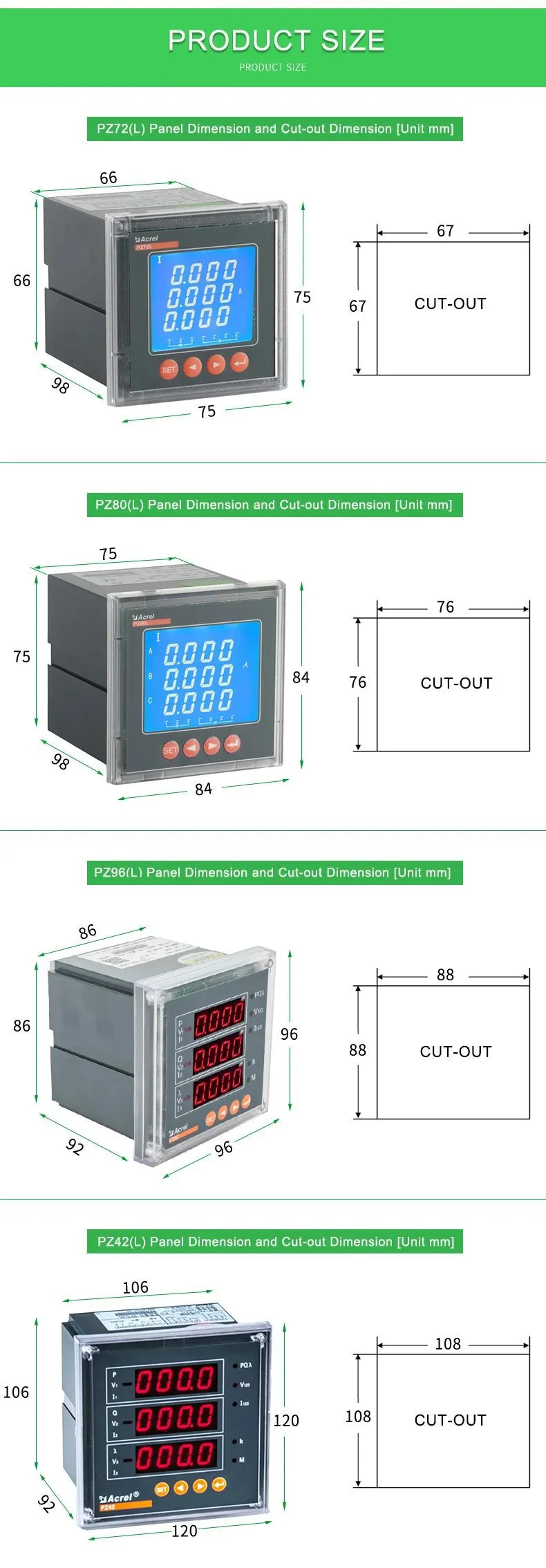

Dimensions 96*96mm

Measuring Voltage Range ~9999~+9999

Measuring Current Range 0-999999

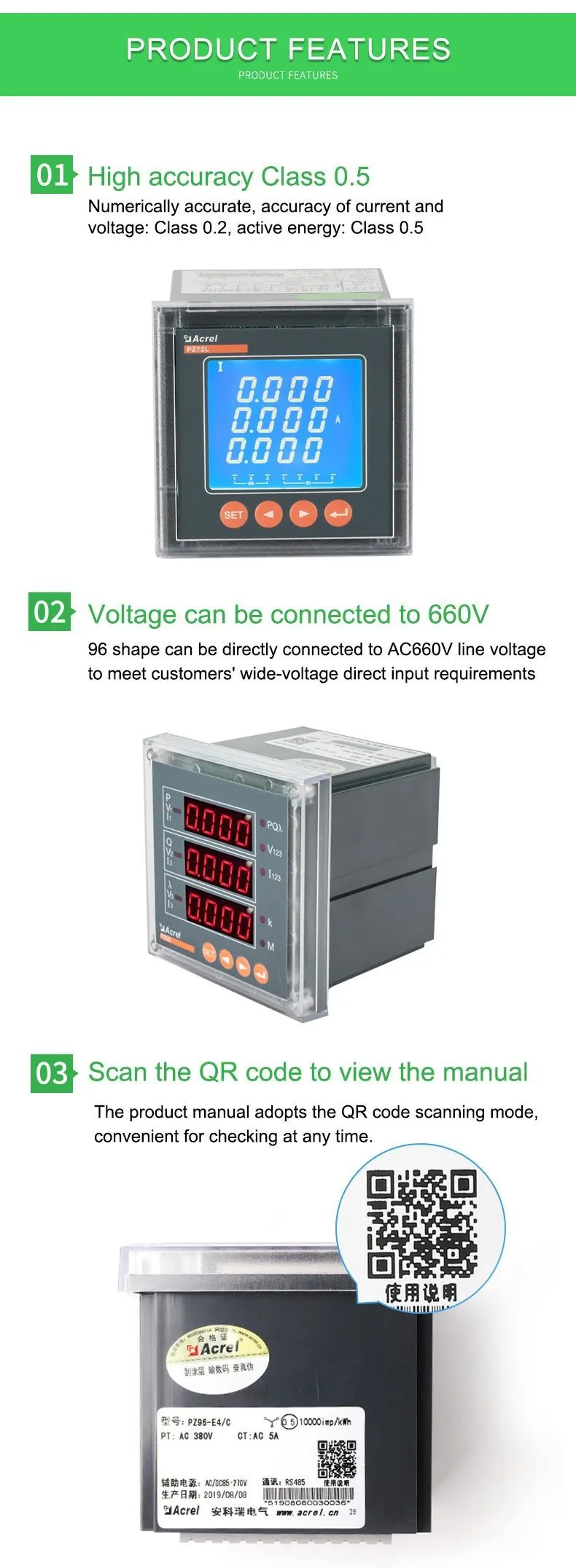

Accuracy Class 0.5

General

PZ Series electric energy meters, adopting AC sampling technology, can measure many three phase grid electrical parameters such as current, voltage, power, electric energy etc. directly or indirectly. It may be used for local display, and connected with the control equipment to form measuring and controlling system.

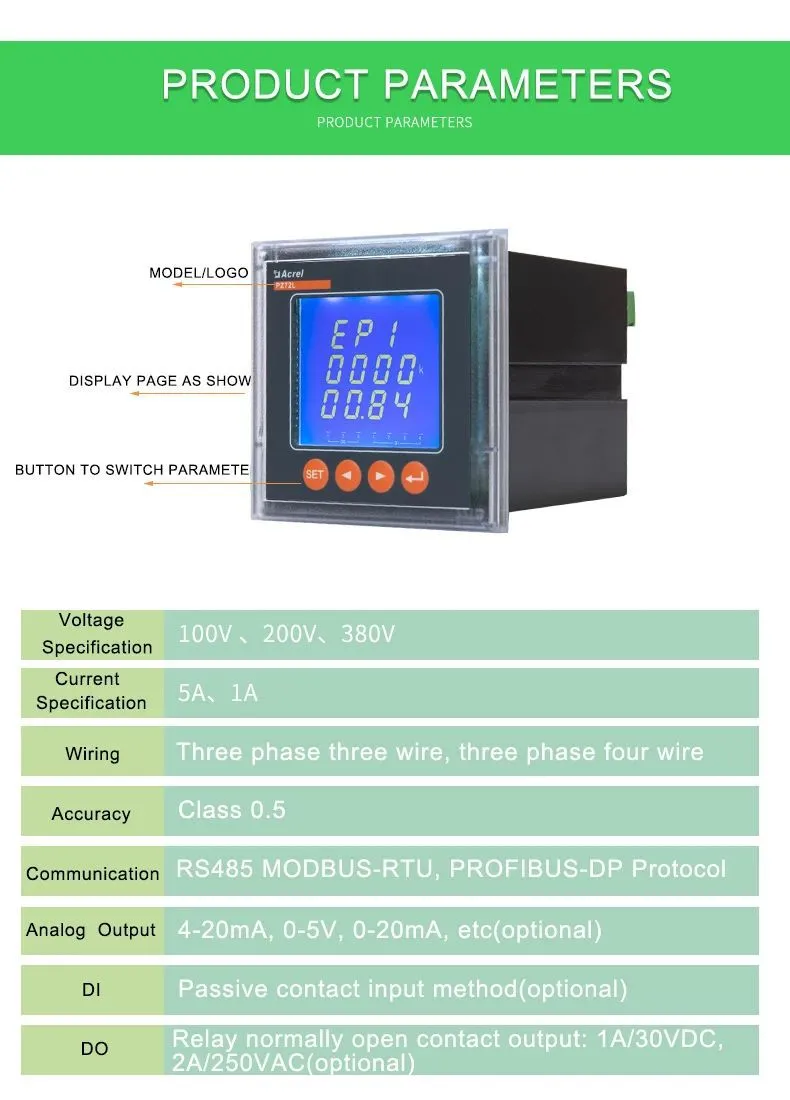

Parameters

Technical parameters		Value

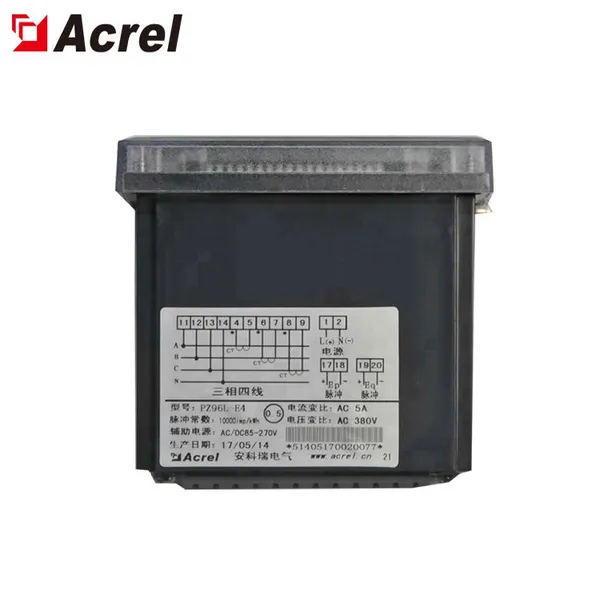

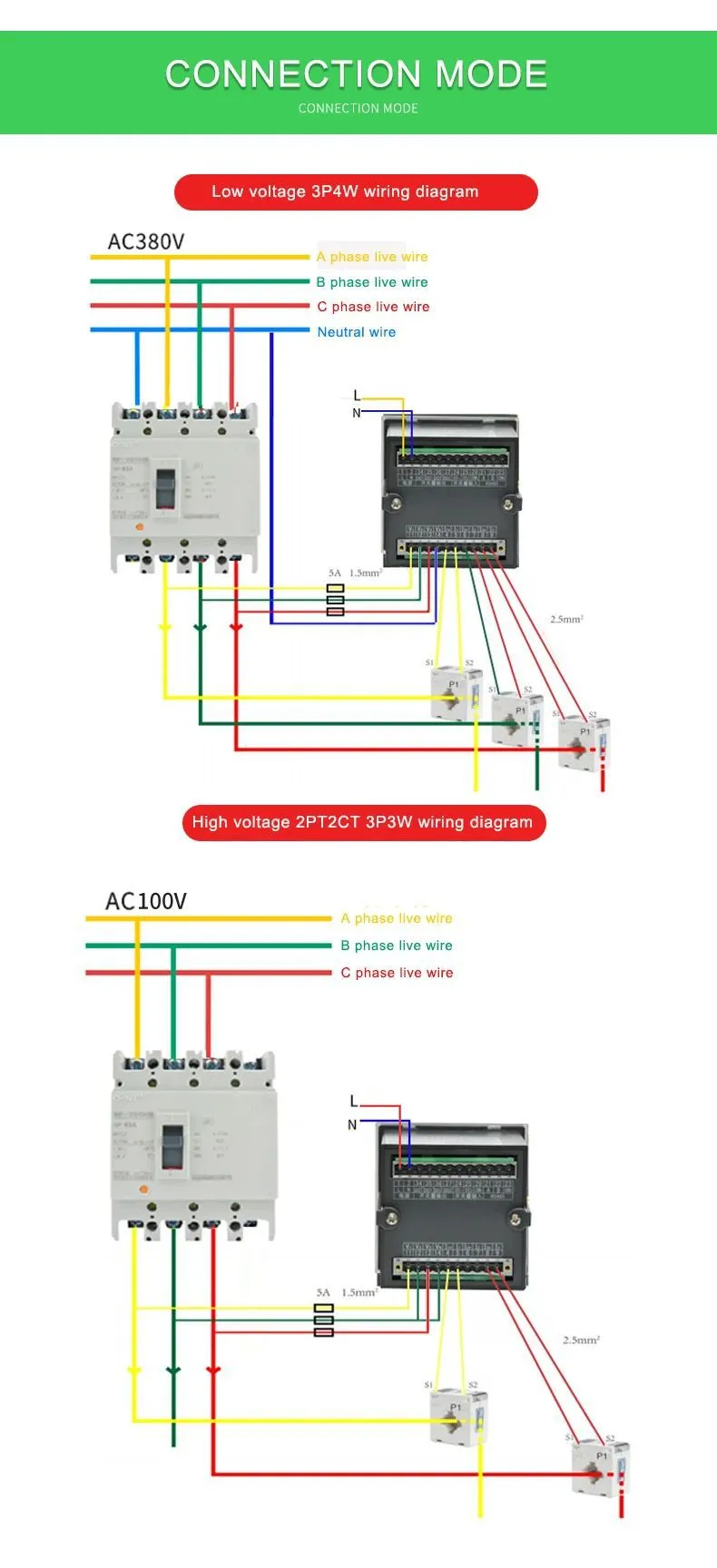

input	Connection	3-phase-3-wire, 3-phase-4-wire
	frequency	45-65HZ
	voltage	rating: AC 100V、400V
		overload： 1.2 fold rating {continuous) : 2 fold rating for 1 second
		power consumption ：<0.2VA
	current	Rating: AC IA、5A
		overload： 1.2 fold rating （continuous) ； 10fold rating for 1 second
		power consumption ：<0.2VA
output	electric energy	Output mode: 2 channel open-collector photo coupler pulse
		pulse constant: 10000 , 40000, 160000 imp/kWh

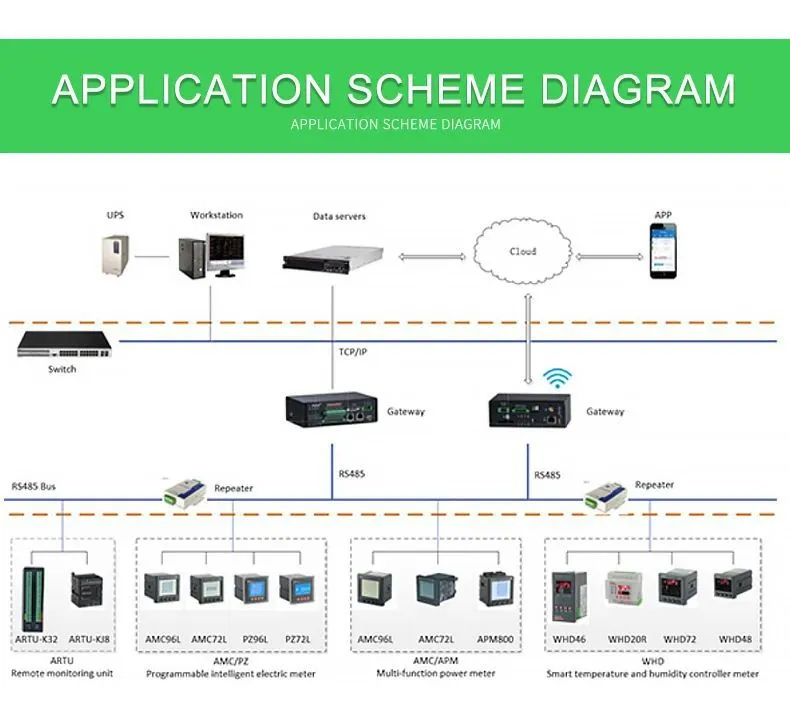

	communication	RS485port, Modbus -RTU protocol
	display	LED or LCD display, set multiplying power, alarm, switching indication at will;For 1 channel analog, display related programmable setting
function	Switching input	2channel or 4channel passive dry contact input mode
	Switching output	Output mode： 2 channel relay NO contact output
		contact capacity- 1A/30VDC 1A/250VAC
	Analog output	Output mode: 1, 2 or 4 channel Output, 0 - 20mA，4 - 20mA programmable
		load capacity≤500Ω
accuracy class		Frequency 0.05Hz, reactive electric energy 1 class, others 0.5class
power supply		DC100~350V;AV 85~265V; （In order to instrument wiring shall prevail ）	power consumption<5VA
Security		Equipment withstand voltage= power supply, voltage input circuit 2kVAC； power supply,current circuit 2.5kV/1min(RMS) Insulation resistance- input, output end to housing >100MΩ
