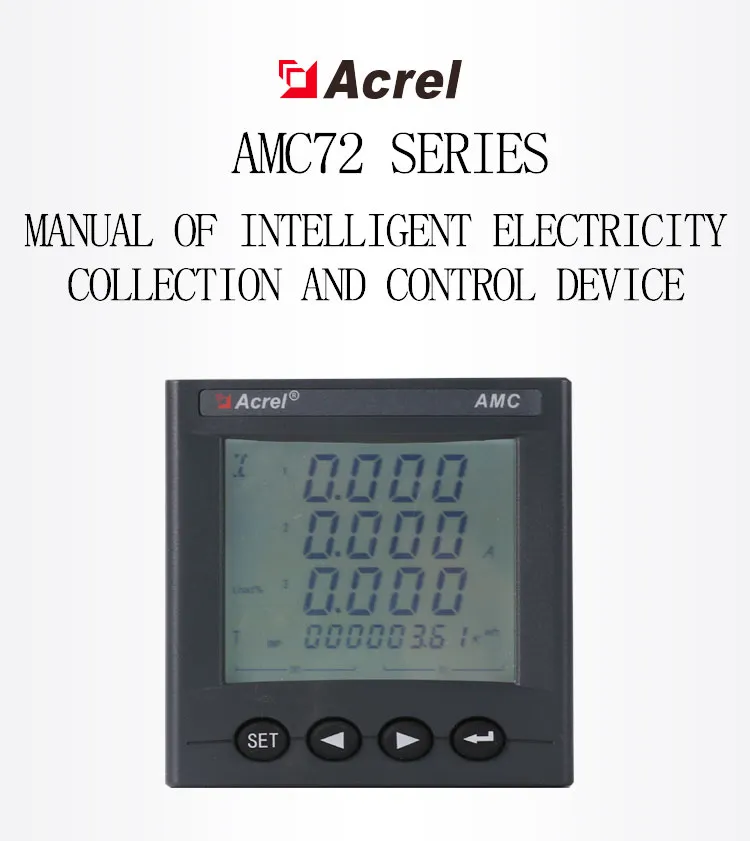

Acrel AMC72L-E4/KC 3 phase digital power meter

Name: Acrel AMC72L-E4/KC 3 phase digital power meter
Brand: Acrel
Price: USD $53 - 53 / Piece

FOB Price

USD $53 - $53 / Piece

1 Piece(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Acrel	Place of Origin:	China	Model Number:	AMC72L-E4/KC
Phase:	Three Phase	Output Voltage:	10~230V phase voltage	Operating Temperature:	-10℃~55℃
Dimensions:	757594.5	Display Type:	Other, LCD	Accuracy Class:	0.5 class
Measuring Energy Range:	0-9999

Packaging Details

It is packed in a crash bag and then put into a cardboard box.

Product Description

Function

Meter type	Meter type	Optional function	Co-selection function
AMC72-E4/KC AMC72L-E4/KC	Three phase voltage, Zero sequence voltage Three phase current, Zero sequence current Three phase active power, Total active power Three phase reactive power, Total reactive power Three phase apparent power, Total apparent power Three phase Power factor, Total power factor Frequency, Voltage phase angle, Voltage and current imbalance,Forward and reverse power Four quadrant energy metering,System time display 1 channel RS485 interface / Modbus-RTU protocol and the statute DLT645.	①2DI+2DO+1Ep(K) ②4DI+2DO(K) ③Event record (SOE) ④Total harmonic measurement (H)	①③④ ②③④
AMC96-E3/KC AMC96L-E3/KC		①4DI+2DO+1Ep(K) ②2DI+2DO+1Ep(K) ③Event record (SOE) ④2-31th harmonic measurement (H) ⑤2-channel analog output (M)	①③④ ②③④⑤
AMC96-E4/KC AMC96L-E4/KC
AMC72-E/KC AMC72L-E/KC	single-phase voltage，single-phase current active power, reactive power, apparent power Power factor Frequency Four quadrant energy metering,System time display 1 channel RS485 interface / Modbus-RTU protocol and the statute DLT645.	①2DI+2DO+1Ep（K） ②4DI+2DO（K）

Technical Parameters

Technical Parameters		Value
Input	Connection	Single phase-2 wire,3 phase-3 wire,3 phase 4-wire
	Frequency	45-65Hz
	Voltage	Rating: Single-phase:AC 100V、400V Three-phase:AC 3x57.7V/100V(100V)、3x220V/380V(400V) 3x380V/660V(660V)(96 size only) Note:72 profile not suitable for high voltage application
		Overload:1.2 fold rating(continuous):2 fold rating for 1 second
		Power consumption:＜0.5VA
	Current	Rating:AC 1A、5A
		Overload:1.2 fold rating(continuous):10 fold rating for 1 second
		Power consumption:＜0.5VA
Output	Electric energy	Output mode:open-collector photo-coupler pulse
	Electric energy	Pulse constant:10000imp/kWh(settable),see wiring diagram for details
	Communication	RS485 port,Modbus-RTU protocol,DLT645 protocol(versions 09 and 97),baud rate 1200-38400
Function	Switching input	Dry contact input,built-in power supply
	Switching output	Output mode:Relay normally open contact output
	Switching output	Contact capacity:AC 250V/3A、DC 30V/3A
	Analog output	1-5V,4-20mA
Accuracy Class		Frequency:0.05Hz,Current、Voltage;0.2 class,Reactive Power:1.0 class,Reactice Electric energy:1.0 class active Power:0.5 class,active electric energy:0.5 class,2-31th harmonic measurement:±1%
Power Supply		AC/DC 85-265V Power consumption≤10VA
Security	Power frequency withstand voltage	Between Power supply//Switching Output//Current input//voltage input and Transmitting//Communication//Pulse Output//switching input AC 2kV 1min; Between Power supply、switching output、Current input、voltage input AC 2kV 1min; Between Transmitting、Communication、Pulse Output、switching input AC 1kV 1 min;
Security	Insulation resistance	Input、Output end to machine enclosure＞100MΩ
Environment	Temperature	work:-25℃~+65℃ storage:-40℃~+80℃
	Humidity	≤93%RH Non-condensing
	Altitude	≤2500m

Outline and size

Instrument type	length	width	height
72 square	75	75	94.5
96 square	96	96	77.8
