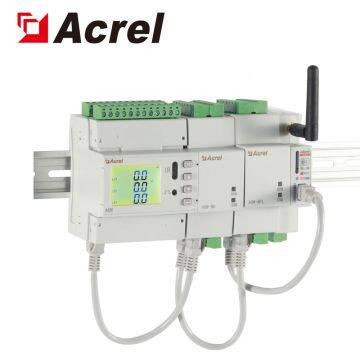

Acrel ADW210 Series LCD Display Multi-loop Energy Meters
US$ 273 - 273
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ADW210-D10-4S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel ADW210 Series LCD Display Multi Circuit Energy MetersUS$ 273 - 273MOQ: 1 Piece -
Acrel ADW210 Series LCD Display Multi Channel Energy MetersUS$ 273 - 273MOQ: 1 Piece
-
Acrel ADW210 Series LCD Display Multi-loop Power MetersUS$ 273 - 273MOQ: 1 Piece
-
Acrel ADW210-D10-4S Series LCD Display Multi Circuit Power Meters/iot Smart Energy MeterUS$ 273 - 273MOQ: 1 Piece
-
Acrel ADW210-D10-4S Series LCD Display Multi Channel Power Meters/three Phase Wireless Power Meter IOT With RS485US$ 273 - 273MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
ADW210-D10-4S
Phase
Three Phase
Output Voltage
380V
Operating Temperature
-25℃~55℃
Dimensions
71.5mm*72.2mm*97.7mm
Display Type
Analog and Digital
Accuracy Class
1.0 class
Measuring Energy Range
000000.00~999999.99kWh
Outline and size
Instrument type | length | width | height |
ADW200 | 71.5 | 72.2 | 97.7 |
ADW210 | 71.5 | 72.2 | 97.7 |
ADW220 | 71.5 | 72.2 | 97.7 |
Function
Measurement of all electric parameters of N(1,2,3,4) channels three-phase circuit.
Current transformer external.
1.Three pahse voltage, current, zero-sequence current, frequency;
2.Three phase power, total power(active, reactive, apparent);
3.Voltage and current phase angle, voltage and current imbalance.
4.Voltage, current total harmonic and 2nd-31st harmonic ;
5.Record of extreme values of voltage, current and power in current month and last month;
6.Maximum current, power demand and real-time current, power demand;
7.200 event records, recording the action of DI/DI, Support over-voltage, over-current, phase failure, Di linkage and other alarm output;
8.The rate of 4 time zones and 14times piriods can be set;
9.Four quadrant electric energy, 12-month multi rate electric energy statistics;
10.31 days four quadrant and multi rate electric energy freezing;
11.Active energy Class 1.0, and reactive electric energy Class 2.0;
12.Standard function : 2DI/DO, RS485, 1 way active pulse output (corresponding circuit can be switched)
