Home > Products > IOT Wireless Energy Meter > Acrel ADW210 series multi circuit energy meters

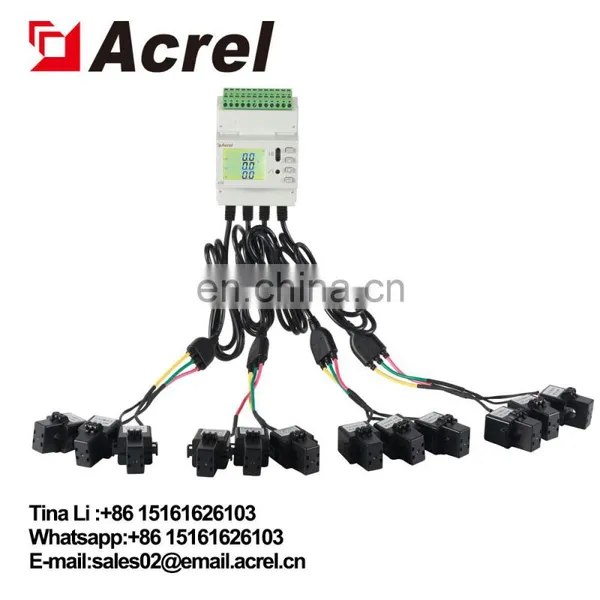

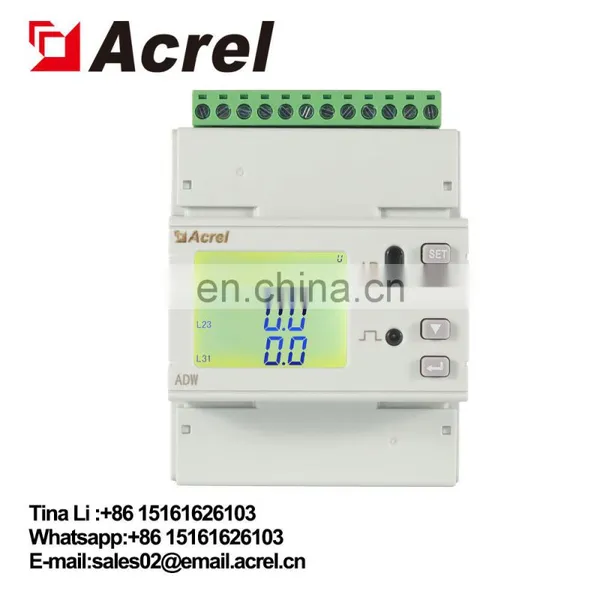

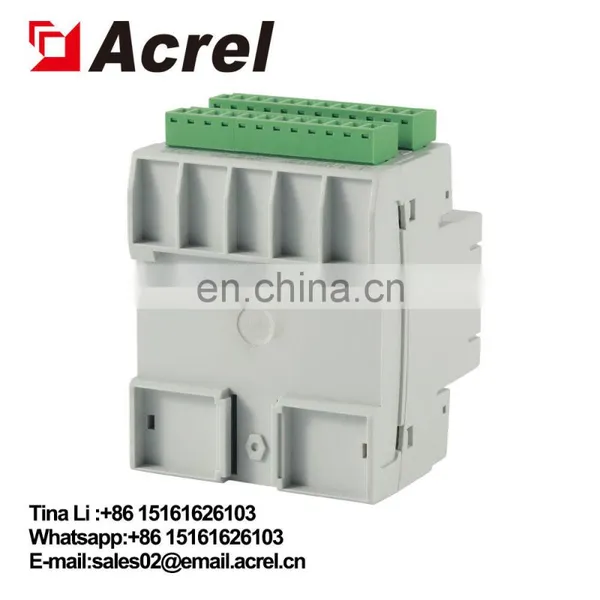

Acrel ADW210 series multi circuit energy meters

Name: Acrel ADW210 series multi circuit energy meters
Brand: Acrel
Availability: InStock

FOB Price

USD $273 - $273 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Outline and size

Measurement of all electric parameters of N(1,2,3,4) channels three-phase circuit.

Current transformer external.

1.Three pahse voltage, current, zero-sequence current, frequency;

2.Three phase power, total power(active, reactive, apparent);

3.Voltage and current phase angle, voltage and current imbalance.

4.Voltage, current total harmonic and 2nd-31st harmonic ;

5.Record of extreme values of voltage, current and power in current month and last month;

6.Maximum current, power demand and real-time current, power demand;

7.200 event records, recording the action of DI/DI, Support over-voltage, over-current, phase failure, Di linkage and other alarm output;

8.The rate of 4 time zones and 14times piriods can be set;

9.Four quadrant electric energy, 12-month multi rate electric energy statistics;

10.31 days four quadrant and multi rate electric energy freezing;

11.Active energy Class 1.0, and reactive electric energy Class 2.0;

12.Standard function : 2DI/DO, RS485, 1 way active pulse output (corresponding circuit can be switched)
