Acrel ADW210-D16-4S Multi Channel Meter for Gsm Electricity Monitor

Acrel ADW210-D16-4S Multi Channel Meter for Gsm Electricity Monitor thumbnail-1
Acrel ADW210-D16-4S Multi Channel Meter for Gsm Electricity Monitor thumbnail-2
Acrel ADW210-D16-4S Multi Channel Meter for Gsm Electricity Monitor thumbnail-3
Acrel ADW210-D16-4S Multi Channel Meter for Gsm Electricity Monitor thumbnail-4
Acrel ADW210-D16-4S Multi Channel Meter for Gsm Electricity Monitor thumbnail-5
Acrel ADW210-D16-4S Multi Channel Meter for Gsm Electricity Monitor photo-1
Acrel ADW210-D16-4S Multi Channel Meter for Gsm Electricity Monitor photo-2
Acrel ADW210-D16-4S Multi Channel Meter for Gsm Electricity Monitor photo-3

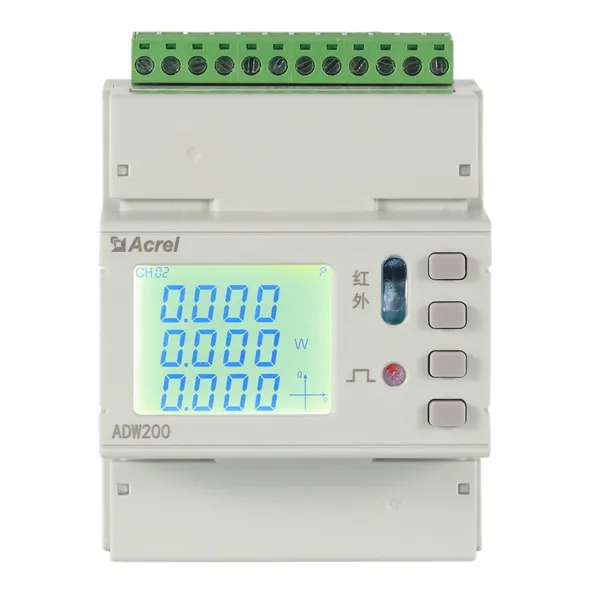

Acrel ADW210-D16-4S Multi Channel Meter for Gsm Electricity Monitor photo-4
Acrel ADW210-D16-4S Multi Channel Meter for Gsm Electricity Monitor photo-5
US$ 291 - 291 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ADW210
Contact Supplier Request Quote Chat Now
Jiangsu Acrel Electrical Manufacturing CO.,LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Acrel
Place of Origin China
Model Number ADW210
Phase Three Phase
Output Voltage 380V
Operating Temperature -20℃~+55℃
Dimensions 88*54mm
Display Type Analog Only
Accuracy Class Class 1
Measuring Energy Range 0-99999KWH

General
         ADW210 series multi-loop power meter is mainly used for the measurement of all electric parameters of three-phase circuit.Colleagues can select the current input of the maximum four circuits. ADW2XX series products are connected by split core current transformer, easy to install on site, and realize remote wireless communication through wireless communication module.

                             Parameters

Auxiliary power
AC/DC 85～265V; Consumption≤10VA;


Input
Frequency
45～65Hz;
Voltage
AC 3×220V/380V; Overload: 1.2 times of rated value (continuous);
2 times of rated value / 1s; Power consumption: ≤ 0.5VA;
Current
AC 5A、100A、400A、600A;(External opening transformer); Power consumption: ≤ 0.5VA;
Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s;
Measurement accuracy
Frequency 0.05Hz, voltage、current Class 0.5; 2-31st harmonic accuracy: ± 1%;
Active electric energy level 1, reactive electric energy level 2;


Features
Pulse output
Output mode: optocoupler pulse with open collector;
Communication
RS485、Modbus-RTU; Baud rate 1200～38400;
Switching Input
Dry contact input、Built in power supply;
Switching Output
Output mode: Relay normally open contact output; contact rating: AC 250V/3A DC 30V/3A;
