Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > Acrel Multi Circuit Power Meters ADW210-D16-3S

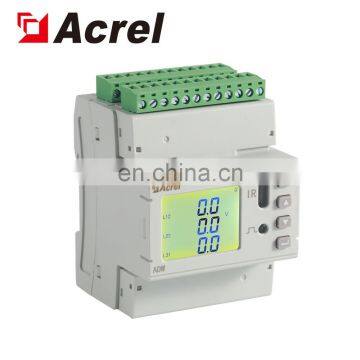

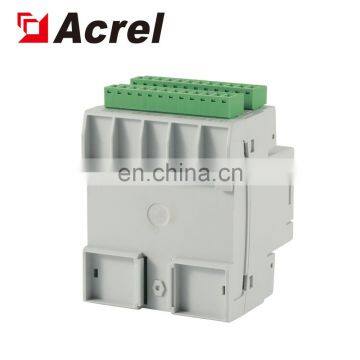

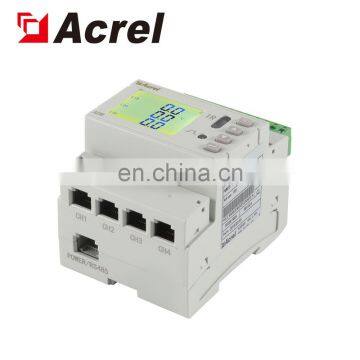

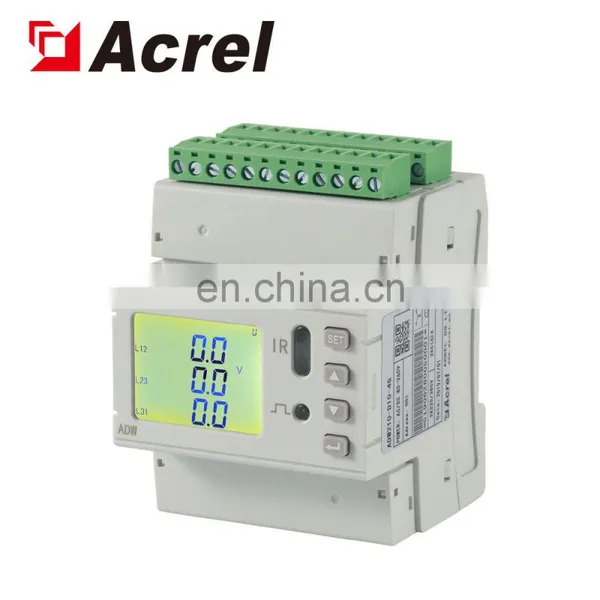

Acrel Multi Circuit Power Meters ADW210-D16-3S
US$ 249 - 249
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
ADW210-D16-3S
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel Din Rail Multi Channel Energy Meters ADW210-D10-3SUS$ 238 - 238MOQ: 1 Piece -
Acrel Din Rail Multi Channel Power Meters ADW210-D10-2SUS$ 192 - 192MOQ: 1 Piece
-
Acrel 3P4W Din Rail Multi-loop Energy Meters ADW210-D16-4SUS$ 300.3 - 300.3MOQ: 1 Piece
-
Acrel Multi-loop Energy Meters ADW210-D10-2S ACREL Factory Direct.SZUS$ 192 - 192MOQ: 1 Piece
-
ADW210-D10-4S 3p4w Din Rail Multi Circuit Energy Meters ACREL Factory Direct.SZUS$ 285 - 285MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
ADW210-D16-3S
Phase
Three Phase
Output Voltage
380V
Operating Temperature
-25℃~55℃
Dimensions
71.5mm*72.2mm*97.7mm
Accuracy Class
1.0 class
Measuring Energy Range
000000.00~999999.99kWh
Outline and size
Instrument type |
length |
width |
height |
ADW200 |
71.5 |
72.2 |
97.7 |
ADW210 |
71.5 |
72.2 |
97.7 |
ADW220 |
71.5 |
72.2 |
97.7 |
Function
Measurement of all electric parameters of N(1,2,3,4) channels three-phase circuit.

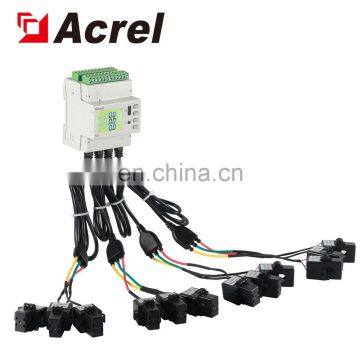

Current transformer external.
1.Three pahse voltage, current, zero-sequence current, frequency;
2.Three phase power, total power(active, reactive, apparent);
3.Voltage and current phase angle, voltage and current imbalance.
4.Voltage, current total harmonic and 2nd-31st harmonic ;
5.Record of extreme values of voltage, current and power in current month and last month;
6.Maximum current, power demand and real-time current, power demand;
7.200 event records, recording the action of DI/DI, Support over-voltage, over-current, phase failure, Di linkage and other alarm output;
8.The rate of 4 time zones and 14times piriods can be set;
9.Four quadrant electric energy, 12-month multi rate electric energy statistics;
10.31 days four quadrant and multi rate electric energy freezing;
11.Active energy Class 1.0, and reactive electric energy Class 2.0;
12.Standard function : 2DI/DO, RS485, 1 way active pulse output (corresponding circuit can be switched)
