Acrel 300286 Medical IT System Regulated Power Supply ACLP10-24
US$ 30.8 - 30.8
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
ACLP10-24
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel 300286 Hospital Isolated Electrical Power Supply System dc Stable Voltage Power Supply ACLP10-24US$ 30.8 - 30.8MOQ: 1 Piece -
Acrel 300286 AIM-M10 Hospital Isolated Power Supply IPS Insulation Monitoring Device for Medical IT Insulation SystemUS$ 1,243.9 - 1,243.9MOQ: 1 Piece
-
Acrel 300286 Hopital Medical IT Insulation Power Supply IPS System Insulation Monitor AIM-M10US$ 1,243.9 - 1,243.9MOQ: 1 Piece
-
Acrel 300286 Healthcare Medical IT IPS System Insulation Monitoring Instrument AIM-M10US$ 1,243.9 - 1,243.9MOQ: 1 Piece
-
Acrel 300286 AIM-M10 With CE Approval Medical IT Isolated Power Supply System Insulation Monitoring DeviceUS$ 1,243.9 - 1,243.9MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
ACLP10-24
Output Type
Multiple
Output Frequency
50/60 HZ
Output Voltage
24V
Product Description
General
Hospital isolated electrical power supply dc stabilized voltage supply
The medical hospital isolated power supply system is mainly used in important Class 2 medical locations such as operating rooms,
ICU/CCU intensive care unit, providing safe, reliable and continuous power distribution for the important equipment at these
locations.
Medical IT system insulation monitoring and fault locating products (five-piece set) include AITR series medical
isolation transformer, AIM-M100 medical intelligent insulation monitoring instrument, AKH-0.66P26 current
transformer, ACLP10-24 DC power supply, and AID series(AID100,AID120,AID130,AID150) centralized alarm
and display instrument,
The medical hospital isolated power supply system is mainly used in important Class 2 medical locations such as operating rooms,
ICU/CCU intensive care unit, providing safe, reliable and continuous power distribution for the important equipment at these
locations.
Medical IT system insulation monitoring and fault locating products (five-piece set) include AITR series medical
isolation transformer, AIM-M100 medical intelligent insulation monitoring instrument, AKH-0.66P26 current
transformer, ACLP10-24 DC power supply, and AID series(AID100,AID120,AID130,AID150) centralized alarm
and display instrument,
Features
● The power supply module is designed to supply AID series alarm and display instrument. ● The output supply voltage is DC 24V
with a total power consumption of maximum 3 VA.
● A maximum of 3 AID10/AID120/AID150 can be supplied.
● The power supply module is designed to supply AID series alarm and display instrument.
● The output supply voltage is DC 24V with a total power consumption of maximum 3 VA.
● A maximum of 3 AID10/AID120/AID150 can be supplied.

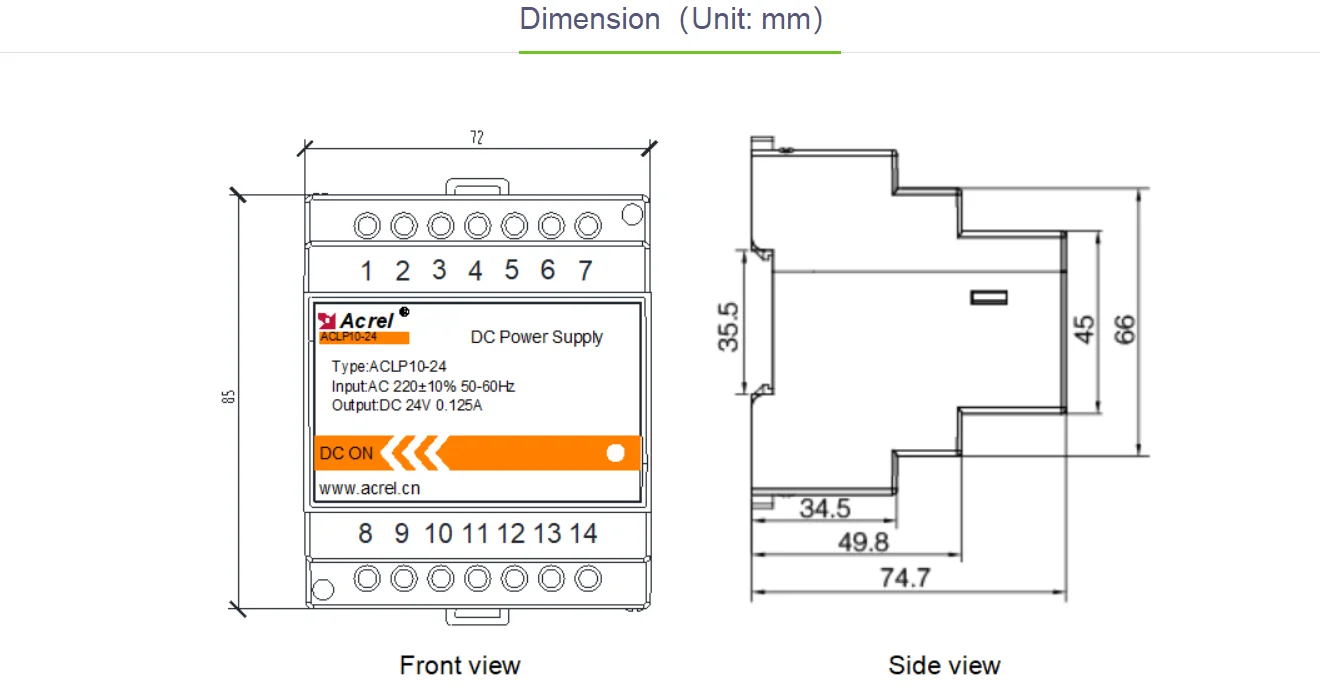

Dimension

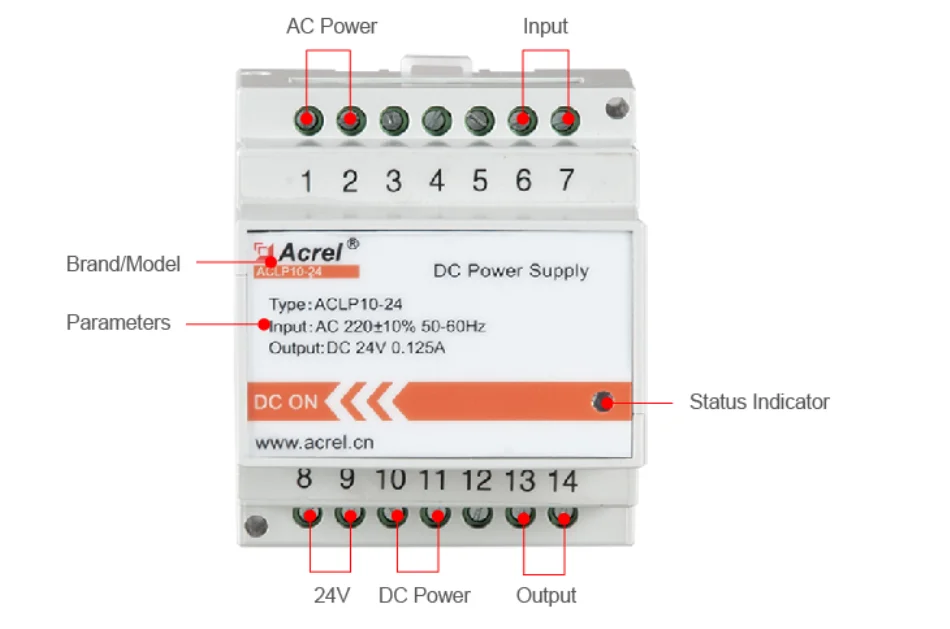

Wiring

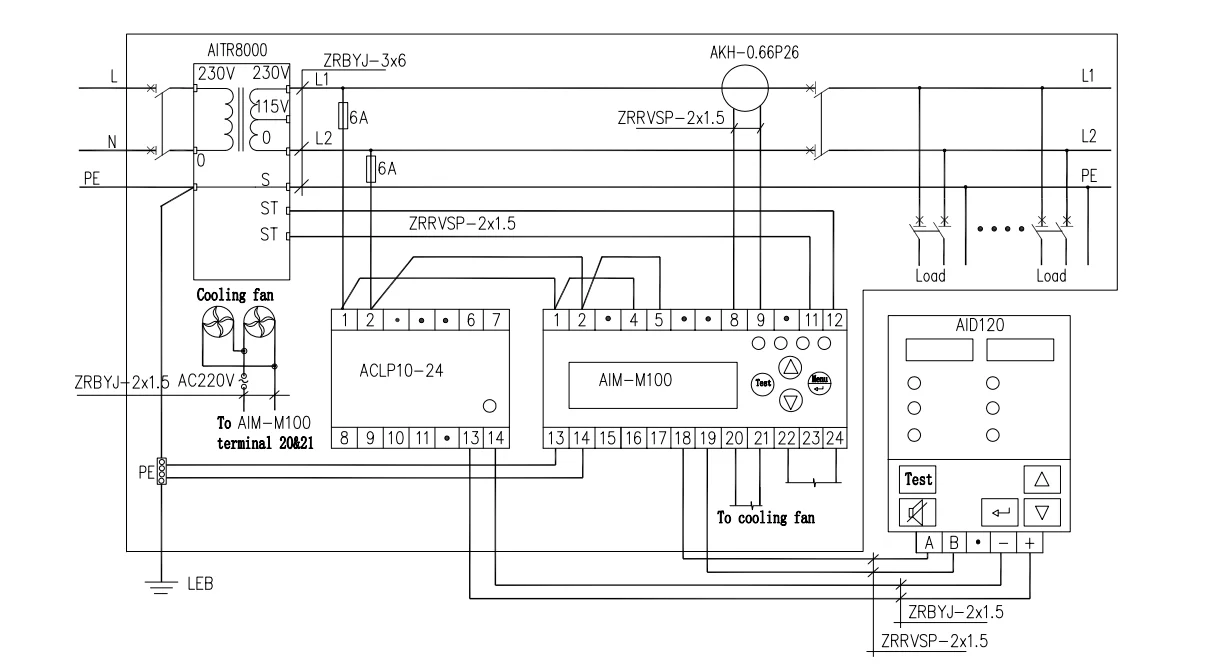

Typical connnection
Techinical Parameter
Input voltage | AC 220V(fluctuating range±10%) |
Frequency | 50/60Hz |
Power | 3W |
Output voltage | DC 24V±5% |
Voltage regulation factor | ≤30% |
Temperature rise | ≤20℃ |
Dielectric intensity | 4000V AC/minute |
