Acrel ASJ10-LD1A Protection Din Rail Smart Digital Earth Leakage Relay
US$ 112 - 112
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ASJ10-LD1A
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1 Channel A Type Residual Current Measurement Rail Mounting Earth Leakage RelayUS$ 112 - 112MOQ: 1 Piece -
Acrel ASJ10-LD1A Rail Mounting Smart Earth Leakage Relay in Low VoltageUS$ 112 - 112MOQ: 1 Piece
-
Earth Leakage Relay With Three Kinds Reset Mode Acrel ASJ10-LD1AUS$ 112 - 112MOQ: 1 Piece
-
Acrel Rail Mounting Earth Leakage Relay With Local Remote Test FunctionUS$ 112 - 112MOQ: 1 Piece
-
Acrel Earth Leakage Relay With 2 Kinds of Output ASJ10-LD1AUS$ 112 - 112MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
ASJ10-LD1A
Size
Miniature
Usage
Protective
Contact Load
Low Power
Protect Feature
Sealed
Theory
Solid State Relay
General
ASJ series earth leakage relays associated with a remote trip breaking device(automatic power breaking),provide the following functions:
protection against indirect contact.
limitation of leakage currents.
Type Aearth leakage detection and power supplybreaking.
Fully configurable:
2 relays with configurable function(alarm or pre-alarm at 50% IΔn).
Adjustment of IΔn from 0.03 to 30 A.
Time delay 0 to 10 s.
Positive or negative security configurableby the user.
Selection of toroid ratio.
Tripping accuracy by TRMS measurement:
Improves immunity to nuisance tripping.
Instantaneous display of permanentleakage currents:
The LED bargraph provides a real-time displayof fluctuations in leakage currents.

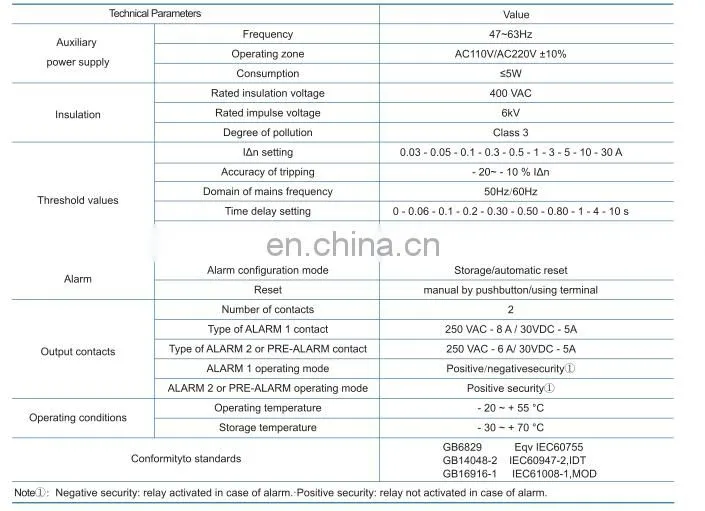

Technical features

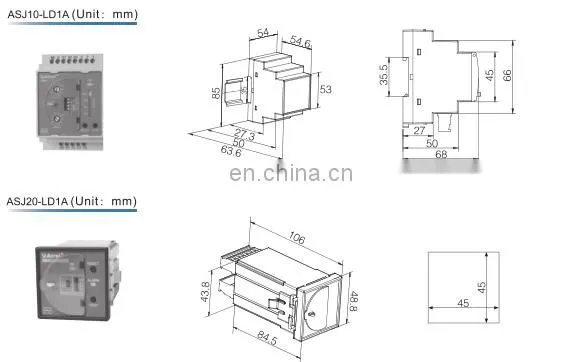

Dimension

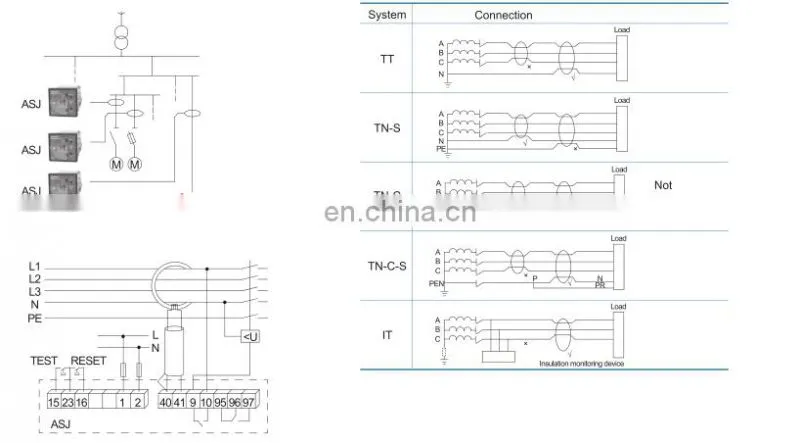

Typical application
Type
Details
