Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > ACREL 300286 PZ72L-DE/C DC Intelligent Power Meter for Solar PV System or Telecom Station With Rs485 Lcd Display

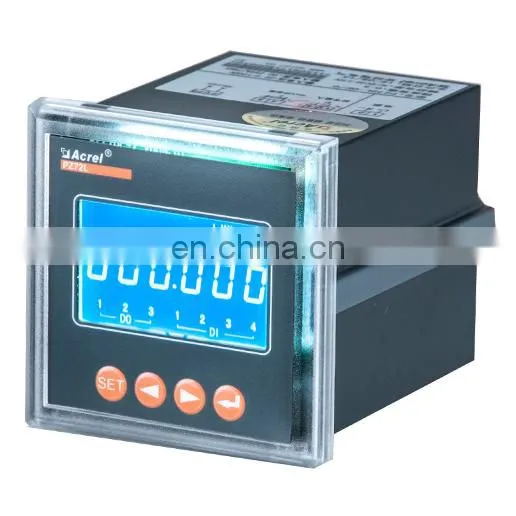

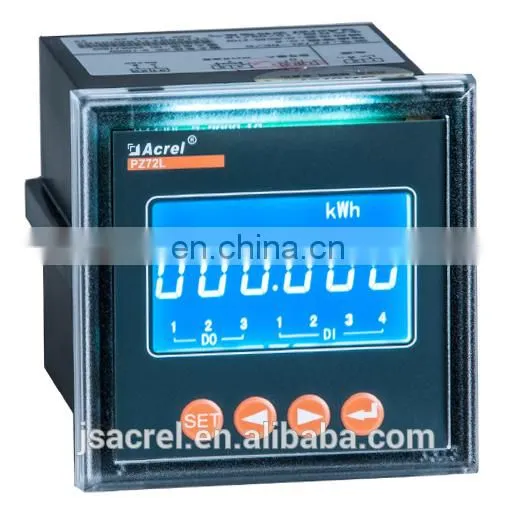

ACREL 300286 PZ72L-DE/C DC Intelligent Power Meter for Solar PV System or Telecom Station With Rs485 Lcd Display
US$ 97.3 - 97.3
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ACREL
Model Number:
PZ72L-DE/C
Operating Temperature:
-10~55
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ACREL 300286 PZ72L-DE DC Intelligent Digital Lcd Display Power Meter for DC PanelUS$ 91 - 91MOQ: 1 Piece -
ACREL PZ72L-DE/K DC Digital Power Factor Meter Measure U I P KWH With 2DI/2DO Lcd DisplayUS$ 95.2 - 95.2MOQ: 1 Piece
-
ACREL PZ72-DI/C DC Digital Panel Meter for Solar PV System or Telecom Station With Rs485 Led DisplayUS$ 63 - 63MOQ: 1 Piece
-
ACREL PZ72L-DE/C DC Smart Digital Power Meter for DC Panel With Rs485 Lcd DisplayUS$ 97.3 - 97.3MOQ: 1 Piece
-
ACREL PZ72L-DE/KC 2DI/2DO RS485 Modbus DC Intelligent Programmable Digital Led Display Power Meter for DC PanelUS$ 101.5 - 101.5MOQ: 1 Piece
Brand Name
ACREL
Model Number
PZ72L-DE/C
Operating Temperature
-10~55
Dimensions
75*75
Measuring Voltage Range
0-1000V
Measuring Current Range
0-1000A
Accuracy Class
1
General
PZ series DC analyzer is designed for application in GZDW,solar power supply,telecom station .It can measure voltage,current,power,forward and reverse energies of DC network.It can be used for local display and connected with the control equipment to regroup measuring and controlling system.
It can be equipped RS485 communication under Modbus-RTU protocol,and it has options of analog output,relay alarm,digital input/output. According to different request,meter’s parameters can be set by 4 keys on its faceplate.
