Acrel ASL100-T2/BM KNX Human Movement Sensor for Smart Home
US$ 132 - 132
MOQ: 1 Acre
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ASL
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel ASL100-DI4/20 KNX Dry Contact Smart Lighting ModuleUS$ 111 - 111MOQ: 1 Acre -
Acrel ASL100-T2/BM KNX Lighting Sensor for Smart HomeUS$ 132 - 132MOQ: 1 Acre
-
Acrel AMZ16Z-FAK48 48 Circuit Current Voltage Modbus Multi Circuit Power MeterUS$ 187 - 187MOQ: 1 Piece
-
Acrel AMZ16Z-FAK24 24 Circuit Current Voltage Modbus Multi-circuit Monitoring DeviceUS$ 125 - 125MOQ: 1 Piece
-
Acrel AMZ16Z-FA 24 Circuit Modbus Multi-circuit Monitoring DeviceUS$ 82.6 - 82.6MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
ASL
Product Description
1. Overview
ASL100-T2/BM two-in-one sensor (hereinafter referred to as sensor) is the illumination and human body movement two-in-one sensor based on Acrel-bus intelligent control system. The module is developed by Acrel and conforms to the rules of the enterprise standard Q31/0114000129C032-2017 ASL100 Intelligent Lighting Control System. European KNX communication bus is adopted and illumination is acquired in real time. When the illumination is more than and (or) less than the threshold of the parameter setting, the sensor will send the corresponding command according to the parameter setting. After the human body movement sensor detects the human activity, the sensor will send the corresponding control signal according to the parameter setting. In the intelligent control system, other control modules will match the sensor to achieve the intelligent control of illumination, fan and air conditioner. The module uses the latest single-chip microcomputer technology and is highly stable and reliable.

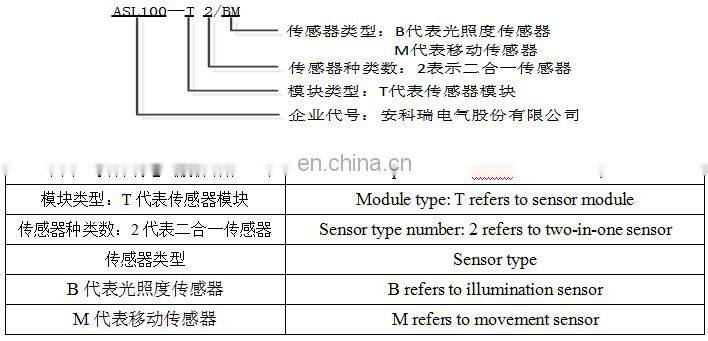

2. Specification and model
3. Technical parameters
Power supply feature | KNX bus feeder | DC21~30V |
Power supply current | <12mA | |
Power consumption | <360mW | |
External connection | KNX-TP1 | Use twisted-pair cable conforming to KNX standard |
Wiring terminal at load end | Terminating with 0.5nm~0.6nm torque | |
Operation and display interface | Programming key and relevant indicator | LED indicator is in red when waiting for programming and is in green during and after programming. |
Temperature range | Operating temperature | -5℃~+45℃ |
Storage temperature | -25℃~+55℃ | |
Transport temperature | -30℃~+70℃ | |
Environmental requirements | Maximum air humidity | 95% |

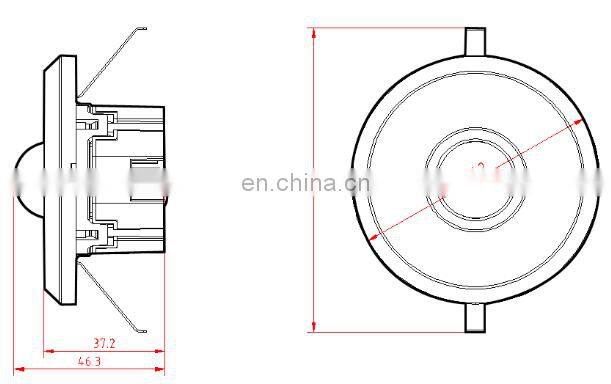

Mechanical parameters | Dimension (mm) | 36x90x62 |
Installation | Embedded installation | |
4. Configuration
Installation notes: the product is easy to install and is embedded. The installation hole size of the sensor is ψ58mm.
During installation, the product is fixed by the leaf springs on both sides. KNX bus is connected by the bus terminal and other modules.

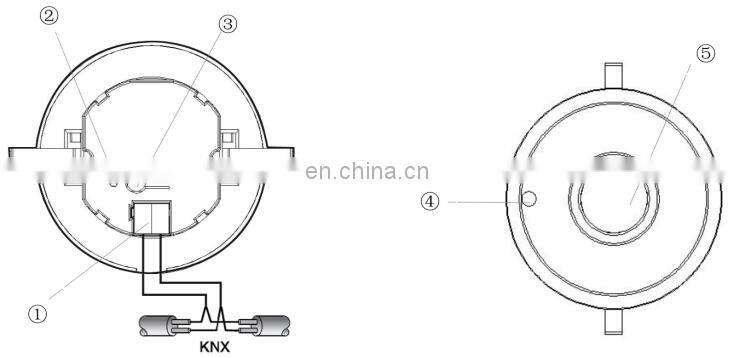

5.Electric wiring diagram
KNX bus terminal
Running and programming indicator
Programming key
Illumination sensor
Human body movement sensor
