1. Overview

ASL100-T2/BM two-in-one sensor (hereinafter referred to as sensor) is the illumination and human body movement two-in-one sensor based on Acrel-bus intelligent control system. The module is developed by Acrel and conforms to the rules of the enterprise standard Q31/0114000129C032-2017 ASL100 Intelligent Lighting Control System. European KNX communication bus is adopted and illumination is acquired in real time. When the illumination is more than and (or) less than the threshold of the parameter setting, the sensor will send the corresponding command according to the parameter setting. After the human body movement sensor detects the human activity, the sensor will send the corresponding control signal according to the parameter setting. In the intelligent control system, other control modules will match the sensor to achieve the intelligent control of illumination, fan and air conditioner. The module uses the latest single-chip microcomputer technology and is highly stable and reliable.

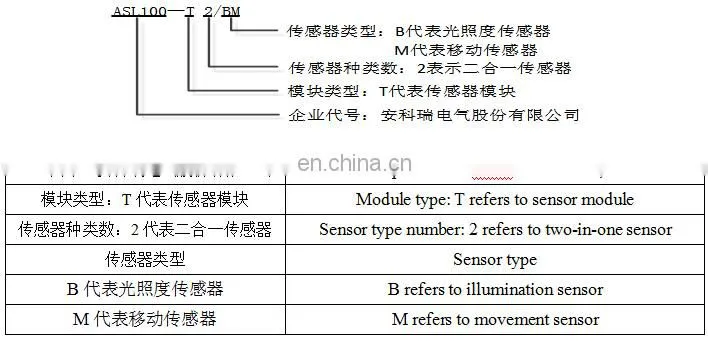

2. Specification and model

3. Technical parameters

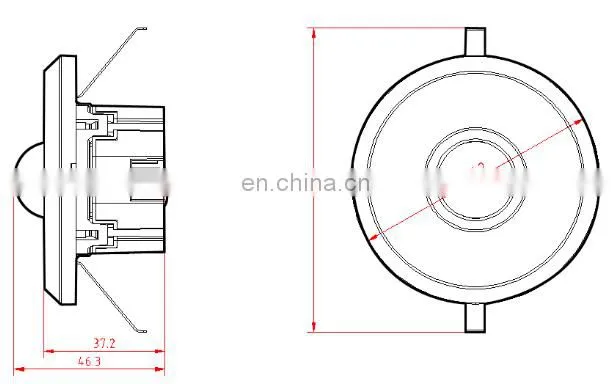

4. Configuration

Installation notes: the product is easy to install and is embedded. The installation hole size of the sensor is ψ58mm.

During installation, the product is fixed by the leaf springs on both sides. KNX bus is connected by the bus terminal and other modules.

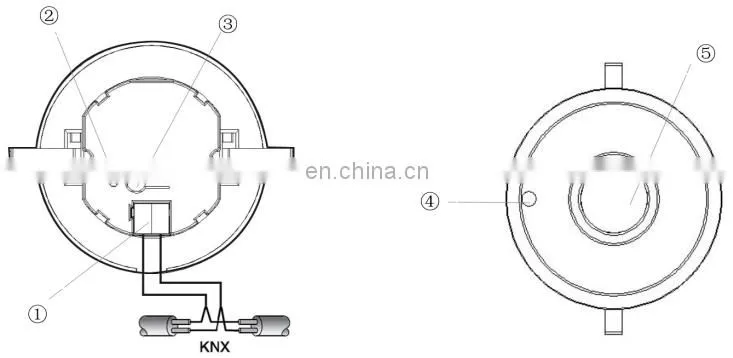

5.Electric wiring diagram

 KNX bus terminal

 Running and programming indicator

 Programming key

 Illumination sensor

 Human body movement sensor
