Home > Lights & Lighting > Lighting Fixtures > Dimmer > Acrel ASL100-TD2/5 KNX Smart Lighting SCR Dimming Driver
Acrel ASL100-TD2/5 KNX Smart Lighting SCR Dimming Driver
US$ 244 - 244
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ACREL
Place of Origin:
China
Type:
Remote Control, Dimmable Led Driver
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel ASL100-S2/16 KNX System 2 Channel Smart Lighting DriverUS$ 112 - 112MOQ: 1 Piece -
Acrel 300286 ASL100-F4/8 KNX 8 Key Smart Lighting SwitchUS$ 133 - 133MOQ: 1 Piece
-
Acrel ASL100-S2/16 KNX System Smart Lighting DriverUS$ 112 - 112MOQ: 1 Piece
-
Acrel ASL100-F1/2 KNX Smart Lighting Switch PanelUS$ 89 - 89MOQ: 1 Piece
-
Acrel ASL100-F2/4 KNX Smart Lighting SwitchUS$ 111 - 111MOQ: 1 Piece
Brand Name
ACREL
Place of Origin
China
Max. Load Power
100~250
Product Description
1. Overview
ASL100-TD2/5 silicon controlled dimming driver (hereinafter referred to as dimmer) is the dimming module of Acrel-bus intelligent control system. European KNX communication bus is adopted to achieve intelligent lighting control of large buildings and public buildings. The latest single-chip microcomputer technology is adopted by the dimmer. The dimmer is the intelligent control module with high stability and reliability and matches other control modules, such as smart panel and dry node, to achieve the intelligence of lighting control. The dimmer dims LED by directly controlling high voltage part. 30V DC voltage is used for module power supply at the communication end and is used for system communication

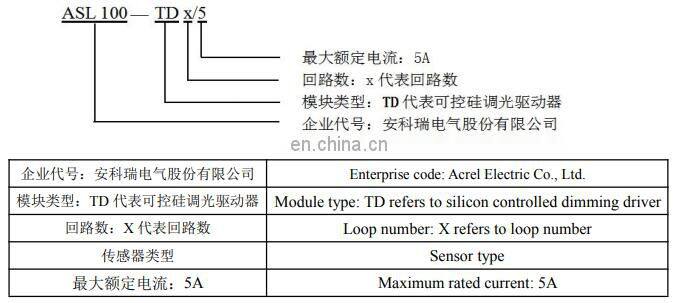

2. Specification and model

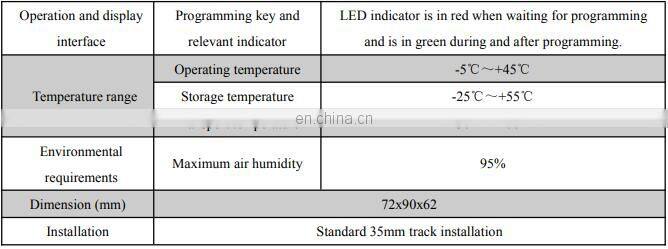

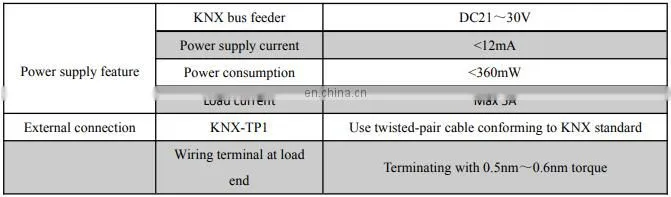

3. Technical parameters

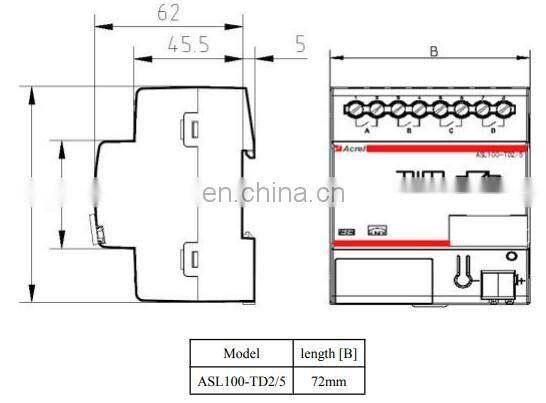

4. Configuration
Installation notes: the module is applicable to 35mm track installation. It is ok to clamp the dimer into the track. The output terminal is connected with the load and KNX bus is connected with other modules by the bus terminal.

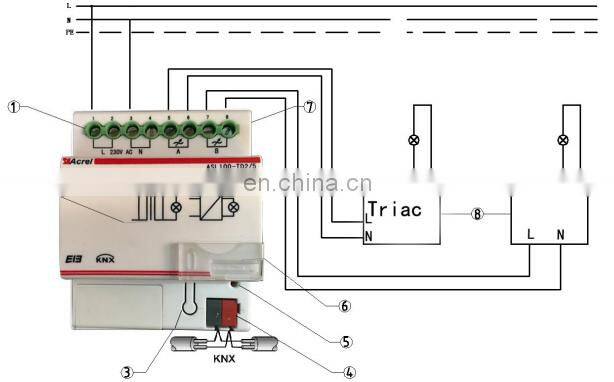

5. Electric wiring diagram
Mains input terminal
Schematic diagram of silicon controlled dimming
Programming key
KNX bus terminal
Running and programming indicator
Label
Triac dimming module output interface
LED Triac dimming power supply
