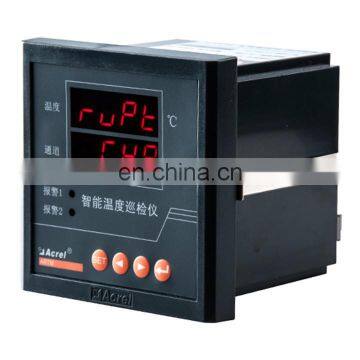

Help CenterAcrel ARTM-8 8 Channels Temperature Controller
Related Products
-
Acrel ARTM-8 Multi Channel Temperature ControllerUS$ 73 - 73MOQ: 1 Set -
32 Channels Remote Measuring Unit Wireless EquipmentUS$ 392 - 392MOQ: 1 Piece
-
32 Switches Remote Measuring Unit Wireless EquipmentUS$ 392 - 392MOQ: 1 Piece
-
32 Switches Remote Measuring Unit Wireless EquipmentUS$ 392 - 392MOQ: 1 Piece
-
Remote Terminal Unit Wireless Networking EquipmentUS$ 56 - 56MOQ: 1 Piece
1 Installation guide
1.1 Introduction
ARTM series multi-input temperature controller can measure and control multi temperature signals. It is mainly
applied to temperature survey and control in thermal power plant and water power plant.

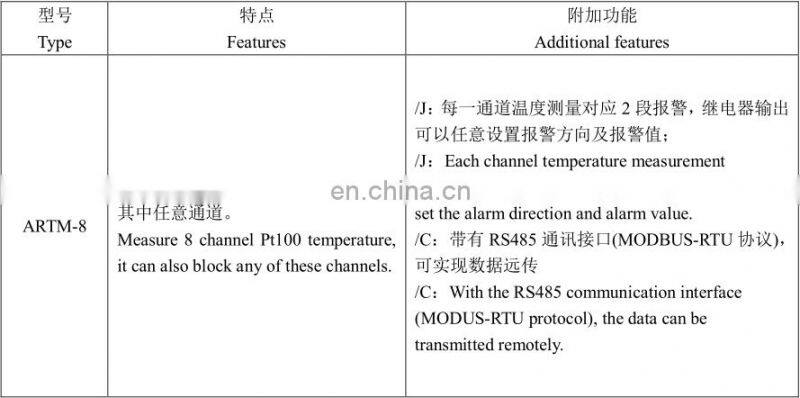

1.2 Type and function
Notice: The specific temperature channel of ARTM or ARTM16 can be specified by the user, see the sample order
for details.

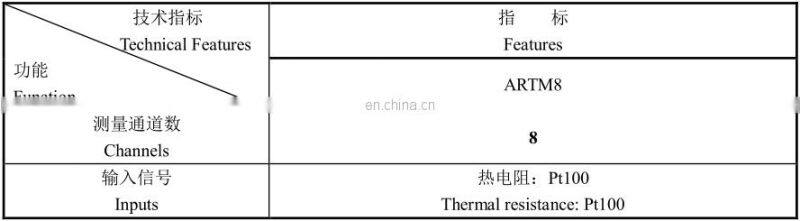

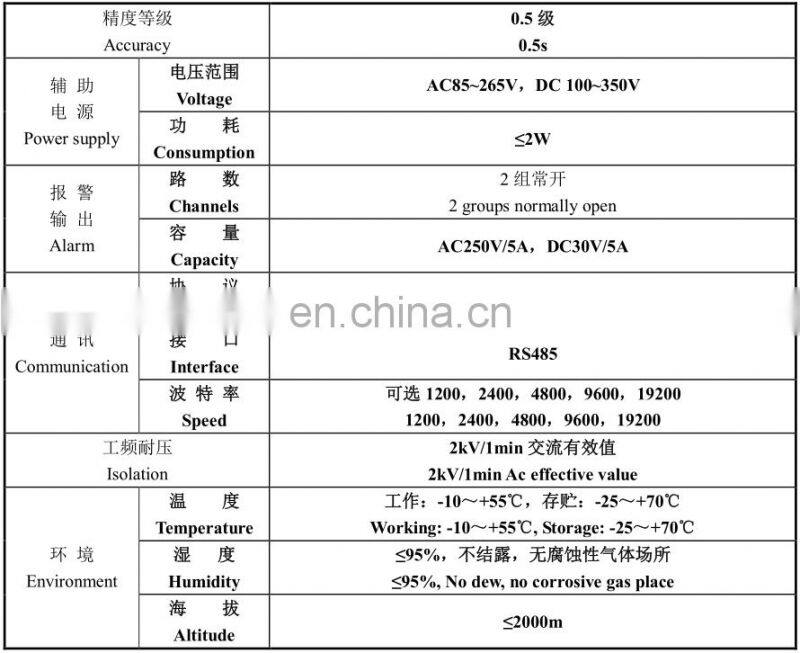

1.3 Technical Features
1.4 Packaging
Packaging contains the following items:
Main engine (including plug-in terminal, nameplate, mounting bracket, etc.)
Product installation manual.
When opening the product packaging, please check if there is any damage, please inform ACREL or agent in time,
and please keep the damaged outer packing. If it is the responsibility of ACREL company or agent, it will be replaced in
time.
1.5 Installation and fixing
1.5.1 Outlines
ARTM8:
Front Side Cut

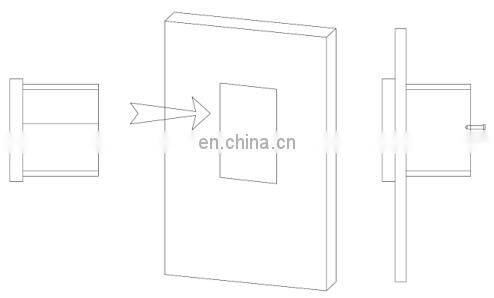

1.5.2 Installation
On your switchboard, select the appropriate place to open a hole with the same size as the installed temperature
inspector.
Remove the temperature inspector, loosen the positioning screw (counterclockwise) and remove the mounting
bracket.
Insert the meter into the dial gauge hole.
Insert mounting bracket and positioning screw (clockwise) after instrumentation.

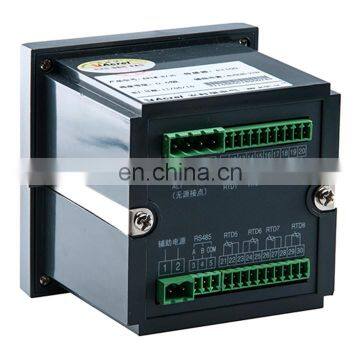

1.5.3 Fixing (Please refer to the wiring diagram on the meter)
ARTM8:
Notice :In the second wire connection, one of the wires of the thermal resistance sensor must be connected to
two terminals according to the diagram.
