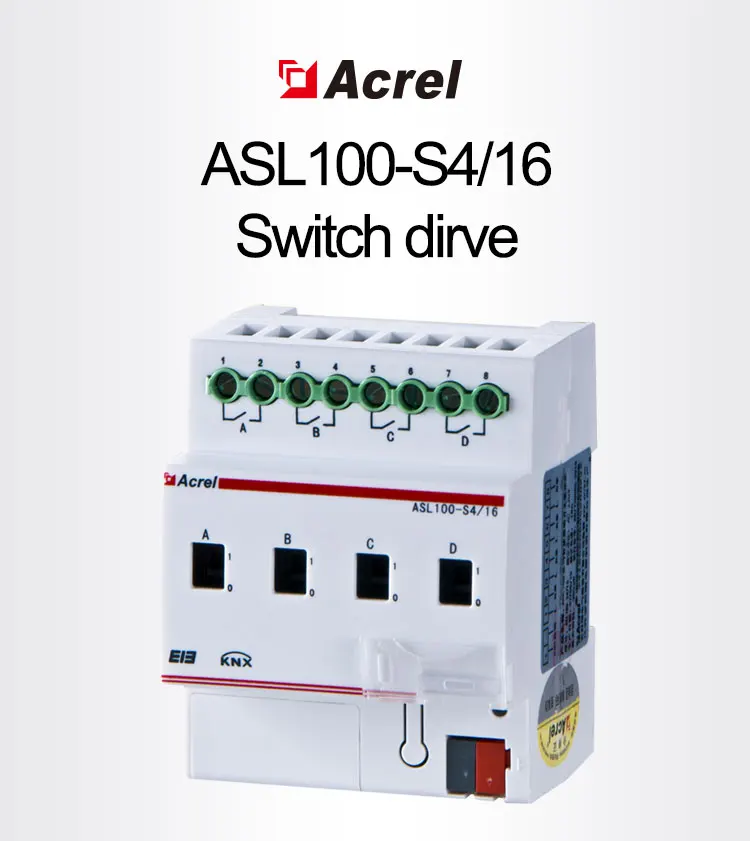

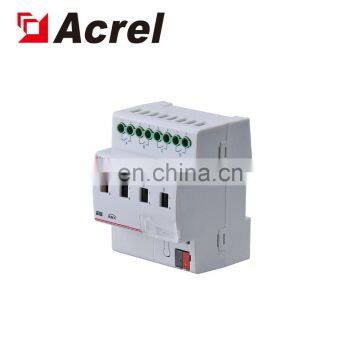

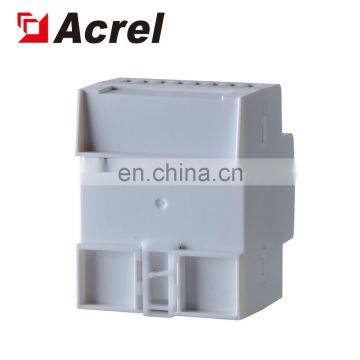

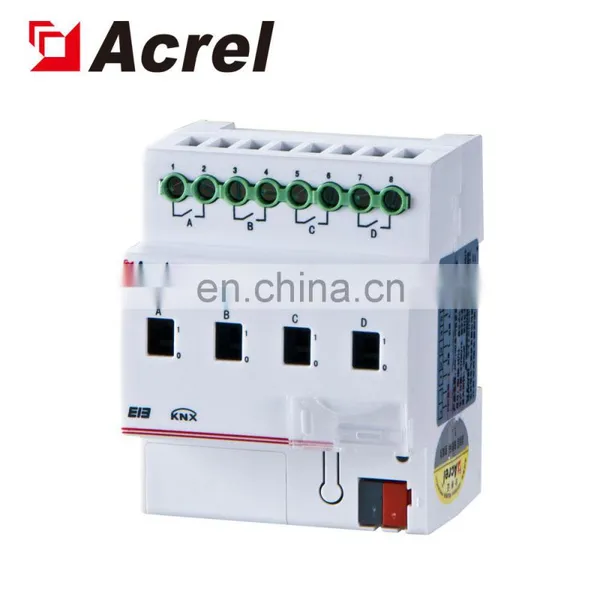

Acrel Switch Drive ASL100-S4/16 Used in Smart Lighting Control System
US$ 185.5 - 185.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ASL100-S4/16
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel 2nd-15th Harmonics Data Center Monitor Multi-circuit Energy Meter AMC16MAUS$ 131 - 131MOQ: 1 Piece -
Acrel 3 Phase 4 Wires Data Center Monitor Multi-circuit Energy Meter AMC16MAUS$ 131 - 131MOQ: 1 Piece
-
Acrel High Quality Data Center Monitor Multi-circuit Energy Meter AMC16MAUS$ 131 - 131MOQ: 1 Piece
-
Acrel 36 Outgoing Line Circuit Multi-channel Energy Meter AMC16MAUS$ 131 - 131MOQ: 1 Piece
-
Acrel 3 Phase 4 Wires Multi-channel Energy Meter AMC16MAUS$ 131 - 131MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
ASL100-S4/16
Overview

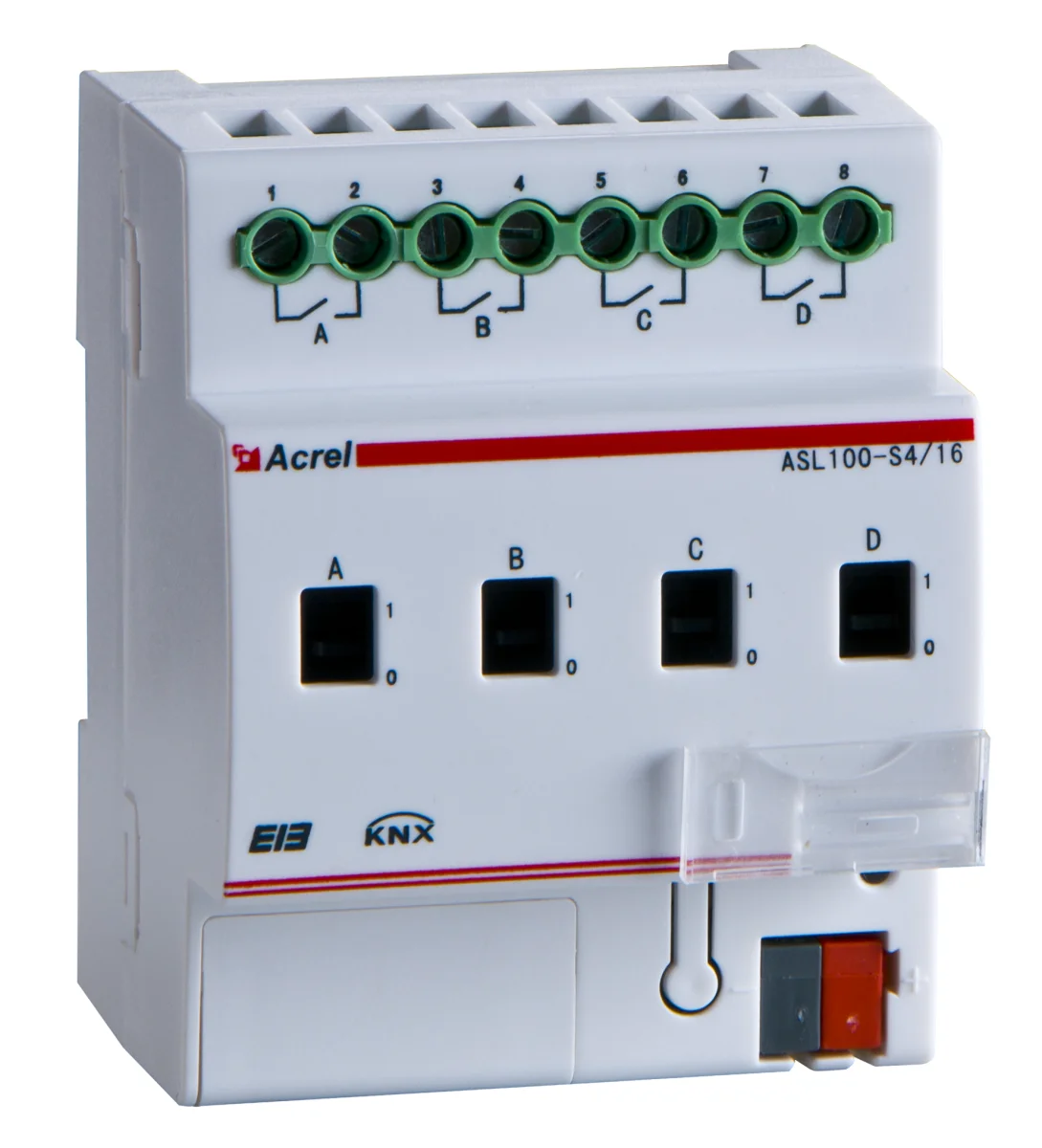

ASL100-Sx/16 series of switch driver
(hereinafter referred to as driver) is Acre-bus output control module. The product meets the
rules of Q31/0114000129C032-2017 ASL100 Intelligent Lighting Control System. European KNX communication bus is adopted to achieve intelligent lighting control of large buildings and public buildings. The latest single-chip microcomputer technology is adopted by the module. Thus, the module is an intelligent control module with high stability and reliability, such as smart panel and dry
node that achieving intelligence of lighting control. The driver controls the on and off of high voltage circuit by the communication bus. 30V DC voltage is used for module power supply at the communication end and is used for system communication. The relay
controls the mains on and off by the relay at the output end. The module is applicable to the resistance, inductance and capacity load.
rules of Q31/0114000129C032-2017 ASL100 Intelligent Lighting Control System. European KNX communication bus is adopted to achieve intelligent lighting control of large buildings and public buildings. The latest single-chip microcomputer technology is adopted by the module. Thus, the module is an intelligent control module with high stability and reliability, such as smart panel and dry
node that achieving intelligence of lighting control. The driver controls the on and off of high voltage circuit by the communication bus. 30V DC voltage is used for module power supply at the communication end and is used for system communication. The relay
controls the mains on and off by the relay at the output end. The module is applicable to the resistance, inductance and capacity load.
Technical Parameters
Power supply feature | KNX bus feeder | DC21~30V | ||||
Power supply current | ＜12mA | |||||
Power consumption | ＜360mW | |||||
Load current | ＜16A | |||||

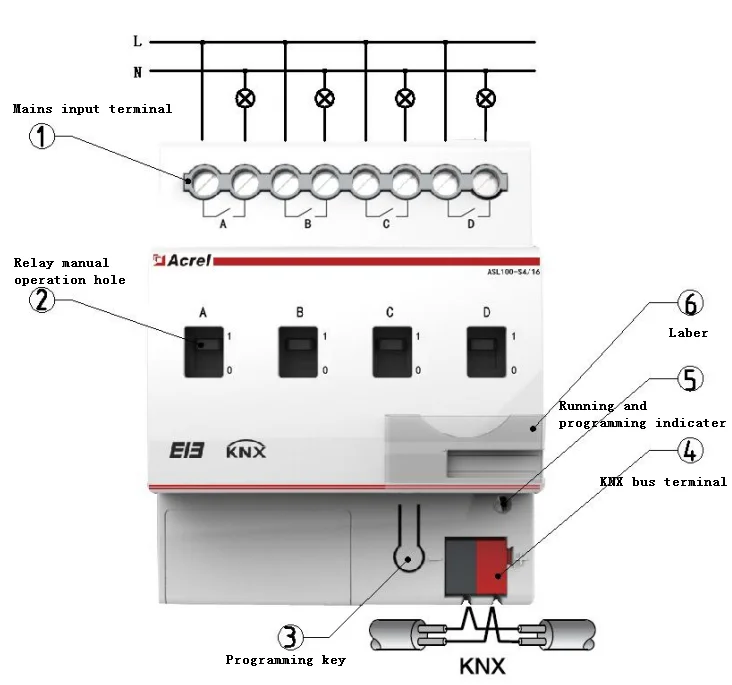

External connection | KNX-TP1 | Use twisted-pair cable conforming to KNX standard. | ||||
Wiring terminal at load end | Terminating with 0.5nm~0.6nm torque | |||||
Operation and display interface | Programming key and relevant indicator | LED indicator is in red when waiting for programming and is in green during and after programming. | ||||
Temperature range | Operating temperature | -5℃~+45℃ | ||||
Storage temperature | -25℃~+55℃ | |||||
Manual Control
Auto Control
Scene Control
Time Control
Centralized Control
