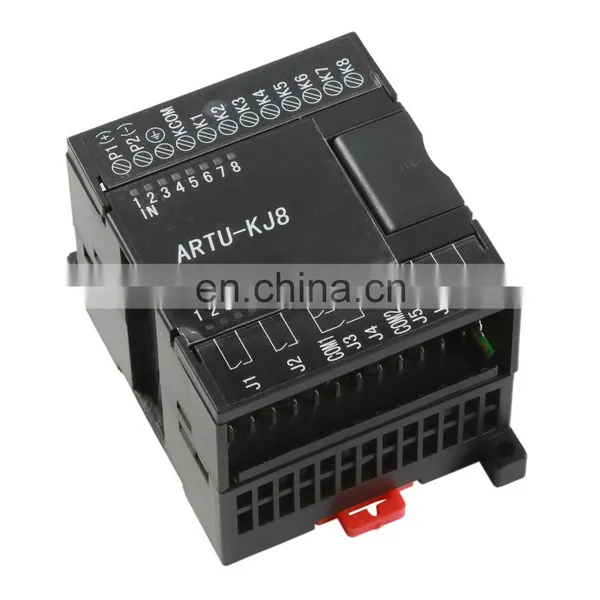

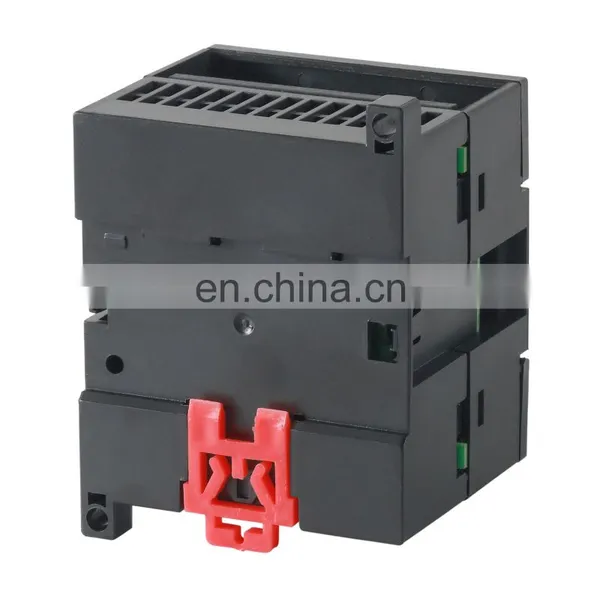

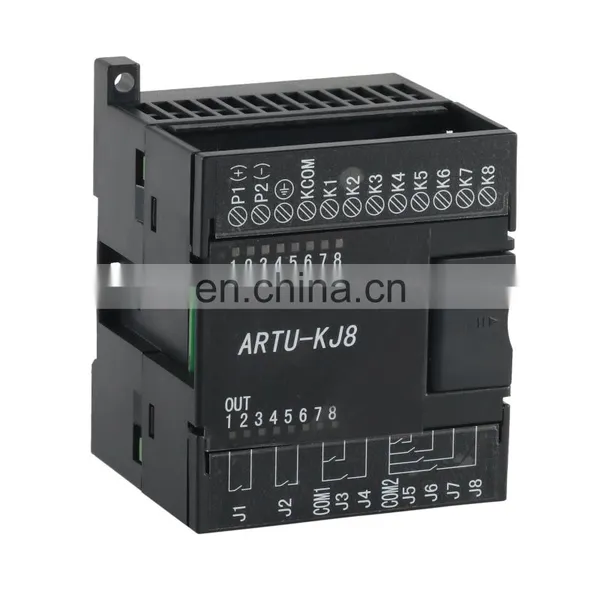

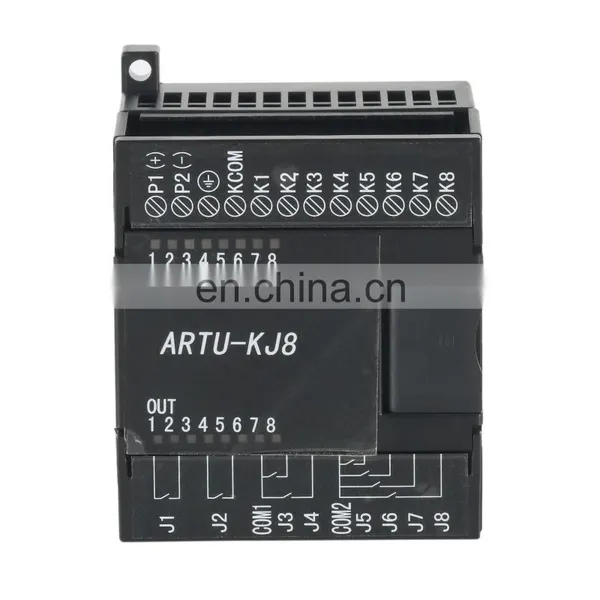

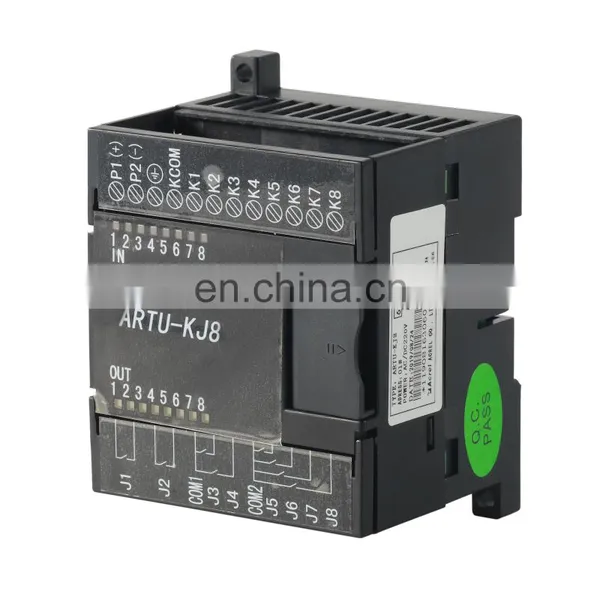

Acrel 300286.SZ Din Rail ARTU-KJ8 Multi-circuit Remote Terminal Unit Collect 8 Switch Signals Output 8 Relay Signal
US$ 119 - 119
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
ARTU-KJ8
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel 300286.SZ Multi-circuit IOT Used Remote Terminal Unit ARTU-KJ8 With Modbus RtuUS$ 119 - 119MOQ: 1 Piece -
Acrel 300286.SZ ARTU-KJ8 DIN Rail Multi-circuit Remote Control Signal Collect DeviceUS$ 119 - 119MOQ: 1 Piece
-
Acrel 300286.SZ ARTU-KJ8 Multi-circuit Remote Terminal Unit for Data Center SolutionUS$ 119 - 119MOQ: 1 Piece
-
Acrel 300286.SZ Remote Terminal Unit 8 Channel Digital Active Contact Input 8 Channel Relay Output ARTU-KJ8US$ 119 - 119MOQ: 1 Piece
-
Remote Automation Remote Communication and Control Unit ARTU-KJ8US$ 119 - 119MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
ARTU-KJ8
Product Description
ARTU-KJ8 Series Remote Terminal Unit
ARTU-KJ8 Series Remote Terminal Unit
General
ARTU distributed monitoring and control devices is a high-performance components used in intelligent power distribution, industrial automation, and other fields.Products include: remote control unit, remote signaling unit.It has a channel status light and a communication status light.It has two-way communication interface,one is used to set the general parameters
and commissioning,another is used to read and set the "four remote" value.Product’s address and baud rate can be set by PC and local DIP switch.Products using the software and hardware "watchdog" technology to prevent freezing.
The user's Guide applies to ARTU distributed monitoring and control devices
Features
● RS485 (MODBUS -RTU)
● Channel state indicator and communication state indicator
● 24VDC (±10%); 220VAC, allow AC/DC 85~265V
● Channel state indicator and communication state indicator
● 24VDC (±10%); 220VAC, allow AC/DC 85~265V
Technical Parameters
Technical parameters | Values | ||
Switching input | Switching output | ||
Number of inputs/outputs | 8 | 8 | |
Intput/output | passive dry contact input | 8 channels relay output（Pulse or hold mode） | |
Communications | RS485 port（Modbus RTU protocol),three-core shielded line | RS485 port（Modbus RTU protocol）,two-core shielded line | |
Bus capacity | ≤32 | ≤32 | |
Switch incident resolution | Ability to distinguish between multiple contact successive changes:When any two contacts displacement interval is greater than 1 ms,Ability to distinguish between cells (less than 2ms) can be reflected in the SOE. | / | |
Signalling scanning speed | All channel scanning cycle time required is 1ms | / | |
Remote signaling debounce time | All channels use the same debounce time 1ms (can be set) | / | |
Function
Wiring
Typical connection
