Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval

Name: Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval
Brand: Acrel
SKU: 165439909
Availability: InStock

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval thumbnail-1

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval thumbnail-2

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval thumbnail-3

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval thumbnail-4

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval thumbnail-5

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval thumbnail-6

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval thumbnail-7

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval photo-1

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval photo-2

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval photo-3

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval photo-4

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval photo-5

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval photo-6

Acrel 300286.SZ Single Phase 3 Wire Power Energy Meter for Solar System off Grid With ANSI UL Approval photo-7

US$ 93.3 - 93.3 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Acrel

Place of Origin:

Jiangsu, China

Model Number:

AGF-AE-D/200

Contact Supplier Request Quote Chat Now

Jiangsu Acrel Electrical Manufacturing CO.,LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Acrel

Place of Origin Jiangsu, China

Model Number AGF-AE-D/200

Phase Single Phase

Operating Temperature -30~55℃

Dimensions 54.1mm*87.8mm*52mm

Display Type Analog and Digital

Accuracy Class Class 1

Measuring Energy Range 0-999999.99kwh

Product Description

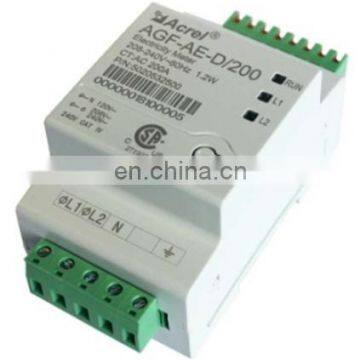

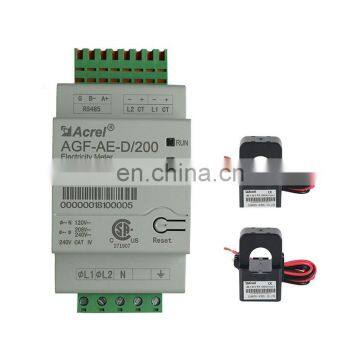

AGF-AE-D/200 single phase 3 wire energy power meter with UL for off-grid inverter

AGF-AE-D/200 single phase 2 channel 3 wire energy meter is wired to the inverter.

If the inverter has a built-in revenue grade meter(RGM),an external meter on the same bus can be wired as RGM.

It is with RS485,SunSpec protocol.

This single phase 2 channel energy meter mainly used in inverters applied in Australia, Europe, North America and other areas with single phase 3 wire system.

Type

Type

Function Description

AGF-AE-D/100

1. power control for photovoltaic / energy storage system
2. full power measurement, like U, I, P, Q, S, kWh, kvarh, etc

3. high speed data refresh
4. din rail 35mm installed
5. easy install by 2 external split core current transformers 0-100A

AGF-AE-D/200

1. power control for photovoltaic / energy storage system
2. full power measurement, like U, I, P, Q, S, kWh, kvarh, etc

3. high speed data refresh
4. din rail 35mm installed

Function & Parameter

Functions and parameters of AGF-AE-D/200

*single phase 2 channel 3 wire

*Rated voltage AC 120V/208V,240V(88%~110%)

*Rated current:AC 200A

*Rated frequency:60HZ

*Communication:RS485,SunSpec protocol

*UL1741 installed in the output of inverters,converters,controllers and interconnection system equipment for use with distributed energy resources.

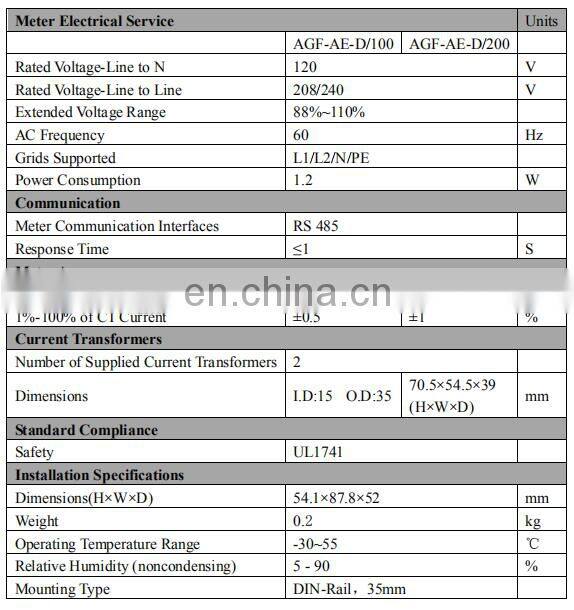

Technical Parameter

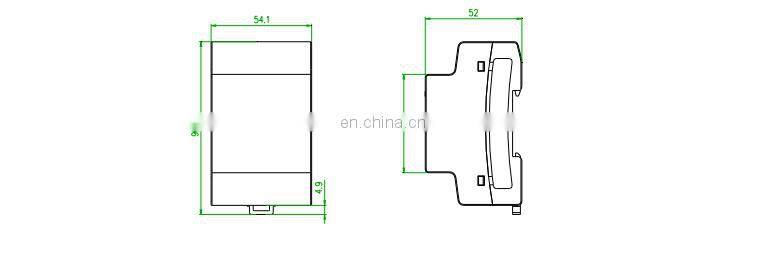

Meter Dimensions

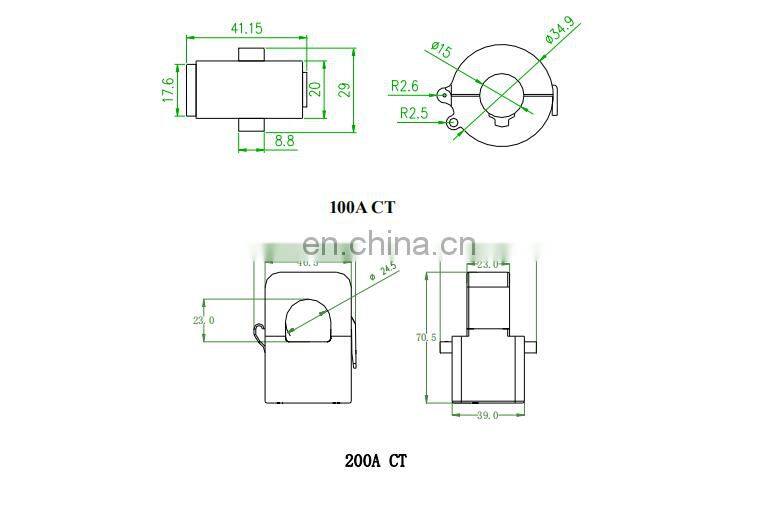

CT Dimensions

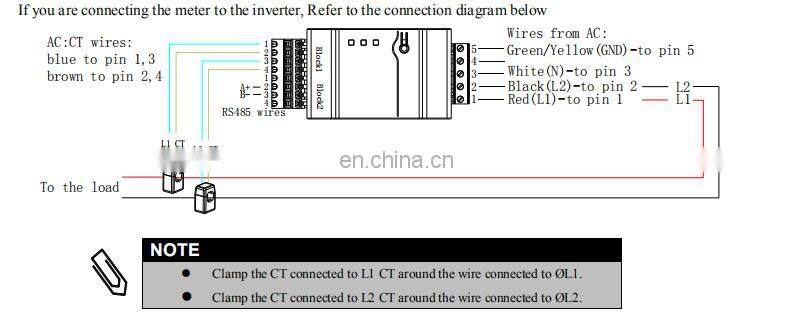

Wiring

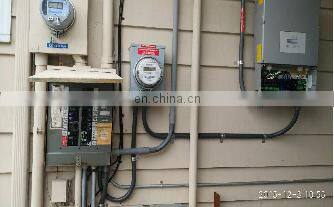

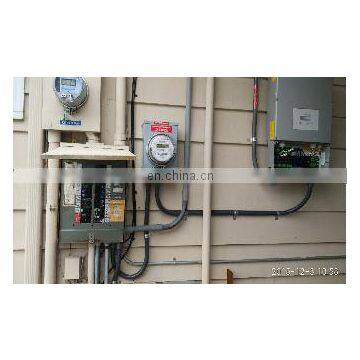

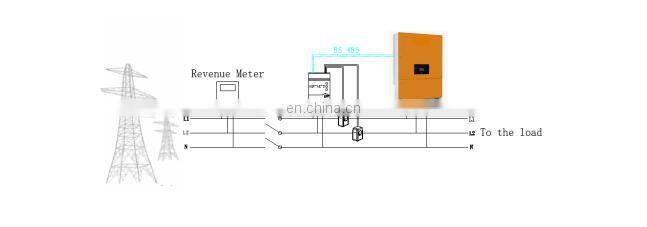

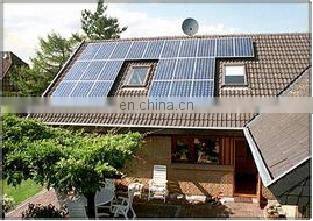

Application

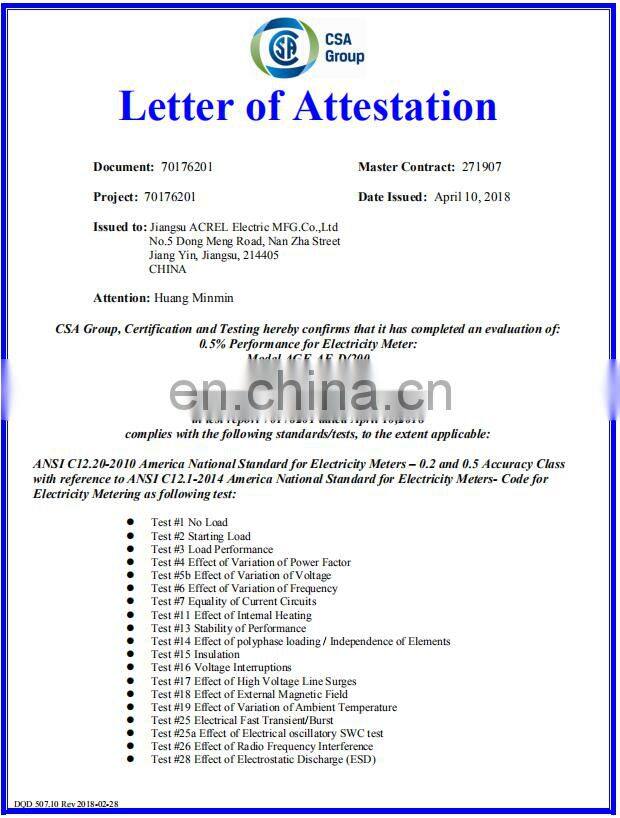

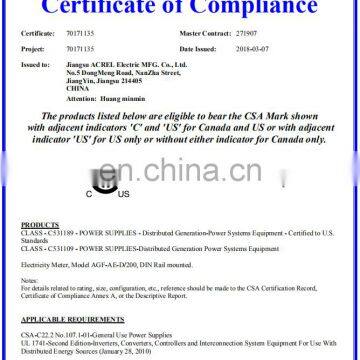

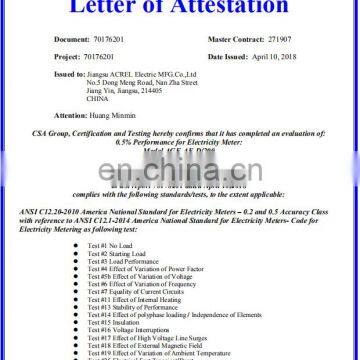

Certificate

UL approval,UL1741 applied in the standard inverters,controllers,converters and interconnection system
equipment for use with distributed energy resources.
ANSI C12.20 energy meter 0.2 and 0.5 accuracy class
