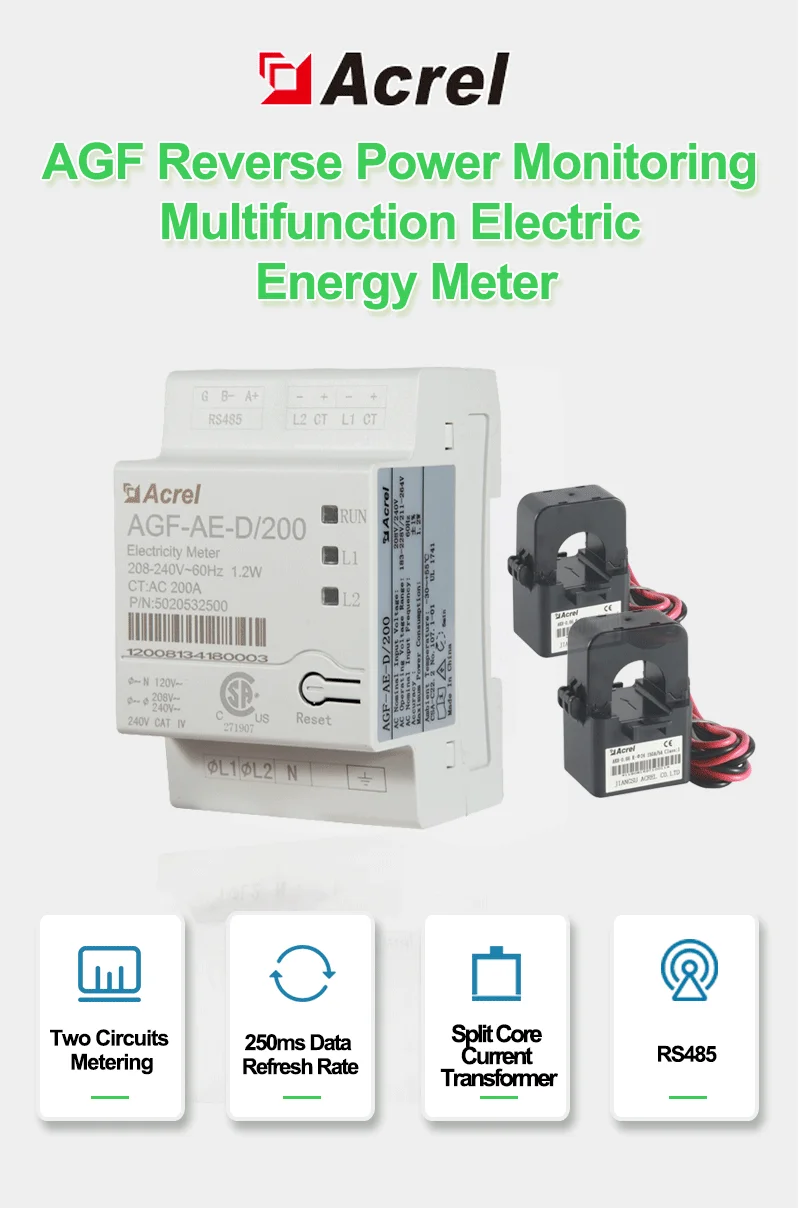

Acrel 300286.SZ Revenue Meter AGF-AE-D/200 Din Rail RS485 SunSpec Energy Meter With ANSI U L Certificate

Acrel 300286.SZ Revenue Meter AGF-AE-D/200 Din Rail RS485 SunSpec Energy Meter With ANSI U L Certificate thumbnail-1
Acrel 300286.SZ Revenue Meter AGF-AE-D/200 Din Rail RS485 SunSpec Energy Meter With ANSI U L Certificate thumbnail-2
Acrel 300286.SZ Revenue Meter AGF-AE-D/200 Din Rail RS485 SunSpec Energy Meter With ANSI U L Certificate thumbnail-3
Acrel 300286.SZ Revenue Meter AGF-AE-D/200 Din Rail RS485 SunSpec Energy Meter With ANSI U L Certificate thumbnail-4
Acrel 300286.SZ Revenue Meter AGF-AE-D/200 Din Rail RS485 SunSpec Energy Meter With ANSI U L Certificate thumbnail-5
Acrel 300286.SZ Revenue Meter AGF-AE-D/200 Din Rail RS485 SunSpec Energy Meter With ANSI U L Certificate photo-1
Acrel 300286.SZ Revenue Meter AGF-AE-D/200 Din Rail RS485 SunSpec Energy Meter With ANSI U L Certificate photo-2
Acrel 300286.SZ Revenue Meter AGF-AE-D/200 Din Rail RS485 SunSpec Energy Meter With ANSI U L Certificate photo-3
Acrel 300286.SZ Revenue Meter AGF-AE-D/200 Din Rail RS485 SunSpec Energy Meter With ANSI U L Certificate photo-4
Acrel 300286.SZ Revenue Meter AGF-AE-D/200 Din Rail RS485 SunSpec Energy Meter With ANSI U L Certificate photo-5
US$ 93.3 - 93.3 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ACREL
Place of Origin:
China
Model Number:
AGF-AE-D/200
Contact Supplier Request Quote Chat Now
Jiangsu Acrel Electrical Manufacturing CO.,LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ACREL
Place of Origin China
Model Number AGF-AE-D/200
Application Industrial
Specification Normal
Output Voltage (V) 120V
Work Time (h) 24H
General

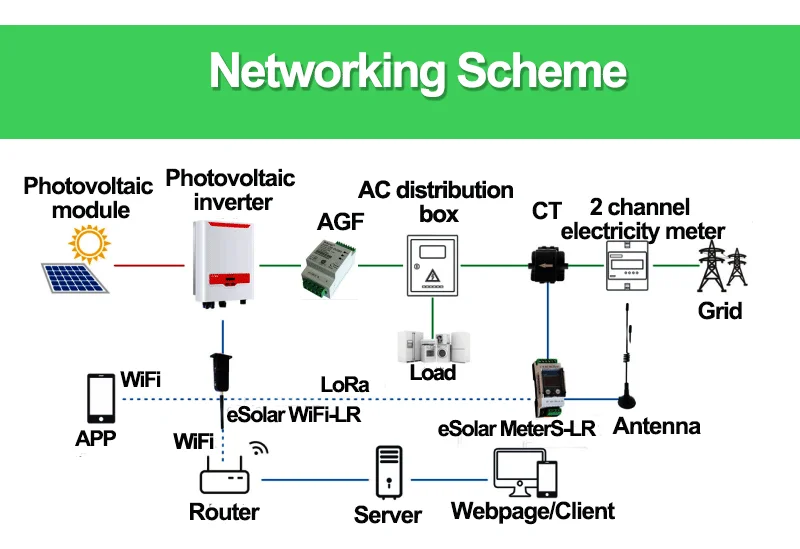

In a single inverter system, the meter is connected directly to the inverter. If your inverter has a built-in revenue grade meter (RGM; the inverter is referred to a revenue grade inverter), you can connect an external meter on the same bus as the RGM.

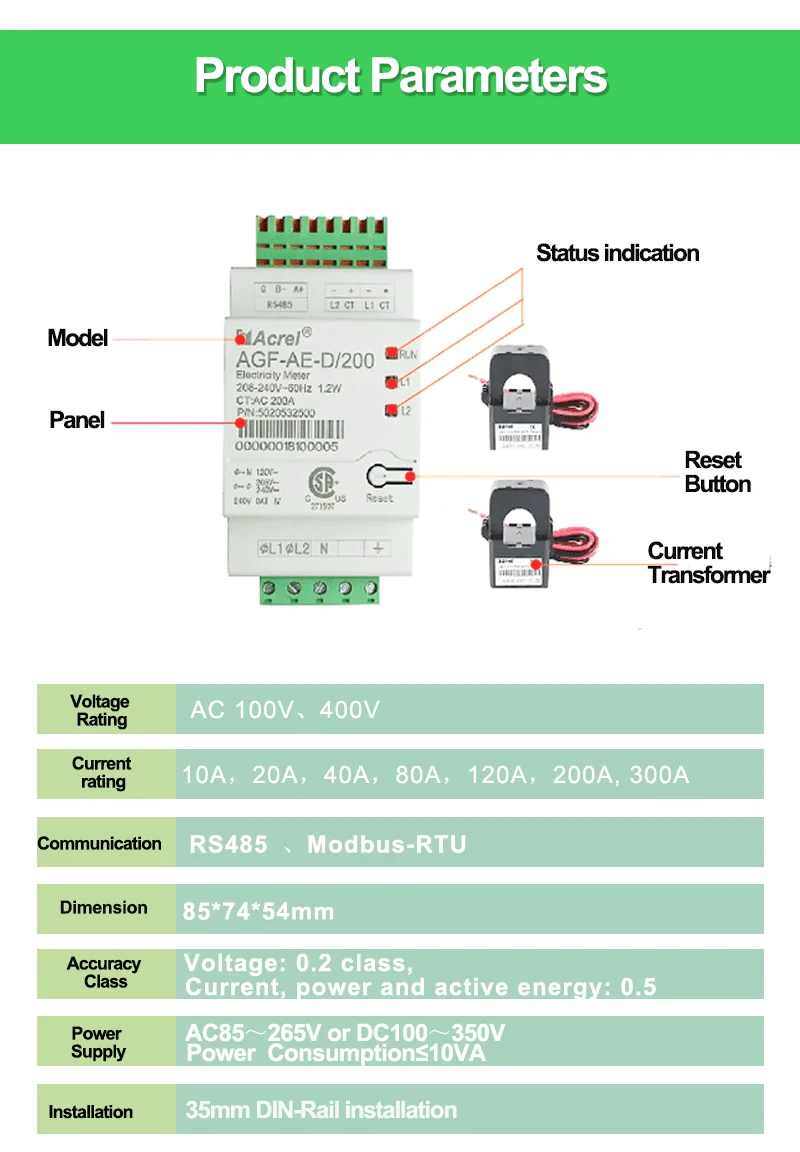

Parameters
Meter Electrical Service
Units

AGF-AE-D/100
AGF-AE-D/200
Rated Voltage-Line to N
120
V
Rated Voltage-Line to Line
208/240
V
Extended Voltage Range
88%~110%
AC Frequency
60
Hz
Grids Supported
L1/L2/N/PE
Power Consumption
1.2
W
Communication
Meter Communication Interfaces
RS 485
Response Time
≤1
S
Meter Accuracy
Rated RMS current
100
200
A
1%-100% of CT Current
±0.5
±1
%
Current Transformers
Number of Supplied Current Transformers
2
Dimensions
I.D:15 O.D:35
70.5×54.5×39
(H×W×D)
mm

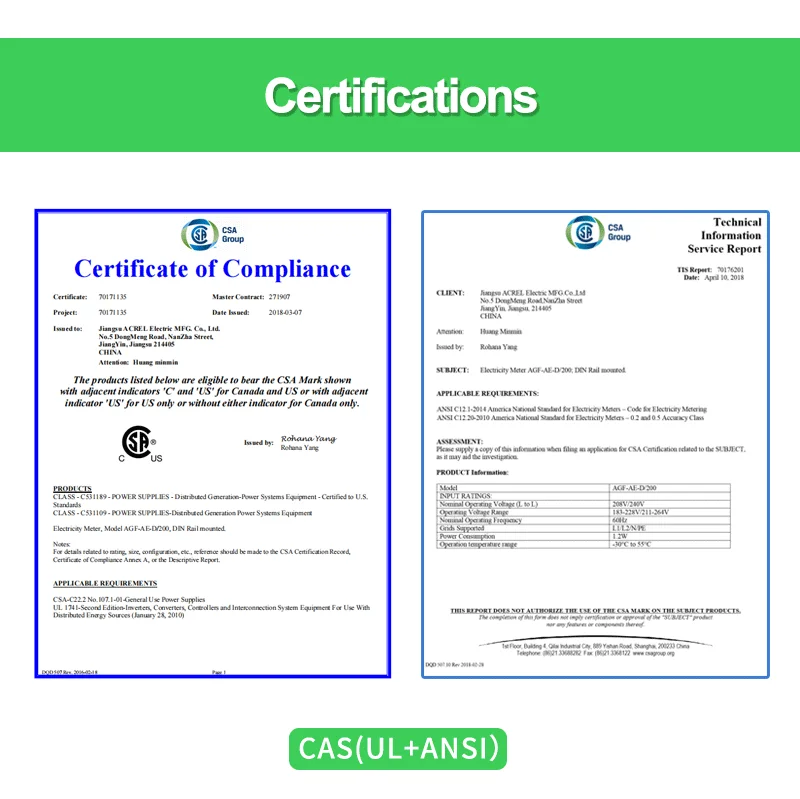

Standard Compliance
Safety
UL1741
Installation Specifications

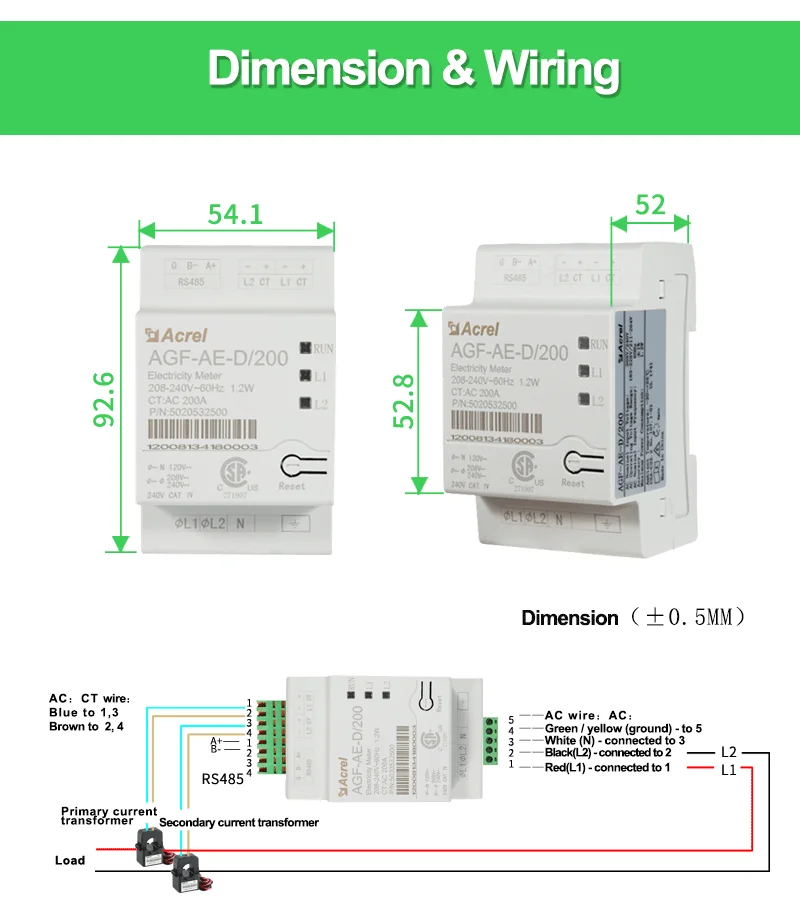

Dimensions(H×W×D)
54.1×87.8×52
mm
Weight
0.2
kg
Enclosure type
Type 1,PC plastic UL94V-0
Operating Temperature Range
-30~70
℃
Relative Humidity (noncondensing)
5 - 90
%

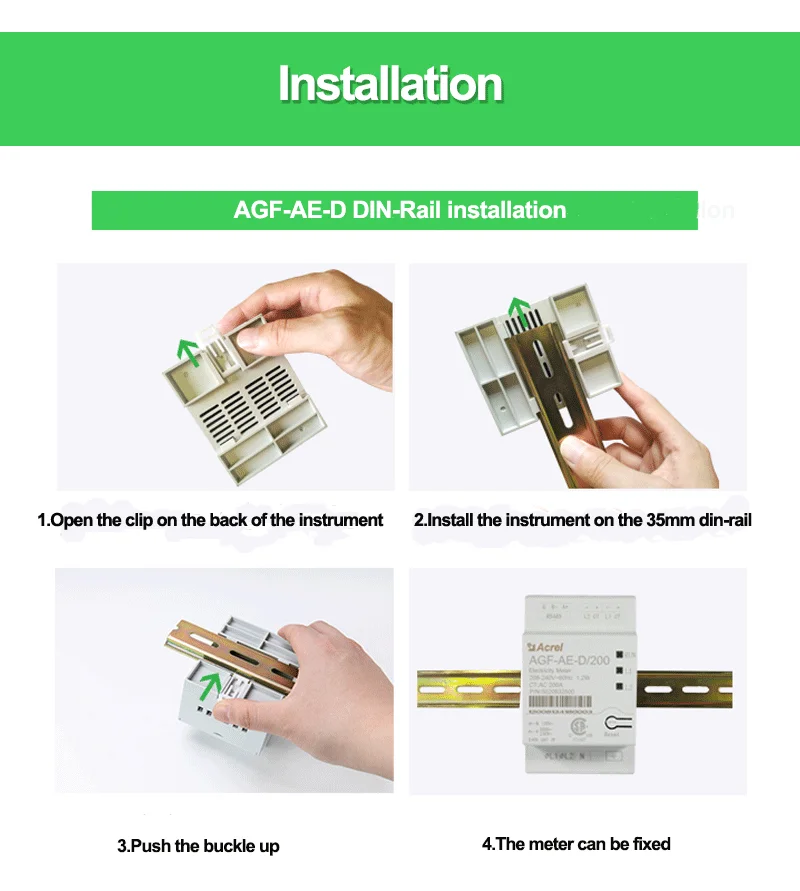

Mounting Type
DIN-Rail，35mm

Contact us

Overseas sales engineer: Tim Ma

Mob:+86 18761599716(whatsapp/skype/wechat)
