Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > Acrel 1 Channel Residual Current Measuring Din Rail Wireless Energy Meter ADW300-2G/CL

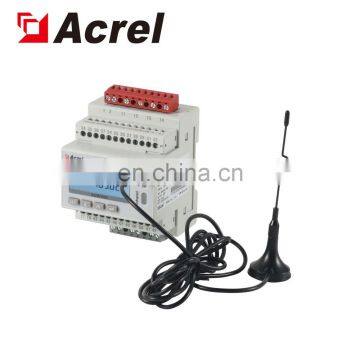

Acrel 1 Channel Residual Current Measuring Din Rail Wireless Energy Meter ADW300-2G/CL
US$ 144 - 144
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
ADW300-2G/CL
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel 2G Wireless Communication Wireless Energy Meters ADW300-2G/CUS$ 124 - 124MOQ: 1 Piece -
Acrel 2G Wireless Communication Din Rail Wireless Energy Meter ADW300-2G/CUS$ 124 - 124MOQ: 1 Piece
-
Acrel NB-IOT Wireless Communication Wireless Energy Meters ADW300-NB/CUS$ 124 - 124MOQ: 1 Piece
-
Acrel ADW300 Wireless Energy Meter/electronic Meters for IOT Power Monitoring CEUS$ 124 - 124MOQ: 1 Piece
-
Acrel ADW300 Smart Energy Meters With Lora/GPRS/4G/Wifi Communication/Electricity Meter CEUS$ 124 - 124MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
ADW300-2G/CL
Phase
Three Phase
Output Voltage
380V
Operating Temperature
-25℃~55℃
Dimensions
72mm*87.8 mm*71.5mm
Accuracy Class
0.5S class
Measuring Energy Range
000000.00~999999.99kWh
Parameters
Specification |
Accuracy |
Resolution |
Measuring Range |
Active energy(Kwh) |
Class 0.5S |
0.01 Kwh |
0-999999.99Kwh |
Reactive energy(Karh) |
Class 2 |
0.01Kvarh |
0.01 Kvarh |
Voltage |
0.2% |
0.1V |
50-285V |
Current |
0.2% |
0.01A |
0.01-80A |
Active power |
0.5% |
0.001 Kwh |
0-22.88kw |
Reactive power |
0.5% |
0.001 Kwh |
0-22.88kw |
Apparent power |
0.5% |
0.001VA |
0-22.88kw |
Power Factor |
0.2% |
0.001 |
|
Frequency |
0.2% |
0.01HZ |
45-65HZ |
Active energy(Kwh) |
Class 0.5S |
0.01Kwh |
0-999999.99Kwh |
Functions
Three phase voltage, current, frequency, three phase power , total power( active , reactive, apparent);
Voltage and current phase angle, voltage and curent imbalance;
Voltage, current total harmonic and 2ne-31st harmonic;
Record of exterme values of voltage , current and power in current month and last month;
Maximum current, power demand and real-time current, power demand;
ADW300
Via current transformer , supports common current transformer access.
ADW300W
3 open type mA current transformers as standard, which can bu used as 5A(secondary transformer) and 100A input.
