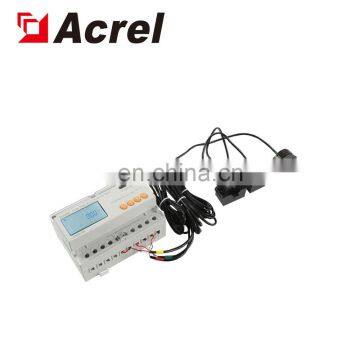

Three Phase Digital Kwh Meters Power Energy Meter 50HZ DTSD1352-C
US$ 76.3 - 76.3
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
DTSD1352-C
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Phase Digital Kwh Meters Power Energy Meter 50HZ DDS1352US$ 18.2 - 18.2MOQ: 1 Piece -
Single Phase DIN Rail Mini Kwh Meters Class 1 Energy Meters DDS1352US$ 24.5 - 24.5MOQ: 1 Piece
-
10(80)A 50HZ Three Phase Din Rail KWH Watt Hour Din-rail Energy Meters DTSD1352-CUS$ 76.3 - 76.3MOQ: 1 Piece
-
Multi-function Din Rail Kwh Energy Meters Acrel DTSD1352-C PV System MetersUS$ 76.3 - 76.3MOQ: 1 Piece
-
Acrel DTSD1352 Three Phase DIN Rail Mount Power Meter Watt-hour MeterUS$ 70 - 70MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
DTSD1352-C
Phase
Three Phase
Output Voltage
380V
Operating Temperature
-25℃~55℃
Dimensions
126mm*88 mm*70mm
Accuracy Class
0.5S class
Measuring Energy Range
000000.00~999999.99kWh
Outline and size
Instrument type |
length |
width |
height |
DTSD1352 |
88 |
126 |
70 |
Functions
Measurement
The meter can measure all electrical parameters such as voltage, current, active power, reactive power, apparent power, power factor, frequency, 31st harmonic and total harmonic. The value format of voltage, current, frequency and power are listed as below.
Example: U = 220.1V，f = 49.98Hz, I = 1.99A，P = 0.439kW
Calculating
The meter can calculate the current active energy, forward active energy, reversing active energy, forward reactive energy and reversing reactive energy.
Timing
The meter has 2 time lists, and can be divided into 4 time zones per year. Each time list can be divided into 8 time periods and 4 tariff (F1、F2、F3、F4). The main purpose of multi-tariff is promote the energy efficiency and economic benefits.
History data statistics
The meter can record last 48 months or last 90 days history energy in eac
Switching input and output
The switch input adapts the method of on-off signal input and powered by outer power supply.
It can be gotten by meter when there is a change of on or off via a switching input module. The parameter of switching input can not only get and show the state of local switching information but also achieve the communication via RS485, which called “remote information” function.
Temperature measurement
The meter support three path of outlay NTC temperature measurement, the range of temperature is -40℃~99℃.
Demand
Demand:The average power in the demand cycle.
Maximum demand:The maximum value of demand in a period of time.
Demand cycle:The time period between two same average value of demand.
The default demand cycle is 15 minutes, slip time is 1 minute.
The meter can measure 4 kinds of maximum demand: forward active, reversing active, inductance performance reactive, capacitance performance reactive maximum demand and the occur time.
