Home > Electrical & Electronics > Sensor > Pressure Sensor > True Effective Measurement Adopted Ac 0-600A Current Sensor DC Signal Output
True Effective Measurement Adopted Ac 0-600A Current Sensor DC Signal Output
US$ 41.5 - 41.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
BA50-AI/V-T
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Phase ac 0-50A Input Current Transducer With DCanalog 0-5V OutputUS$ 24.5 - 24.5MOQ: 1 Piece -
Single Phase ac 0-50A Input Current Transmitter With Analog 0-5V OutputUS$ 24.5 - 24.5MOQ: 1 Piece
-
Acrel 300286 Measure Ac 0-1A Leakage Current Transmitter With DC Analog 4-20mA OutputUS$ 46.9 - 46.9MOQ: 1 Piece
-
Acrel 3p4w Multi-electric TransmitterUS$ 150.5 - 150.5MOQ: 1 Piece
-
With DC Analog 4-20mA Output Ture Effective Measurement Adopted ac 0-600A Input Current TransducerUS$ 41.5 - 41.5MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
BA50-AI/V-T
Theory
Current Sensor
Product Description
BA Series transducer is a kind of device which can isolate and transmit electric parameters such as current, voltage, frequency,power,power factor or temperature,resistance and so on non-electrical parameters,into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.
Technical Features

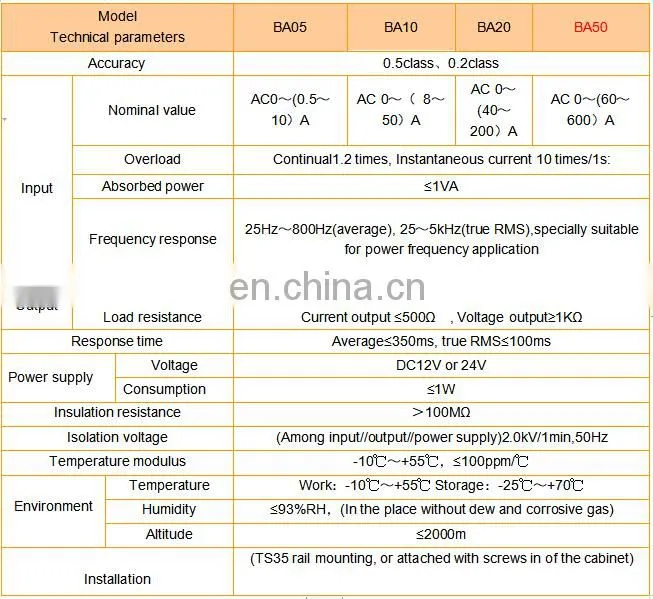

Product Spec.
Note: 1. The model with "T" represents true RMS measurement;
2. The power supplies have 12Vdc, 24Vdc two kinds to chose;
3.The outputs are 0-5V, 4-20mA, 0-20mA selectable;
Dimension
Shipping
Contact
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2006
Annual Export Value
US$1.5 Million - US$2.5 Million
Product Certifications
ISO9001
