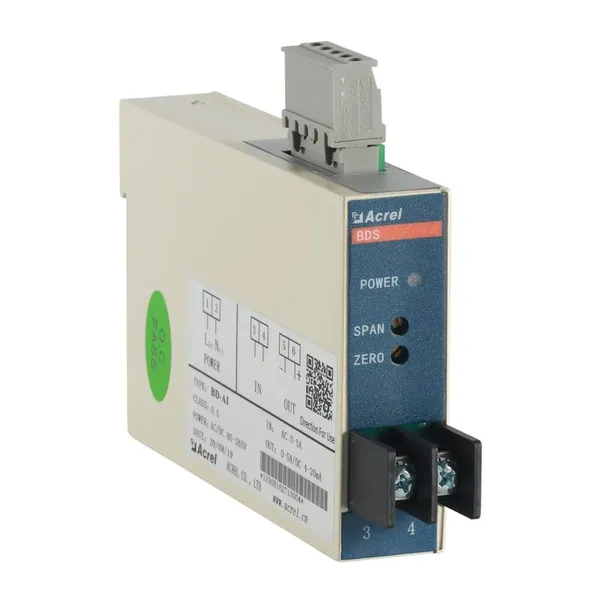

Acrel BD-AI/C Single phase ac current power transformer with 4-20mA output rs485

Name: Acrel BD-AI/C Single phase ac current power transformer with 4-20mA output rs485
Brand: Acrel
Price: USD $43.4 - 43.4 / Piece

FOB Price

USD $43.4 - $43.4 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Acrel	Place of Origin:	China	Model Number:	BD-AI/C
Usage:	Other, Current Sensor	Theory:	Current Sensor	Output:	Analog Sensor

Packaging Details

Products are packed in cardboard in air bubble film

Product Description

General

BD series electric transducer is a kind of device which can isolate and transmit electric parameters such as current,voltage
frequency, power, power factor or temperature, resistance and so on non-electrical parameters, into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.

Parameters

Technical parameters		Value
Accuracy class		0.5、0.2
Input	Nominal value	CurrentAC、DC 1A、5A； VoltageAC、DC 100V、300V、500V
	Overload	Continual 1.2 times, Instantaneous current 10 times/5s; Instantaneous voltage 2 times/30s;
	Consumption	≤0.3VA Current input； Voltage input， ≤0.3VA100V ，≤0.6VA300V ，≤1VA500V
	Frequency	50±5Hz，60±5Hz
Output	Normal value	DC:4-20mA、0-20mA, 0-5V, 0-10V And so on
	Load resistance	Current output≤600Ω Voltage output≥1000Ω
	Ripple content	<0.5%peak value
Response time		≤400ms
Power supply	Voltage	AC85-265V、DC100-350V
Power supply	Consumption	AC current, voltage≤3VA， Power≤4VA
Insulation resistance		≥100MΩ
Isolation voltage		Among input//output//power supply 2.0kV/1min, 50Hz
Temperature modulus		≤200ppm/℃
Environment	Temperature	work-10℃~+55℃ Storage: -25℃~+70℃
	Humanity	≤90%RH(In the place without dew and corrosive gas)
	Altitude	≤2000m
Fix mode		(Rail, or fix to cubicle with bolt)

Overseas sales engineer: Tim Ma

Mob:+86 18761599716(whatsapp/skype/wechat)

Company Profile

Jiangsu Acrel Electrical Manufacturing CO.,LTD

Acrel Co., Ltd.[stock code: 300286.sz] is a high-tech enterprise integrates R&D, production, sales and service, since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors. At present, more than 8,000 sets of various solutions are running all over the country, help users to realize the visual management of energy consumption, provide users the energy data services, and escort users an efficient and safe energy consumption.

Acrel energy efficiency management system including substation operations and maintenance cloud platform, electricity safety management cloud platform, Environmental equipment power consumption monitoring cloud platform, prepaid management (system) cloud platform, intelligent power distribution monitoring system, power quality management system, building energy consumption management system, industrial energy control platform, leakage power monitor and control system, fire-fighting device power monitoring system, fire-proof door monitoring system, emergency lighting and evacuation indicating system, EV charger management system, data center power&environment monitoring system, smart lighting control system, IT isolation power supply system and related products.

Jiangsu Acrel Electrical Manufacturing Co., LTD., the manufacturer base located in Jiangyin, Wuxi City, is a pioneer enterprise integrates the informatization and industrialization of Jiangsu province. It has a multiple function product test center(CNAS certified), which can carry out a variety of tests on environment, electromagnetic compatibility, safety and reliability. The production relies on the advanced information management system and strictly follow the ISO9001 management standard, which provide a guarantee for industrialization and large-scale implementation of the products. The annual capacity of the electrical meter is 2 million sets, 1.5 million power transformers and 10,000 sets of energy-saving cabinets.
