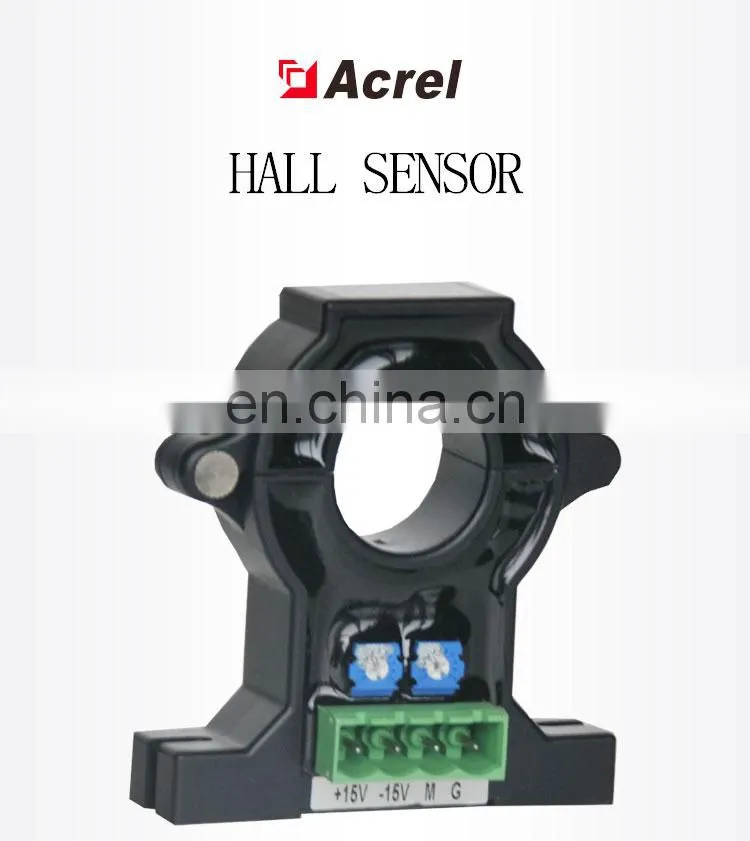

Help CenterAcrel AHKC-EKB 1 Class Accuracy 0-200-1000A Signal Isolator Transmitter Hall Effect Current Sensor
Related Products
-
Acrel AHKC-BS Battery Supplied Applications AC,DC Current Signals Measuring Hall Sensor Current Transducer MeasurementUS$ 7 - 7MOQ: 1 Piece -
Acrel AHKC-BS Battery Supplied Applications DC Current Sensor Hall Sensor Current Transducer MeasurementUS$ 7 - 7MOQ: 1 Piece
-
Acrel AHKC-BS Battery Supplied Applications 5V/4V Output Hall Sensor Current Transducer MeasurementUS$ 7 - 7MOQ: 1 Piece
-
Acrel AHKC-BS Battery Supplied Applications High Frequency Hall Sensor Current Transducer MeasurementUS$ 7 - 7MOQ: 1 Piece
-
Acrel AHKC-BS Battery Supplied Applications 50a 500a Hall Sensor Current Transducer MeasurementUS$ 7 - 7MOQ: 1 Piece
It is insulative between the primary and secondary grade of AHKC-EKB series current sensor which can be used for measuring direct current, alternating current and pulse current.
Technical Parameters and Overall Dimensions
Parameters |
Index |
Rated Input Current |
0~±(50-1000)A |
Rated Output Voltage |
±5V/±4V |
Accuracy Class |
1.0 |
Power Voltage |
DC±15V(allowable fluctuation±20%) |
Zero Offset Voltage |
±20mV |
Offset Voltage Drift |
≤±1.0mV/℃ |
Linearity |
≤0.2%FS |
Response Time |
≤5us |
Bandwidth |
0~20kHz |
Isolation Voltage |
3.5kV/50Hz/1min |
Operating Temperature |
-40℃~85℃ |
Storage Temperature |
-40℃~85℃ |
Consumption |
≤0.5W |
