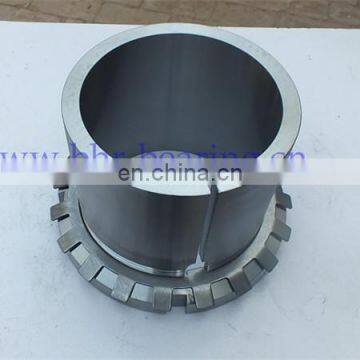

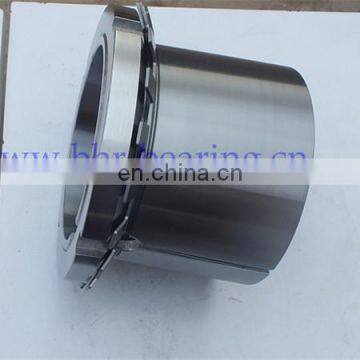

China Supplier 170mm Tapered Bore Metric Bearing Adapter Sleeve H2338 With Lock Nut KM38 MB38
US$ 16 - 30
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
BHR, OEM
Place of Origin:
Shandong, China
Model Number:
H2338
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Cheap Price Size 20*32*24mm Adapter Sleeve H 204 Bearing Bushing for Metric ShaftsUS$ 1 - 2MOQ: 10 Pieces -
Famous Brand High Speed 25mm Tapered Bore Bearing Adapter Sleeve H 205 Size 25*38*26mm for Metric ShaftsUS$ 1 - 2MOQ: 10 Pieces
-
Top Supplier 30mm Bore Size Ceramic Bearing Adapter Sleeve H 206 With KM6 Lock Nut for Metric ShaftsUS$ 1 - 2MOQ: 10 Pieces
-
Super Precision Lock Nut KM7 MB7 Adapter Sleeve H 207 Size 35*52*29mm Types of Bearing for Metric ShaftsUS$ 1 - 2MOQ: 10 Pieces
-
Good Quality Super Precision Bearing Housing Size 40*58*31mm Adapter Sleeve H 208 Lock Nut KM 8 for Metric ShaftsUS$ 1 - 2MOQ: 10 Pieces
Brand Name
BHR, OEM
Place of Origin
Shandong, China
Model Number
H2338
China supplier 170mm tapered bore metric bearing adapter sleeve H2338 with lock nut KM38 MB38
Product Description
Adapter sleeves include mounting sleeve, locknut and lockwasher or lockplate.
Adapter and withdrawal sleeves are used to locate bearings with a tapered bore on plain or stepped shafts. They facilitate bearing mounting and dismounting and, in many cases, simplify bearing arrangement design.
Specifications: H2338 bearing adapter sleeve
| Bore size | 170mm |
Length |
169m |
Thread G |
M190x2 |
Weight |
12Kg |
Fit bearing |
23238 CCK/W33 spherical roller bearing |
Locknut |
KM38 lock nut |
Lockwasher and Lockplates |
MB38 lock washer |
Appropriate Hydraulic Nut |
HMV88E |
| Model | Dimensions mm | Wt kg | components | |||||||
| d1 | d | d2 | B1 | B2 | G | cover | locknut | lock washer | ||
| H205 | 20 | 25 | 38 | 26 | 8 | M25×1.5 | 0.07 | A205 | KM05 | MB05 |
| H206 | 25 | 30 | 45 | 27 | 8 | M30×1.5 | 0.1 | A206 | KM06 | MB06 |
| H207 | 30 | 35 | 52 | 29 | 9 | M35×1.5 | 0.13 | A207 | KM07 | MB07 |
| H208 | 35 | 40 | 58 | 31 | 10 | M40×1.5 | 0.17 | A208 | KM08 | MB08 |
| H209 | 40 | 45 | 65 | 33 | 11 | M45×1.5 | 0.23 | A209 | KM09 | MB09 |
| H210 | 45 | 50 | 70 | 35 | 12 | M50×1.5 | 0.27 | A210 | KM10 | MB10 |
| H211 | 50 | 55 | 75 | 37 | 12 | M55×2 | 0.31 | A211 | KM11 | MB11 |
| H212 | 55 | 60 | 80 | 38 | 13 | M60×2 | 0.35 | A212 | KM12 | MB12 |
| H213 | 60 | 65 | 85 | 40 | 14 | M65×2 | 0.4 | A213 | KM13 | MB13 |
| H215 | 65 | 75 | 98 | 43 | 15 | M75×2 | 0.71 | A215 | KM15 | MB15 |
| H216 | 70 | 80 | 105 | 46 | 17 | M80×2 | 0.88 | A216 | KM16 | MB16 |
| H217 | 75 | 85 | 110 | 50 | 18 | M85×2 | 1 | A217 | KM17 | MB17 |
| H218 | 80 | 90 | 120 | 52 | 18 | M90×2 | 1.2 | A218 | KM18 | MB18 |
| H219 | 85 | 95 | 125 | 55 | 19 | M95×2 | 1.35 | A219 | KM19 | MB19 |
| H220 | 90 | 100 | 130 | 58 | 20 | M100×2 | 1.5 | A220 | KM20 | MB20 |
| H221 | 95 | 105 | 140 | 60 | 20 | M105×2 | 1.7 | A221 | KM21 | MB21 |
| H222 | 100 | 110 | 145 | 63 | 21 | M110×2 | 1.9 | A222 | KM22 | MB22 |
