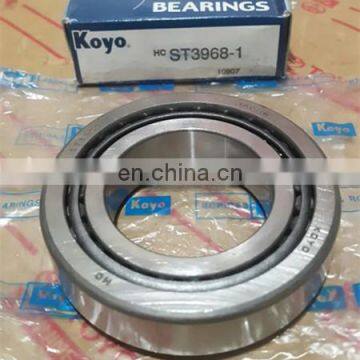

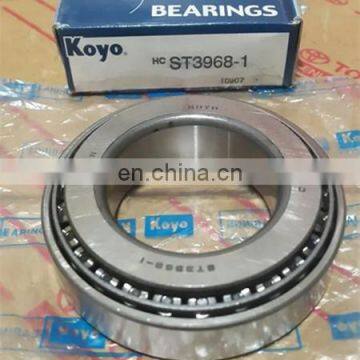

automotive transmission bearing japan koyo ST3968-1 single row taper roller bearing size 38.5x68x18.5mm
Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.
Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.
Benefits:
Enhanced performance in demanding applications.
tapered roller bearing is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.
Specification: ST3968-1 koyo tapered roller bearing | |
Series |
metric series |
Roller bearing type |
tapered roller bearing |
Number of row |
single row |
Bearing material |
Gcr15 steel bearing |
Cage type |
stamped steel cage |
Precision rate |
grade p4 p5 p6 p0 |
Dimensions: | |
d - Bore |
38.5mm |
D - Cup outer diameter |
68mm |
B - Cone width |
17mm |
C - Cup width |
14.7mm |
T - Bearing width |
18.5mm |
Tapered roller bearing size chart:
| Bearing No. | d | D | B |
| (mm) | (mm) | (mm) | |
| LM67049A/LM67010 | 31.75 | 59.131 | 16.764 |
| LM67048/LM67010 | 31.75 | 59.13 | 15.88 |
| LM654649/LM654610 | 285.75 | 380.898 | 65.088 |
| LM607049A/LM607010 | 31.75 | 59.131 | 15.875 |
| LM607048/LM607010 | 31.75 | 59.131 | 15.875 |
| LM607045/LM607010 | 31.75 | 59.131 | 15.875 |
| LM603049/LM603014 | 45.242 | 79.974 | 19.842 |
| LM603049/LM603012 | 45.2 | 77.79 | 19.8 |
| LM603049/LM603011 | 45.242 | 77.788 | 19.842 |
| LM545849/LM545810 | 234.95 | 314.325 | 49.212 |
| LM522546/LM522510 | 107.95 | 159.987 | 34.925 |
| LM501349/LM501414 | 41.275 | 73.431 | 21.43 |
| LM501349/LM501314 | 41.275 | 73.431 | 21.43 |
| LM501349/LM501311 | 41.275 | 73.431 | 23.012 |
| LM501349/LM501310 | 41.275 | 73.45 | 19.558 |
| LM48549X/LM48510 | 34.925 | 65.088 | 18.288 |
| LM48548A/LM48510 | 34.925 | 58.088 | 18.034 |
| LM48548/LM48511A | 34.925 | 65.088 | 21.082 |
| LM48548/LM48510A | 34.925 | 65.088 | 18.034 |
| LM48548/LM48510 | 34.925 | 65.088 | 18.034 |
| LM451349A/LM451310 | 266.7 | 355.6 | 57.15 |
| LM451349/LM451310 | 266.7 | 355.6 | 57.15 |
| LM451345/LM451310 | 263.525 | 355.6 | 57.15 |
| LM377449/LM377410 | 558.8 | 736.6 | 104.775 |
| LM300849/LM300811 | 40.988 | 67.975 | 17.5 |
| LM29749/LM29711 | 38.1 | 65.088 | 19.812 |
| LM29749/LM29710 | 38.1 | 65.088 | 18.034 |
| LM29748/LM29748 | 38.1 | 65.088 | 18.034 |
| LM29748/LM29710 | 38.1 | 65.088 | 18.034 |
| LM272249/LM272210 | 482.6 | 615.95 | 85.725 |
| L476549/L476510 | 549.275 | 692.15 | 80.962 |
| L467549/L467510 | 406.4 | 508 | 61.912 |
| L45449/L45410 | 29 | 50.292 | 14.224 |
| L44649/L44610 | 26.988 | 50.292 | 14.224 |
| L44649/L44120 | 26.9 | 50.3 | 14.22 |
| L44643L/L44610 | 25.4 | 50.292 | 14.22 |
| L44643/L44610 | 25.4 | 50.29 | 14.224 |
| L44642/L44610 | 25.4 | 50.292 | 14.224 |
| L44640/L44610 | 23.812 | 50.292 | 14.224 |
| L432348/L432310 | 158.75 | 205.583 | 23.812 |
| L357049NW/L3570100 | 304.8 | 393.7 | 107.95 |
