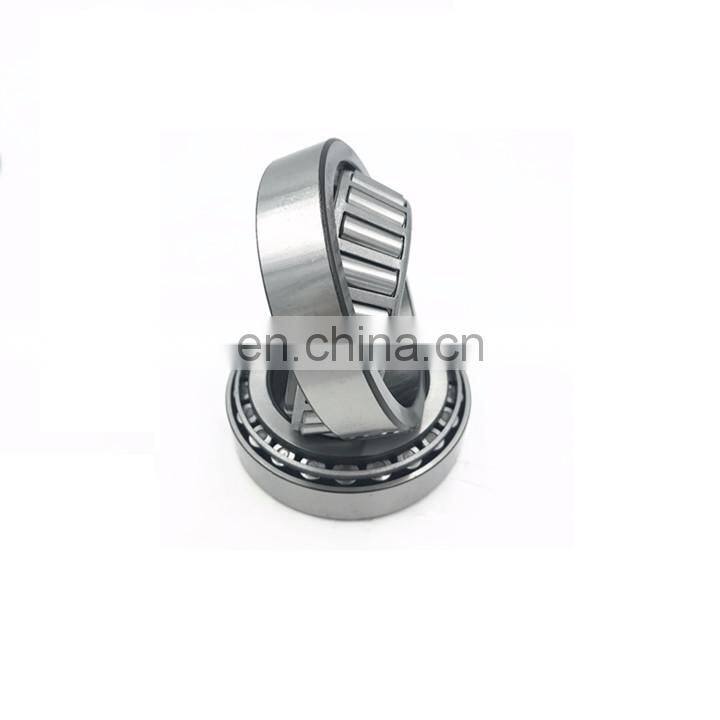

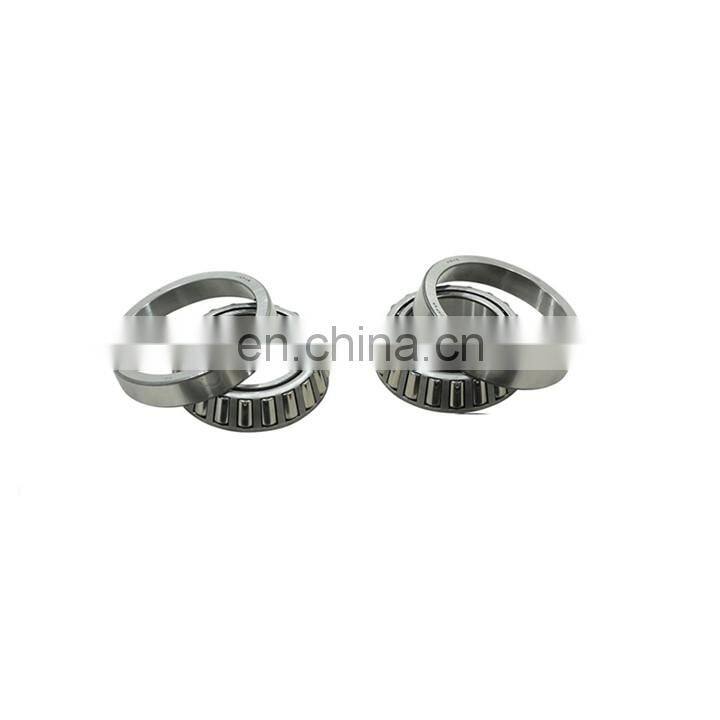

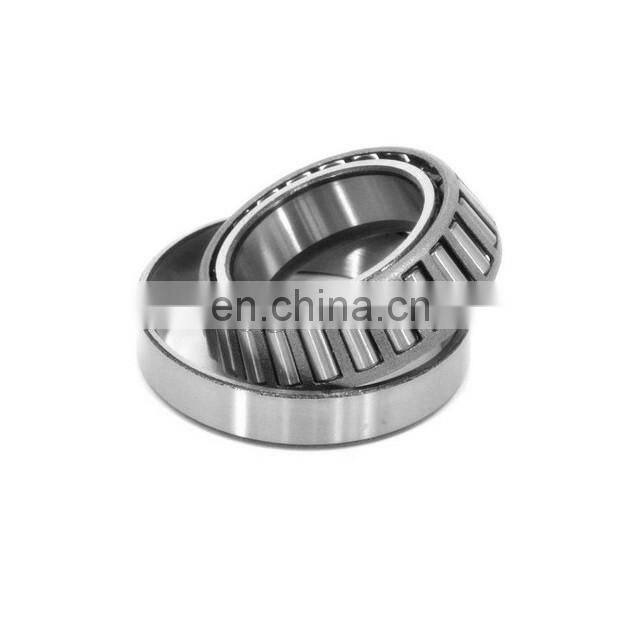

original germany bearing JL69345/310 tapered roller bearing JL69345/JL69310 size 38x63x17mm single row
Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.
Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.
Benefits:
Enhanced performance in demanding applications.
Specification: JL69345/JL69310 tapered roller bearing | |
Series |
metric bearing |
Bearing number of row |
single row bearing |
Bearing precision |
grade p4 p5 p6 p0 |
Bearing type |
tapered bearings |
Bearing material |
steel bearing, stainless steel bearing |
Bearing cage type |
steel cage bearing |
Cone part number |
JL69345 bearing cone |
Cup part number |
JL69310 bearing cup |
Bearing weight |
0.21Kg |
Dimensions: | |
d - Bore |
38mm |
D - Cup outer diameter |
63mm |
B - Cone width |
19mm |
C - Cup width |
13.5mm |
T - Bearing width |
17mm |
Tapered roller bearing size list:
| Bearing | Specification | Rated Load(KN) | Speed(r/min) | Weight | ||||
| No. | d(mm) | D(mm) | W(mm) | Cr(N) | Cor(N) | Grease | Oil | kg |
| 30202 | 15 | 35 | 11.75 | 15.8 | 14.4 | 22000 | 28000 | 0.053 |
| 30203 | 17 | 40 | 13.25 | 21.2 | 21.3 | 19000 | 27000 | 0.075 |
| 30204 | 20 | 47 | 15.25 | 28.2 | 30.6 | 22000 | 28000 | 0.126 |
| 30205 | 25 | 52 | 16.25 | 29.4 | 22.54 | 20000 | 25000 | 0.157 |
| 30206 | 30 | 62 | 17.25 | 45.4 | 50.5 | 18000 | 24000 | 0.231 |
| 30207 | 35 | 72 | 18.25 | 56.8 | 63.5 | 20000 | 25000 | 0.331 |
| 30208 | 40 | 80 | 19.75 | 63 | 74 | 17000 | 22000 | 0.422 |
| 30209 | 45 | 85 | 20.75 | 71.3 | 83.8 | 16000 | 22000 | 0.474 |
| 30210 | 50 | 90 | 21.75 | 73.3 | 92.1 | 17000 | 22000 | 0.53 |
| 30211 | 55 | 100 | 22.75 | 94.6 | 112.8 | 15000 | 20000 | 0.712 |
| 30212 | 60 | 110 | 23.75 | 103.3 | 130 | 14000 | 19000 | 0.904 |
| 30213 | 65 | 120 | 24.75 | 120.6 | 152.6 | 15000 | 20000 | 1.13 |
| 30214 | 70 | 125 | 26.25 | 138.3 | 173.7 | 13000 | 18000 | 1.261 |
| 30215 | 75 | 130 | 27.25 | 138.4 | 185.4 | 12000 | 16000 | 1.36 |
| 30216 | 80 | 140 | 28.25 | 167.7 | 212.9 | 13000 | 18000 | 1.675 |
| 30217 | 85 | 150 | 30.5 | 177.6 | 236.8 | 11000 | 16000 | 2.06 |
