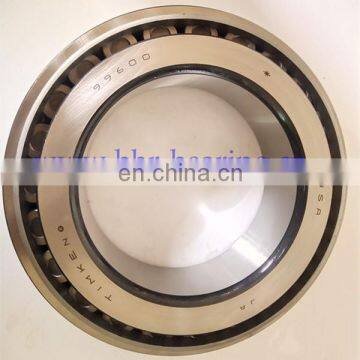

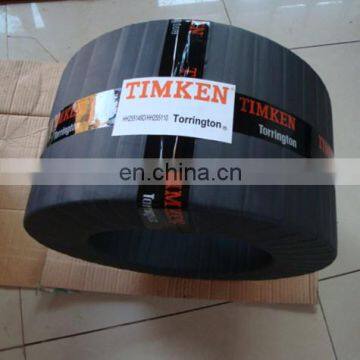

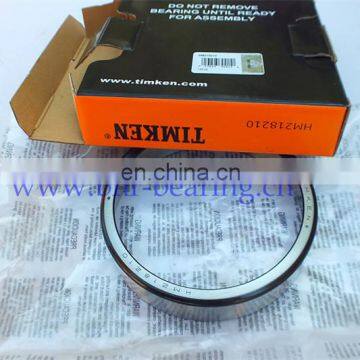

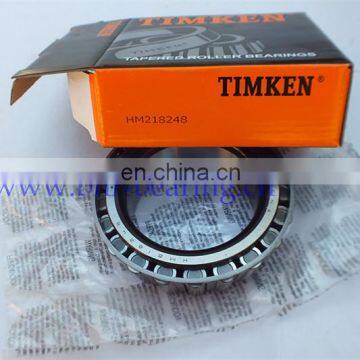

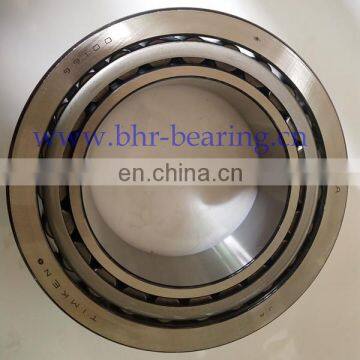

timken tapered roller bearing HM218248/HM218210 front wheel bearing for trailer
TIMKEN tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.
Specification: HM218248/HM218210 timken inch tapered roller bearing, single row | |
Bearing Series |
HM218200 |
Bearing Cone part number |
HM218248 |
Bearing Cup part number |
HM218210 |
Bearing weight |
2.50Kg |
Dimensions: | |
d - Bore |
89.974 mm |
D - Cup outer diameter |
146.975 mm |
B - Cone width |
40.000 mm |
C - Cup width |
32.499 mm |
T - Bearing width |
40.000 mm |
TIMKEN tapered roller bearings industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.
TIMKEN tapered roller bearings benefits:
Enhanced performance in demanding applications.
Types of TIMKEN tapered roller bearing:
bearing timken single row tapered roller bearing
bearing timken double row tapered roller bearing
bearing timken four row tapered roller bearing
bearing timken tapered roller wheel bearing
bearing timken inch series tapered roller bearing
bearing timken metric tapered roller bearing single row size list
| New bearing p.no. | Old bearing p.no | size (dxDxT) mm | Weight (kgs) |
| 32203 timken bearing | 7503E bearing timken | 17×40×17.25 | 0.104 |
| 32204 timken bearing | 7504E bearing timken | 20×47×19.25 | 0.158 |
| 32205 timken bearing | 7505E bearing timken | 25×52×19.25 | 0.199 |
| 32206 timken bearing | 7506E bearing timken | 30×62×21.25 | 0.282 |
| 32207 timken bearing | 7507E bearing timken | 35×72×24.25 | 0.449 |
| 32208 timken bearing | 7508E bearing timken | 40×80×24.75 | 0.533 |
| 32209 timken bearing | 7509E bearing timken | 45×85×24.75 | 0.583 |
| 32210 timken bearing | 7510E bearing timken | 50×90×24.75 | 0.614 |
| 32211 timken bearing | 7511E bearing timken | 55×100×26.75 | 0.849 |
| 32212 timken bearing | 7512E bearing timken | 60×110×29.75 | 1.100 |
| 32213 timken bearing | 7513E bearing timken | 65×120×32.75 | 1.570 |
| 32214 timken bearing | 7514E bearing timken | 70×125×33.25 | 1.560 |
| 32215 timken bearing | 7515E bearing timken | 75×130×33.25 | 1.560 |
| 32216 timken bearing | 7516E bearing timken | 80×140×32.25 | 2.000 |
| 32217 timken bearing | 7517E bearing timken | 85×150×38.5 | 2.690 |
| 32218 timken bearing | 7518E bearing timken | 90×160×42.5 | 3.300 |
| 32219 timken bearing | 7519E bearing timken | 95×170×45.5 | 4.180 |
| 32220 timken bearing | 7520E bearing timken | 100×180×40 | 5.140 |
| 32221 timken bearing | 7521E bearing timken | 105×90×53 | 6.340 |
| 32222 timken bearing | 7522E bearing timken | 110×200×56 | 7.430 |
| 32224 timken bearing | 7524E bearing timken | 120×215×61.5 | 9.600 |
