CO2/MIG/MAG welding machine& welding equipment & electric welder
Functions and features
1.IGBT inverter technology,energy saving,power frequency ,no noise
2.Clear Digital meter value showing,PWM pulse with control technology
3.Special performance,accurate current control,stable arc passing
4.Slow wire feeding,arc end with small balls clean,electronic and inductance
regulating,shielding gas post flow functions,well spatter control,good depth of fusion;
good welding effect
5.Over current,over heat,over load,over voltage protection.
Special appareance,wire feeder ingreted portable,
5.Suiatble for welding mid steel,low alloy steel metal sheet
Access:welding gun,earting clamp with cable,gas regulator,brush and hammer,protective mask
Basic Info.
| Model NO.: | MIG-315 |
|---|---|
| Type: | ARC Welders |
| current: | Direct Current |
| Export Markets: | Global |
Additional Info.
| Trademark: | Aoxiang,Julante,OEM brand |
|---|---|
| Packing: | as to Customer′s Request |
| Standard: | Portable MMA Welding Machines with CE |
| Origin: | China |
| HS Code: | 8515390000 |
| Production Capacity: | 500PCS/Day |
Product Description

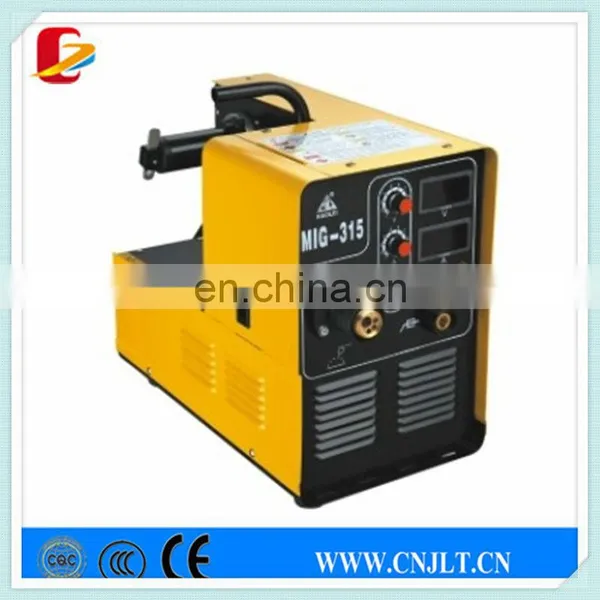

mig/mag co2 gas shielded welder equipment MAG-315 Features:
1. Adopting Advanced Inverter Technique and Excellent
Imported Capacity Equipment, High Working Efficiency, Small in Size and Light Weight.
2. Adopting Pulse Width Technique.
3. Protection Equipment are Set Internally to Prevent Over Heat, Over Current, Lack of Voltage to Ensure Safety Operation.
4. Simple Struture, Excellent Technics, Durability, Raliablity and Easy Maintenance.
Standard Accessories:
1.1.5m Cable With Electrode Holder 1 Piece
2.1.5m Cable With Earth Clamp 1 Piece
3. Hand-Held Shield With Glass 1 Piece
4. Hammer / Brush 1 Piece
IGBT MMA WELDING ACCESS:
Supplied complete with earth clamp,face mask and welding brush
Model Suitable welding wire Welding thickness
MIG-315 0.8-1.2MM 0.8-15MM
| MODEL ITEM | MIG/NBC-200Y | MIG/NBC-250Y | MIG/NBC-250F |
| INPUT POWER VOLTAGE FREQUENCY(V,HZ) | AC380(THREE PHASES)±15% 50/60 | AC380(THREE PHASES)±15% 50/60 | AC380(THREE PHASES)±15% 50/60 |
| RATED INPUT POWER CAPACITY(KWA) | 6 | 8.3 | 8.3 |
| OUTPUT CURRENT ADJUSTMENT RANGE (A) | 50-200 | 50-250 | 50-250 |
| OUTPUT VOLTAGE(V) | 16.5-24 | 16.5-26.5 | 16.5-26.5 |
| RATED DUTY CYCLE(%) | 60 | 60 | 60 |
| EFFICIENCY (%) | 85 | 85 | 85 |
| POWER FACTOR | 0.93 | 0.93 | 0.93 |
| INSULATION CLASS | F | F | F |
| TYPE OF WIRE FEEDER | INSIDE | INSIDE | OUTSIDE |
| OVERALL DIMENSION (MM) | 655x295x610 | 655x295x610 | 655x295x610 |
| PROTECTION CLASS OF CASE | IP21 | IP21 | IP21 |
| FEEDING SPEED(M/MIN) | 2.5-13 | 2.5-13 | 2.5-13 |
| POST-FLOVE TIME(S) | 1±0.5 | 1±0.5 | 1±0.5 |
| DIAMETER OF COIL(MM) | 270 | 270 | 270 |
| WEIGHT(KG) | 34 | 35 | 17.5 |
| DIAMETER OF EARTH CABLE(MM2) | ≥2.5 | ≥2.5 | ≥2.5 |
| WELDING THICKNESS(MM) | ≥0.8 | ≥0.8 | ≥0.8 |
| DIAMETER OF WELDING WIRE | 0.8/1.0 | 0.8/1.0 | 0.8/1.0 |
