INVERTER TIG/MMA Spot Welding Machine 50-60HZ ac Motor (CCC & CE QUALITY CERTIFICATE )

INVERTER TIG/MMA Spot Welding Machine 50-60HZ ac Motor (CCC & CE QUALITY CERTIFICATE ) thumbnail-1
INVERTER TIG/MMA Spot Welding Machine 50-60HZ ac Motor (CCC & CE QUALITY CERTIFICATE ) thumbnail-2
INVERTER TIG/MMA Spot Welding Machine 50-60HZ ac Motor (CCC & CE QUALITY CERTIFICATE ) thumbnail-3
INVERTER TIG/MMA Spot Welding Machine 50-60HZ ac Motor (CCC & CE QUALITY CERTIFICATE ) thumbnail-4
INVERTER TIG/MMA Spot Welding Machine 50-60HZ ac Motor (CCC & CE QUALITY CERTIFICATE ) thumbnail-5
INVERTER TIG/MMA Spot Welding Machine 50-60HZ ac Motor (CCC & CE QUALITY CERTIFICATE ) thumbnail-6

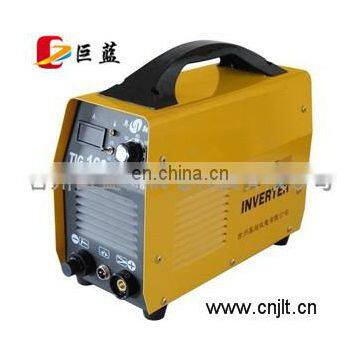

INVERTER TIG/MMA Spot Welding Machine 50-60HZ ac Motor (CCC & CE QUALITY CERTIFICATE ) photo-1
INVERTER TIG/MMA Spot Welding Machine 50-60HZ ac Motor (CCC & CE QUALITY CERTIFICATE ) photo-2
INVERTER TIG/MMA Spot Welding Machine 50-60HZ ac Motor (CCC & CE QUALITY CERTIFICATE ) photo-3
INVERTER TIG/MMA Spot Welding Machine 50-60HZ ac Motor (CCC & CE QUALITY CERTIFICATE ) photo-4
INVERTER TIG/MMA Spot Welding Machine 50-60HZ ac Motor (CCC & CE QUALITY CERTIFICATE ) photo-5
INVERTER TIG/MMA Spot Welding Machine 50-60HZ ac Motor (CCC & CE QUALITY CERTIFICATE ) photo-6
US$ 50 - 150 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
julante
Place of Origin:
Zhejiang, China
Type:
Other
Contact Supplier Request Quote Chat Now
Taizhou Julante Electromechanical Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name julante
Place of Origin Zhejiang, China
Type Other
Products Description
INVERTER TIG/MMA WELDING MACHINE(CCC & CE QUALITY CERTIFICATE )
Characteristic

1.Small measurement, portable, multi-purpose with TIG&MMA function.

2.HF arc staring with little current.

3.ARC FORCE can be adjustable, stronger welding penetration with stable current,high speed of dynamic-response.
Product Detailes
MODEL ITEM
TIG-180
TIG-200
TIG-250
TIG-300
TIG-400
TIG-500
Input power voltage,Frequency (V,HZ)
AC220V (SINGLE PHASE) ±10% 50/60 HZ
AC380V (THREE PHASE)±10% 50/60 HZ
Rated input power capacity (KVA)
3.9
4.5
6.3
8.3
13
19
No-load voltage (V)
56
56
54
54
55
60
Output current adjustment range (A)
10-180
20-200
20-250
20-300
20-400
20-500
Rated output voltage (V)
17.2
18
20
22
26
30
Rated duty cycle (%)
60
60
60
60
60
60
No-load loss (W)
40
40
40
60
100
100
Efficiency (%)
85
85
85
85
85
85
Pover factor (COSφ)
0.93
0.93
0.93
0.93
0.93
0.93
Gas post-flow time (S)
0-2.5
0-5
0-5
0-10
0-12
0-15
Arc force adjustment range (A)
-
0-60
0-60
0-60
0-100
0-130
Welding thickness (MM)
0.3-5
0.5-12
0.5-12
0.5-14
0.5-20
0.5-25
Current of MMA
10-160
20-200
20-220
20-230
20-380
20-400
Weight (KG)
8
13
19
21
35
37
Measurement (MM)
371x155x295
371x155x295
480x205x355
480x205x355
560x335x420
560x335x420
Insulation class
F
F
F
F
F
IP22
Protection class
IP23
IP23
IP23
IP23
IP23
IP23
Company Profile
About us
Taizhou Julante Electromechanical Technology Co.,LTD is a professional manufacturer of electric motor products.Have 22 years old in this business . Specialized in the production of three phase ac electric motor ,single phase ac electric motor ,internal concrete vibrator , external concrete vibrator ,air compressor ,water pump motor , Cutting machine, welding machine, grinder,ect .
