15KW 1500RPM Three Phase Induction Motor Foot Mounting Y160L-4

15KW 1500RPM Three Phase Induction Motor Foot Mounting Y160L-4 thumbnail-1
15KW 1500RPM Three Phase Induction Motor Foot Mounting Y160L-4 thumbnail-2
15KW 1500RPM Three Phase Induction Motor Foot Mounting Y160L-4 thumbnail-3
15KW 1500RPM Three Phase Induction Motor Foot Mounting Y160L-4 thumbnail-4
15KW 1500RPM Three Phase Induction Motor Foot Mounting Y160L-4 thumbnail-5
15KW 1500RPM Three Phase Induction Motor Foot Mounting Y160L-4 thumbnail-6
15KW 1500RPM Three Phase Induction Motor Foot Mounting Y160L-4 photo-1

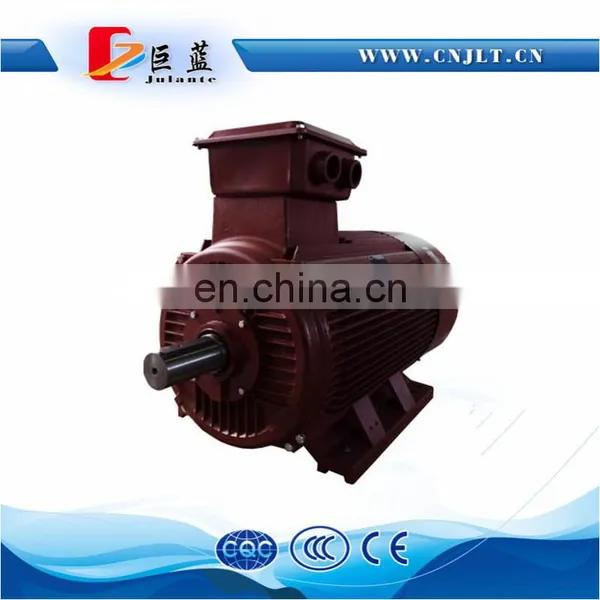

15KW 1500RPM Three Phase Induction Motor Foot Mounting Y160L-4 photo-2

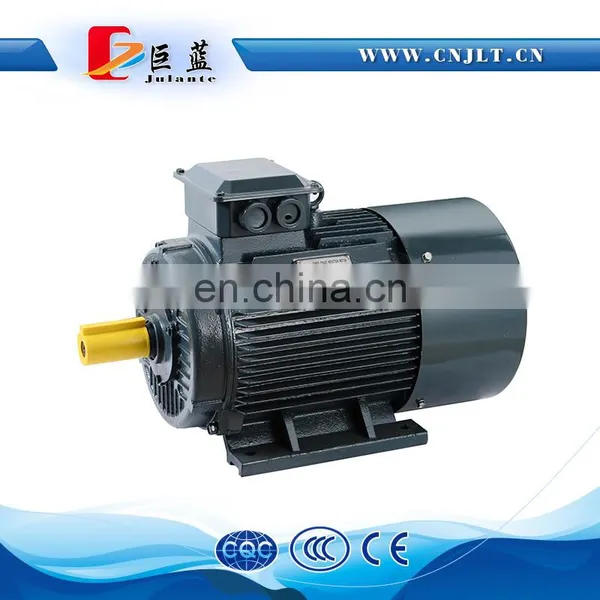

15KW 1500RPM Three Phase Induction Motor Foot Mounting Y160L-4 photo-3

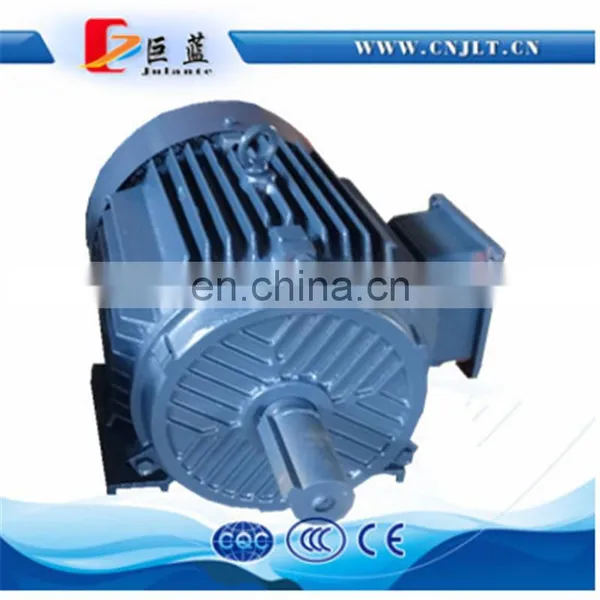

15KW 1500RPM Three Phase Induction Motor Foot Mounting Y160L-4 photo-4

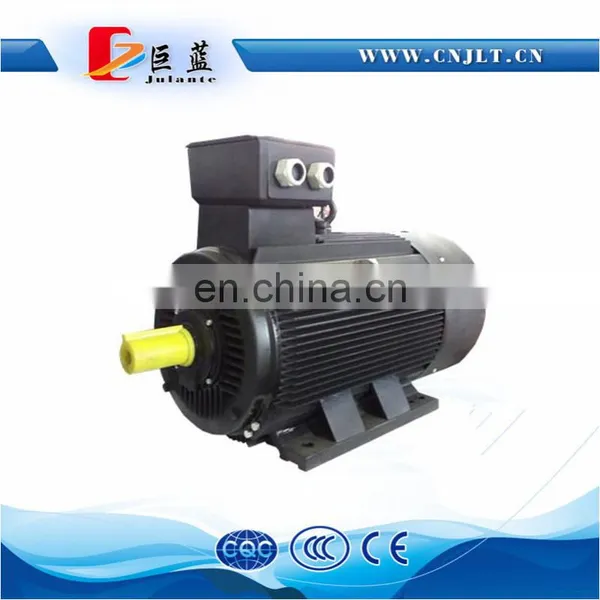

15KW 1500RPM Three Phase Induction Motor Foot Mounting Y160L-4 photo-5
15KW 1500RPM Three Phase Induction Motor Foot Mounting Y160L-4 photo-6
US$ 207.31 - 207.4 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
JULANTE
Place of Origin:
Zhejiang, China
Model Number:
Y-160L-4
Contact Supplier Request Quote Chat Now
Taizhou Julante Electromechanical Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO /SHANGHAI / Buyer's designated port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JULANTE
Place of Origin Zhejiang, China
Model Number Y-160L-4

15KW 1500RPM three phase induction motor foot mounting Y160L-4

our  Taizhou Julante Factory is Specialized in induction Motor Production



Welcome to visit our website.   http://www.zjjlt.en.china.cn/



We are a manufacturer but we can also supply the OEM service, Special motors can be designed according to customers' requirements .



product Description

Product Information:



 Y2 series motors are totally enclosed fan cooled(TEFC). suqirrel cage three phase induction motors,developed with new technique. They are renewal  and upgrading products of Yseries. The mouting dimension is fully comformed with IEC standard,

The motors have merits of beautiful modeling,compacts structure,low noise,high efficency,large staring torque,easy serving,etc,The motors are adopted with F class insulation and designed with assessing method for insulation practice, it enhances greatly motor's safety and reliablity. These motors have reached an international advanced level Y2 series motors can be

widely used in various machines and equipment,

such as drilling machines,blowers,pumps,compressors,transporters,

agricultural and food processing machines





 Operating Condition :



Ambient tempertature: -15°c≤0≤40°c                                              Duty/Rating: Continous(S1)

Altitude: Not exceeding 1000meters                                                Insultation calss:Class B/ Class F

Rated voltage:380V±5%                                                                 Protection class:The main class body of motor IP54

Rated frequency:50HZ/60HZ                                                                                  The terminal box IP55

Connection:Y srating-Connection for 3kw and below                        Cooling type: IC0141

Δ Date-Connection for 3kw or more



Mounting way :



 15KW 1500RPM three phase induction motor foot mounting Y160L-4



Technical Data :



Model Outpower Speed Size
KW HP r/min mm
380V 50HZ 2POLE
Y-80M1-2 0.75 1 2825  290*233*175
 Y-80M2-2  1.10  1.5  2825  290*233*175
 Y-90S-2  1.5  2  2840  315*250*195
 Y-90L-2  2.2  3  2840  340*250*195
 Y-100L-2  3  4  2880  380*283*245
 Y-112M-2  4  5.5  2890  400*313*265
 Y-132S1-2  5.5  7.5  2900  475*350*315
 Y-132S2-2  7.5  10  2900  475*350*315
 Y-160M1-2  11  15  2930  605*430*385
 Y-160M2-2  15  20  2930  605*430*385
 Y-160L-2  18.5  25  2930  650*430*385
 Y-180M-2  22  30  2940  670*462*430
 Y-200L1-2  30  40  2950  775*512*475
 Y-200L2-2  37 50  2950  775*512*475
 Y-225M-2  45 60  2970  820*562*530
Y-280S-2  75  100  2970  1000*685*640
Y-280M-2   90  125 2970  1050*685*640
 Y-315S-2  110  150  2980  1240*948*865
 Y-315M-2  132  180  2980  1310*948*865
 Y-315L1-2 160  215  2980  1310*948*865
Y-315L2-2  200  270  2980  1310*948*865
Y-355M1-2  220  300  2980  1500*1020*1010
 Y-355M2-2 250  340  2980  1530*1020*1010
Y-355L1-2  280  380  2980  1530*1020*1010
Y-355L2-2  315  420  2980  1530*1020*1010



Model Outpower Speed Size
KW HP r/min mm
                                                           380V 50HZ 4POLE
Y-80M1-4 0.55 0.75 1390  290*233*175
 Y-80M2-4  0.75  1  1390  290*233*175
 Y-90S-4  1.1  1.5  1390  315*250*195
 Y-90L-4  1.5  2  1400  340*250*195
 Y-100L1-4  2.2  3  1430  380*283*245
 Y-100L2-4  3  4  1430  380*283*245
 Y-112M-4  4 5.5  1440  400*313*265
 Y-132S-4  5.5  7.5  1440  475*350*315
 Y-132M-4  7.5  10  1440  515*350*315
 Y-160M-4  11  15  1460  605*430*385
 Y-160L-4  15  20  1460  650*430*385
 Y-180M-4  18.5  25  1470  670*462*430
 Y-180L-4  22  30  1470  710*462*430
 Y-200L-4  30 40  1470  775*512*475
 Y-225S-4  37 50  1480  820*562*530
Y-225M-4  45  60  1480  845*562*530
Y-250M-4   55  75 1480  930*630*575
 Y-280S-4  75  100  1480  1000*685*640
 Y-280M-4  90  125  1480  1050*685*640
 Y-315S-4 110  150  1480  1310*948*865
Y-315M-4 132  180 1490 1340*948*865
Y-315L1-4 160 215  1490  1340*948*865
 Y-315L2-4 200  270  1490  1340*948*865
Y-355M1-4  220  300  1490  1500*1020*1010
Y-355M3-4  250  340  1490  1530*1020*1010



Model Outpower Speed Size
KW HP r/min mm
                                                             380V 50HZ 6POLE
Y-80M-6 0.37 0.5 900  290*233*175
 Y-80M1-6  0.55  0.75  900  290*233*175
 Y-90S-6  0.75  1  910  315*250*195
 Y-90L-6  1.10  1.5  910  340*250*195
 Y-100L-6  1.50  2  940  380*283*245
 Y-112M-6  2.2  3  940  400*313*265
 Y-132S-6  3 4  960  475*350*315
 Y-132M1-6  4  5.5  960  475*350*315
 Y-132M2-6  5.5  7.5  960  515*350*315
 Y-160M-6  7.5  10  970  605*430*385
 Y-160L-6  11  15  970  650*430*385
 Y-180L-6  15  20  970  710*462*430
 Y-200L1-6  18.50  25  970  775*512*475
 Y-200L2-6  22 30  970  775*512*475
 Y-225M-6  30 40  980  845*562*530
Y-250M-6  37  50  980  930*630*575
Y-280S-6   45  60 980  1000*685*640
 Y-280M-6  55  75  980  1050*685*640
 Y-315S-6  75  100  990  1270*948*965
 Y-315M-6 90  125  990  1340*948*865
Y-315L1-6 110  150 990 1340*948*865
Y-315L2-6 132 180  990  1340*948*865
 Y-355M1-6 160  215  990  1500*1020*1010
Y-355M2-6  185  250  990  1500*1020*1010
Y-355M4-6  200  270  990  1530*1020*1010





  CAST IRON BODY :

15KW 1500RPM three phase induction motor foot mounting Y160L-4



  ALUMINUM BODY :

15KW 1500RPM three phase induction motor foot mounting Y160L-4



WORKSHOPE :

15KW 1500RPM three phase induction motor foot mounting Y160L-4

 15KW 1500RPM three phase induction motor foot mounting Y160L-4



Packaging & Shipping

 ac  motor  Packing And Warehouse Image



15KW 1500RPM three phase induction motor foot mounting Y160L-4





Company Information



Taizhou Julante Electromechanical Technology Co.,LTD  is a professional manufacturer of electric motor products.Have 22 years old in this business . Specialized in the production of three phase  ac electric motor ,single phase ac electric motor ,internal concrete vibrator , external concrete vibrator ,air compressor ,water pump motor , Cutting machine, welding machine, grinder,ect .







 OUR FACTORY :

15KW 1500RPM three phase induction motor foot mounting Y160L-4



OUR  FRIENDS AND EQUIPMENT :

15KW 1500RPM three phase induction motor foot mounting Y160L-4





Certifications

Our Certifications have  CCC / CQC / CE / ISO9001.







15KW 1500RPM three phase induction motor foot mounting Y160L-4





FAQ



Q: What is your payment term?

A: 30% T/T in advance, 70% when receiving B/L copy. Or irrevocable L/C.

Q: What is your lead time?

A: Within 10 days after receiving deposit or original L/C.

Q: Do you offer OEM service?

A: Yes. We manufacturer can custom designed for any specific application.

Q: Are your motors expensive?

A: No. Our design team works with end users and OEM's to provide the lowest total life cycle cost solution. If continuous operation is critical to your operation, our Technologies can design and manufacturer a motor to your specific or unique needs to avoid costly equipment down time.





Our Services

 Our  Services





Pre-sales service:


•We value every inquiry sent to us, ensure quick competitive offer within 12 hours.

•We cooperate with customer to design and develop the new products. Provide all necessary document.

•We are a sales team, with all technical support from engineer team.


After sales service:

•We respect your feed back after receive the goods.

•We provide 12-24 months warranty after goods arrive.

•We promise all spare parts available in lifetime use.

•We lodge your complain within 48hours.







free to contact us if you are interested in our electric motors.
