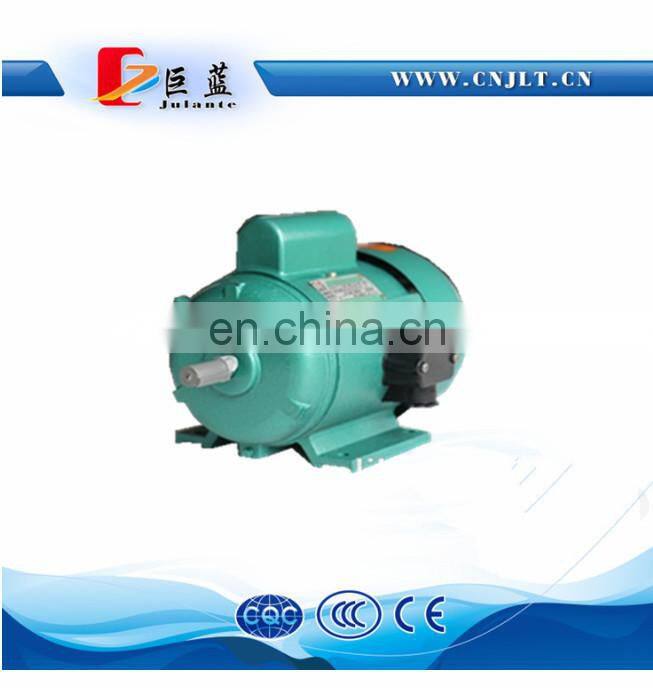

single phase electric motor IMB3 FOOT MOUNT
Welcome to visit our website. http://www.zjjlt.en.china.cn/
We are a manufacturer but we can also supply the OEM servic e, Special motors can be designed according to customers' requirements .
Product Information:
JY Series single-phase capacitor start induction motor is suitable for any where a larger starting torque and the starting current to be limited are required, and is used as driving motor of air compressors, refrigerators, medical apparatus and other small machines in which full-loaded starting is demanded.
These series motors having 3 frame sizes 09, 1 and 2 are of totally enclosed fan cooled. The frames are made of cast iron or cast aluminum according to the request.
Type |
Input Power |
Current(A) |
Power Factor |
EFF(%) |
Speed(r/min) |
|
KW |
HP |
|||||
JY09B-2 |
0.18 |
1/4 |
2.15 |
0.76 |
50 |
2800 |
JY09A-2 |
0.25 |
1/3 |
2.82 |
0.76 |
53 |
2800 |
JY1B-2 |
0.37 |
1/2 |
3.74 |
0.75 |
60 |
2800 |
JY1A-2 |
0.55 |
3/4 |
5.36 |
0.74 |
63 |
2800 |
JY2B-2 |
0.75 |
1 |
6.81 |
0.77 |
65 |
2800 |
JY2A-2 |
1.1 |
1.5 |
9.45 |
0.79 |
67 |
2800 |
JY09B-4 |
0.12 |
1/6 |
1.7 |
0.63 |
48 |
1400 |
JY09A-4 |
0.18 |
1/4 |
2.52 |
0.65 |
50 |
1400 |
JY1B-4 |
0.25 |
1/3 |
3.2 |
0.67 |
53 |
1400 |
JY1A-4 |
0.37 |
1/2 |
4.03 |
0.72 |
58 |
1400 |
JY2B-4 |
0.55 |
3/4 |
5.12 |
0.74 |
66 |
1400 |
JY2A-4 |
0.75 |
1 |
6.92 |
0.68 |
67 |
1400 |
CAST IRON BODY :

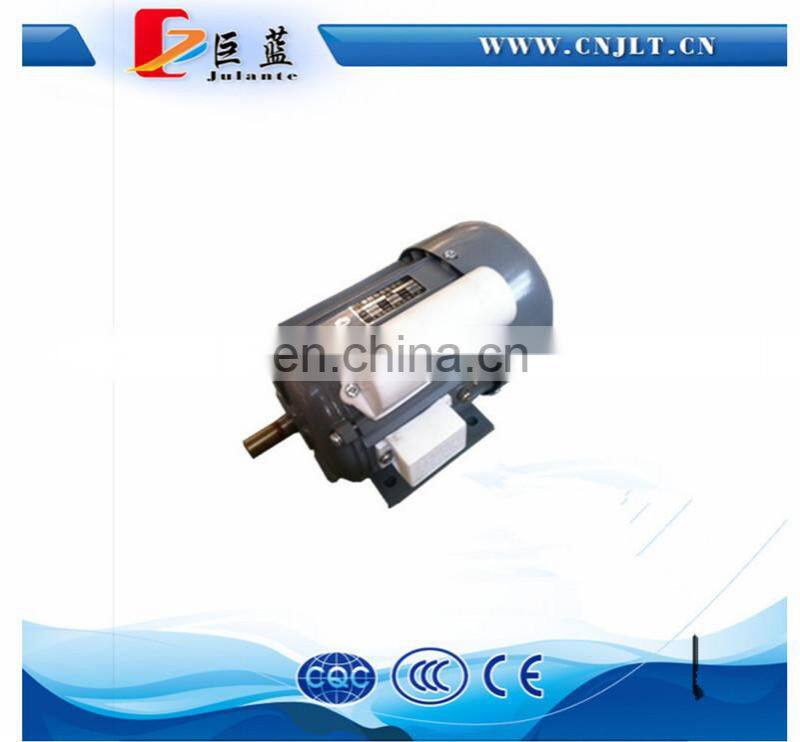

ALUMINUM BODY :
MATERIAL SHOW:

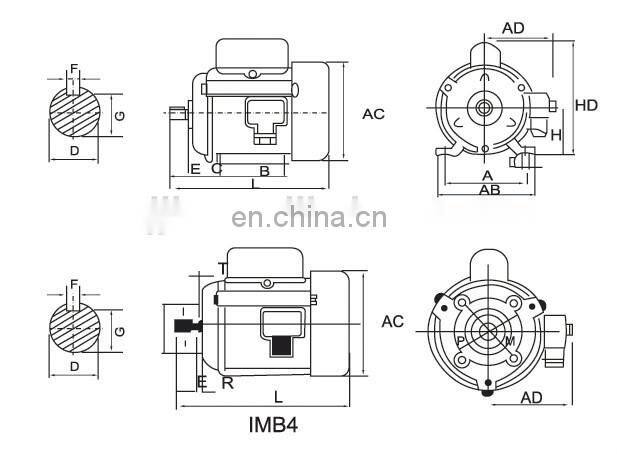

MOUNTING WAY :
B3 B5 B14 B35 B34
two-value capactior motor Packing And Warehouse Image
frame :63-100 carton
frame :112-132 plywood
Taizhou Julante Electromechanical Technology Co.,LTD is a professional manufacturer of electric motor products.Have 22 years old in this business . Specialized in the production of three phase ac electric motor ,single phase ac electric motor ,internal concrete vibrator , external concrete vibrator ,air compressor ,water pump motor , Cutting machine, welding machine, grinder,ect .
OUR FACTORY :
OUR FRIENDS AND EQUIPMENT :
Our Certifications have CCC / CQC / CE / ISO9001.
Q: What is your payment term?
A: 30% T/T in advance, 70% when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: Within 10 days after receiving deposit or original L/C.
Q: Do you offer OEM service?
A: Yes. We manufacturer can custom designed for any specific application.
Q: Are your motors expensive?
A: No. Our design team works with end users and OEM's to provide the lowest total life cycle cost solution. If continuous operation is critical to your operation, our Technologies can design and manufacturer a motor to your specific or unique needs to avoid costly equipment down time.
Our Services
Pre-sales service:
•We value every inquiry sent to us, ensure quick competitive offer within 12 hours.
•We cooperate with customer to design and develop the new products. Provide all necessary document.
•We are a sales team, with all technical support from engineer team.
After sales service:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We lodge your complain within 48hours.
free to contact us if you are interested in our electric motors.
