Home > Products > Electric Motor > 1.1kw 2800rpm three phase foot mounting induction motor

1.1kw 2800rpm three phase foot mounting induction motor

Name: 1.1kw 2800rpm three phase foot mounting induction motor
Brand: JULANTE
Availability: InStock

FOB Price

USD $33.85 - $33.85 / Piece

20 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JULANTE		Place of Origin	Zhejiang, China
Model Number	Y-80M2-2

Product Description

1.1kw 2800rpm three phase foot mounting induction motor

our Taizhou Julante Factory is Specialized in induction Motor Production

Welcome to visit our website. http://www.zjjlt.en.china.cn/

We are a manufacturer but we can also supply the OEM service, Special motors can be designed according to customers' requirements .

product Description

Product Information:

Y2 series motors are totally enclosed fan cooled(TEFC). suqirrel cage three phase induction motors,developed with new technique. They are renewal and upgrading products of Yseries. The mouting dimension is fully comformed with IEC standard,

The motors have merits of beautiful modeling,compacts structure,low noise,high efficency,large staring torque,easy serving,etc,The motors are adopted with F class insulation and designed with assessing method for insulation practice, it enhances greatly motor's safety and reliablity. These motors have reached an international advanced level Y2 series motors can be

widely used in various machines and equipment,

such as drilling machines,blowers,pumps,compressors,transporters,

agricultural and food processing machines

Operating Condition :

Ambient tempertature: -15°c≤0≤40°c Duty/Rating: Continous(S1)

Altitude: Not exceeding 1000meters Insultation calss:Class B/ Class F

Rated voltage:380V±5% Protection class:The main class body of motor IP54

Rated frequency:50HZ/60HZ The terminal box IP55

Connection:Y srating-Connection for 3kw and below Cooling type: IC0141

Δ Date-Connection for 3kw or more

Mounting way :

Technical Data :

Model	Outpower		Speed	Size
Model	KW	HP	r/min	mm
380V 50HZ 2POLE
Y-80M1-2	0.75	1	2825	290233175
Y-80M2-2	1.10	1.5	2825	*290233175*
Y-90S-2	1.5	2	2840	315250195
Y-90L-2	2.2	3	2840	340250195
Y-100L-2	3	4	2880	380283245
Y-112M-2	4	5.5	2890	400313265
Y-132S1-2	5.5	7.5	2900	475350315
Y-132S2-2	7.5	10	2900	475350315
Y-160M1-2	11	15	2930	605430385
Y-160M2-2	15	20	2930	605430385
Y-160L-2	18.5	25	2930	650430385
Y-180M-2	22	30	2940	670462430
Y-200L1-2	30	40	2950	775512475
Y-200L2-2	37	50	2950	775512475
Y-225M-2	45	60	2970	820562530
Y-280S-2	75	100	2970	1000685640
Y-280M-2	90	125	2970	1050685640
Y-315S-2	110	150	2980	1240948865
Y-315M-2	132	180	2980	1310948865
Y-315L1-2	160	215	2980	1310948865
Y-315L2-2	200	270	2980	1310948865
Y-355M1-2	220	300	2980	150010201010
Y-355M2-2	250	340	2980	153010201010
Y-355L1-2	280	380	2980	153010201010
Y-355L2-2	315	420	2980	153010201010

Model	Outpower		Speed	Size
Model	KW	HP	r/min	mm
380V 50HZ 4POLE
Y-80M1-4	0.55	0.75	1390	290233175
Y-80M2-4	0.75	1	1390	290233175
Y-90S-4	1.1	1.5	1390	315250195
Y-90L-4	1.5	2	1400	340250195
Y-100L1-4	2.2	3	1430	380283245
Y-100L2-4	3	4	1430	380283245
Y-112M-4	4	5.5	1440	400313265
Y-132S-4	5.5	7.5	1440	475350315
Y-132M-4	7.5	10	1440	515350315
Y-160M-4	11	15	1460	605430385
Y-160L-4	15	20	1460	650430385
Y-180M-4	18.5	25	1470	670462430
Y-180L-4	22	30	1470	710462430
Y-200L-4	30	40	1470	775512475
Y-225S-4	37	50	1480	820562530
Y-225M-4	45	60	1480	845562530
Y-250M-4	55	75	1480	930630575
Y-280S-4	75	100	1480	1000685640
Y-280M-4	90	125	1480	1050685640
Y-315S-4	110	150	1480	1310948865
Y-315M-4	132	180	1490	1340948865
Y-315L1-4	160	215	1490	1340948865
Y-315L2-4	200	270	1490	1340948865
Y-355M1-4	220	300	1490	150010201010
Y-355M3-4	250	340	1490	153010201010

Model	Outpower		Speed	Size
Model	KW	HP	r/min	mm
380V 50HZ 6POLE
Y-80M-6	0.37	0.5	900	290233175
Y-80M1-6	0.55	0.75	900	290233175
Y-90S-6	0.75	1	910	315250195
Y-90L-6	1.10	1.5	910	340250195
Y-100L-6	1.50	2	940	380283245
Y-112M-6	2.2	3	940	400313265
Y-132S-6	3	4	960	475350315
Y-132M1-6	4	5.5	960	475350315
Y-132M2-6	5.5	7.5	960	515350315
Y-160M-6	7.5	10	970	605430385
Y-160L-6	11	15	970	650430385
Y-180L-6	15	20	970	710462430
Y-200L1-6	18.50	25	970	775512475
Y-200L2-6	22	30	970	775512475
Y-225M-6	30	40	980	845562530
Y-250M-6	37	50	980	930630575
Y-280S-6	45	60	980	1000685640
Y-280M-6	55	75	980	1050685640
Y-315S-6	75	100	990	1270948965
Y-315M-6	90	125	990	1340948865
Y-315L1-6	110	150	990	1340948865
Y-315L2-6	132	180	990	1340948865
Y-355M1-6	160	215	990	150010201010
Y-355M2-6	185	250	990	150010201010
Y-355M4-6	200	270	990	153010201010

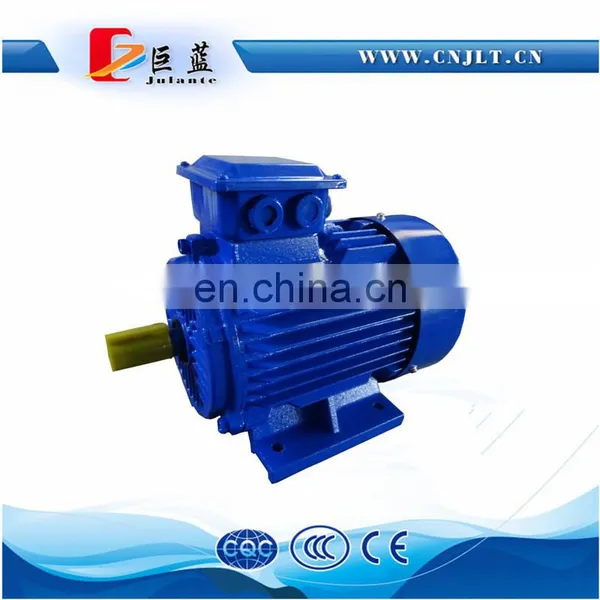

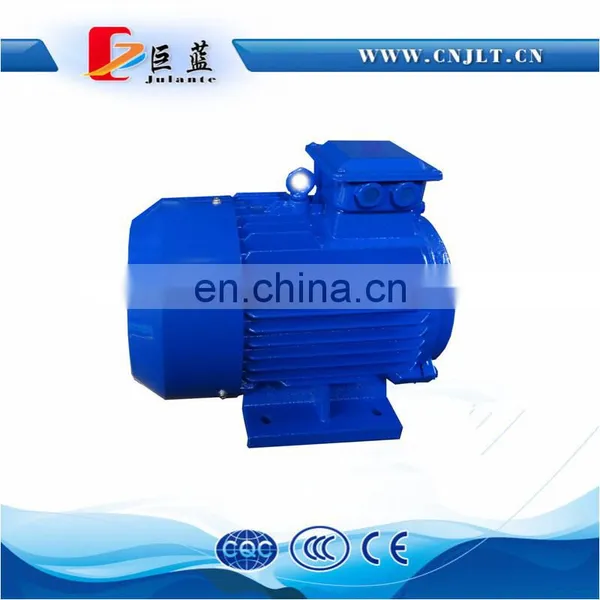

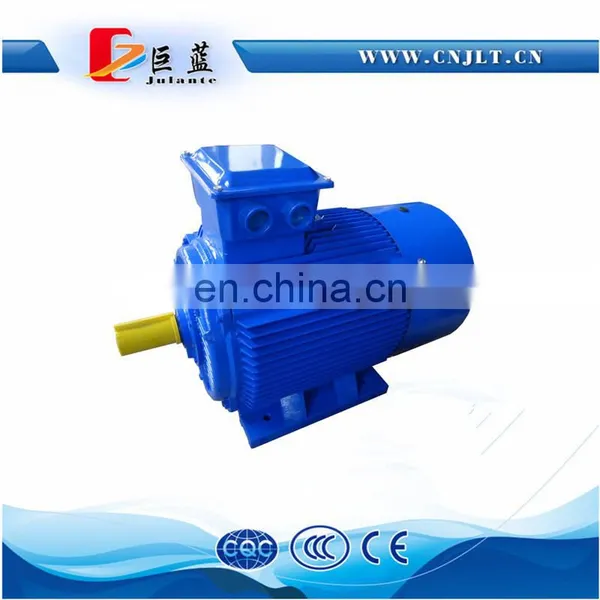

CAST IRON BODY :

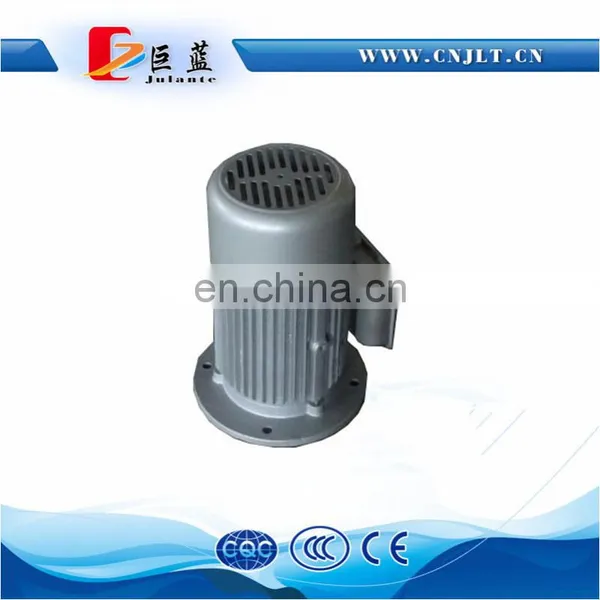

ALUMINUM BODY :

WORKSHOPE :

Packaging & Shipping

ac motor Packing And Warehouse Image

Company Information

Taizhou Julante Electromechanical Technology Co.,LTD is a professional manufacturer of electric motor products.Have 22 years old in this business . Specialized in the production of three phase ac electric motor ,single phase ac electric motor ,internal concrete vibrator , external concrete vibrator ,air compressor ,water pump motor , Cutting machine, welding machine, grinder,ect .

OUR FACTORY :

OUR FRIENDS AND EQUIPMENT :

Certifications

Our Certifications have CCC / CQC / CE / ISO9001.

FAQ

Q: What is your payment term?

A: 30% T/T in advance, 70% when receiving B/L copy. Or irrevocable L/C.

Q: What is your lead time?

A: Within 10 days after receiving deposit or original L/C.

Q: Do you offer OEM service?

A: Yes. We manufacturer can custom designed for any specific application.

Q: Are your motors expensive?

A: No. Our design team works with end users and OEM's to provide the lowest total life cycle cost solution. If continuous operation is critical to your operation, our Technologies can design and manufacturer a motor to your specific or unique needs to avoid costly equipment down time.

Our Services

Our Services

Pre-sales service:

•We value every inquiry sent to us, ensure quick competitive offer within 12 hours.

•We cooperate with customer to design and develop the new products. Provide all necessary document.

•We are a sales team, with all technical support from engineer team.

After sales service:

•We respect your feed back after receive the goods.

•We provide 12-24 months warranty after goods arrive.

•We promise all spare parts available in lifetime use.

•We lodge your complain within 48hours.

free to contact us if you are interested in our electric motors.
