1.5KW 2HP 2800RPM CE Electric Motor

1.5KW 2HP 2800RPM CE Electric Motor thumbnail-1
1.5KW 2HP 2800RPM CE Electric Motor thumbnail-2
1.5KW 2HP 2800RPM CE Electric Motor thumbnail-3
1.5KW 2HP 2800RPM CE Electric Motor thumbnail-4
1.5KW 2HP 2800RPM CE Electric Motor thumbnail-5
1.5KW 2HP 2800RPM CE Electric Motor thumbnail-6
1.5KW 2HP 2800RPM CE Electric Motor photo-1
1.5KW 2HP 2800RPM CE Electric Motor photo-2
1.5KW 2HP 2800RPM CE Electric Motor photo-3
1.5KW 2HP 2800RPM CE Electric Motor photo-4

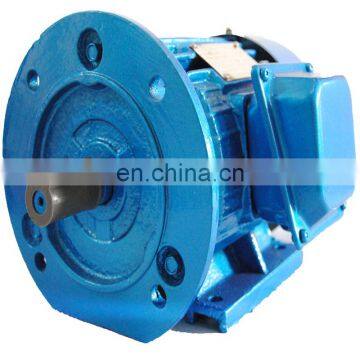

1.5KW 2HP 2800RPM CE Electric Motor photo-5
1.5KW 2HP 2800RPM CE Electric Motor photo-6
US$ 38.78 - 39 MOQ: 30 Pieces
Key Specifications
Get Latest Price
Brand Name:
JULANTE ce electric motor
Place of Origin:
Zhejiang, China
Model Number:
Y2-90S-2
Contact Supplier Request Quote Chat Now
Taizhou Julante Electromechanical Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JULANTE ce electric motor
Place of Origin Zhejiang, China
Model Number Y2-90S-2

1.5KW 2HP 2800RPM CE Electric Motor





our  Taizhou Julante Factory is Specialized in induction Motor Production



Welcome to visit our website.   http://www.zjjlt.en.china.cn/



We are a manufacturer but we can also supply the OEM service, Special motors can be designed according to customers' requirements .



product Description

Product Information:



 Y2 series motors are totally enclosed fan cooled(TEFC). suqirrel cage three phase induction motors,developed with new technique. They are renewal  and upgrading products of Yseries. The mouting dimension is fully comformed with IEC standard,

The motors have merits of beautiful modeling,compacts structure,low noise,high efficency,large staring torque,easy serving,etc,The motors are adopted with F class insulation and designed with assessing method for insulation practice, it enhances greatly motor's safety and reliablity. These motors have reached an international advanced level Y2 series motors can be

widely used in various machines and equipment,

such as drilling machines,blowers,pumps,compressors,transporters,

agricultural and food processing machines





 Operating Condition :



Ambient tempertature: -15°c≤0≤40°c                                              Duty/Rating: Continous(S1)

Altitude: Not exceeding 1000meters                                                Insultation calss:Class B/ Class F

Rated voltage:380V±5%                                                                 Protection class:The main class body of motor IP54

Rated frequency:50HZ/60HZ                                                                                  The terminal box IP55

Connection:Y srating-Connection for 3kw and below                        Cooling type: IC0141

Δ Date-Connection for 3kw or more



Mounting way :



 1.5KW 2HP 2800RPM CE Electric Motor



Technical Data :



Model Outpower Speed Size
KW HP r/min mm
380V 50HZ 2POLE
Y2-80M1-2 0.75 1 2825  290*233*175
 Y2-80M2-2  1.10  1.5  2825  290*233*175
 Y2-90S-2  1.5  2  2840  315*250*195
 Y2-90L-2  2.2  3  2840  340*250*195
 Y2-100L-2  3  4  2880  380*283*245
 Y2-112M-2  4  5.5  2890  400*313*265
 Y2-132S1-2  5.5  7.5  2900  475*350*315
 Y2-132S2-2  7.5  10  2900  475*350*315
 Y2-160M1-2  11  15  2930  605*430*385
 Y2-160M2-2  15  20  2930  605*430*385
 Y2-160L-2  18.5  25  2930  650*430*385
 Y2-180M-2  22  30  2940  670*462*430
 Y2-200L1-2  30  40  2950  775*512*475
 Y2-200L2-2  37 50  2950  775*512*475
 Y2-225M-2  45 60  2970  820*562*530
Y2-280S-2  75  100  2970  1000*685*640
Y2-280M-2   90  125 2970  1050*685*640
 Y2-315S-2  110  150  2980  1240*948*865
 Y2-315M-2  132  180  2980  1310*948*865
 Y2-315L1-2 160  215  2980  1310*948*865
Y2-315L2-2  200  270  2980  1310*948*865
Y2-355M1-2  220  300  2980  1500*1020*1010
 Y2-355M2-2 250  340  2980  1530*1020*1010
Y2-355L1-2  280  380  2980  1530*1020*1010
Y2-355L2-2  315  420  2980  1530*1020*1010



Model Outpower Speed Size
KW HP r/min mm
                                                           380V 50HZ 4POLE
Y2-80M1-4 0.55 0.75 1390  290*233*175
 Y2-80M2-4  0.75  1  1390  290*233*175
 Y2-90S-4  1.1  1.5  1390  315*250*195
 Y2-90L-4  1.5  2  1400  340*250*195
 Y2-100L1-4  2.2  3  1430  380*283*245
 Y2-100L2-4  3  4  1430  380*283*245
 Y2-112M-4  4 5.5  1440  400*313*265
 Y2-132S-4  5.5  7.5  1440  475*350*315
 Y2-132M-4  7.5  10  1440  515*350*315
 Y2-160M-4  11  15  1460  605*430*385
 Y2-160L-4  15  20  1460  650*430*385
 Y2-180M-4  18.5  25  1470  670*462*430
 Y2-180L-4  22  30  1470  710*462*430
 Y2-200L-4  30 40  1470  775*512*475
 Y2-225S-4  37 50  1480  820*562*530
Y2-225M-4  45  60  1480  845*562*530
Y2-250M-4   55  75 1480  930*630*575
 Y2-280S-4  75  100  1480  1000*685*640
 Y2-280M-4  90  125  1480  1050*685*640
 Y2-315S-4 110  150  1480  1310*948*865
Y2-315M-4 132  180 1490 1340*948*865
Y2-315L1-4 160 215  1490  1340*948*865
 Y2-315L2-4 200  270  1490  1340*948*865
Y2-355M1-4  220  300  1490  1500*1020*1010
Y2-355M3-4  250  340  1490  1530*1020*1010



Model Outpower Speed Size
KW HP r/min mm
                                                             380V 50HZ 6POLE
Y2-80M-6 0.37 0.5 900  290*233*175
 Y2-80M1-6  0.55  0.75  900  290*233*175
 Y2-90S-6  0.75  1  910  315*250*195
 Y2-90L-6  1.10  1.5  910  340*250*195
 Y2-100L-6  1.50  2  940  380*283*245
 Y2-112M-6  2.2  3  940  400*313*265
 Y2-132S-6  3 4  960  475*350*315
 Y2-132M1-6  4  5.5  960  475*350*315
 Y2-132M2-6  5.5  7.5  960  515*350*315
 Y2-160M-6  7.5  10  970  605*430*385
 Y2-160L-6  11  15  970  650*430*385
 Y2-180L-6  15  20  970  710*462*430
 Y2-200L1-6  18.50  25  970  775*512*475
 Y2-200L2-6  22 30  970  775*512*475
 Y2-225M-6  30 40  980  845*562*530
Y2-250M-6  37  50  980  930*630*575
Y2-280S-6   45  60 980  1000*685*640
 Y2-280M-6  55  75  980  1050*685*640
 Y2-315S-6  75  100  990  1270*948*965
 Y2-315M-6 90  125  990  1340*948*865
Y2-315L1-6 110  150 990 1340*948*865
Y2-315L2-6 132 180  990  1340*948*865
 Y2-355M1-6 160  215  990  1500*1020*1010
Y2-355M2-6  185  250  990  1500*1020*1010
Y2-355M4-6  200  270  990  1530*1020*1010





  CAST IRON BODY :

1.5KW 2HP 2800RPM CE Electric Motor



  ALUMINUM BODY :

1.5KW 2HP 2800RPM CE Electric Motor



WORKSHOPE :



 1.5KW 2HP 2800RPM CE Electric Motor1.5KW 2HP 2800RPM CE Electric Motor



Packaging & Shipping

 ac  motor  Packing And Warehouse Image



1.5KW 2HP 2800RPM CE Electric Motor





Company Information



Taizhou Julante Electromechanical Technology Co.,LTD  is a professional manufacturer of electric motor products.Have 22 years old in this business . Specialized in the production of three phase  ac electric motor ,single phase ac electric motor ,internal concrete vibrator , external concrete vibrator ,air compressor ,water pump motor , Cutting machine, welding machine, grinder,ect .







 OUR FACTORY :

1.5KW 2HP 2800RPM CE Electric Motor

 1.5KW 2HP 2800RPM CE Electric Motor

OUR  FRIENDS AND EQUIPMENT :

1.5KW 2HP 2800RPM CE Electric Motor





Certifications

Our Certifications have  CCC / CQC / CE / ISO9001.
