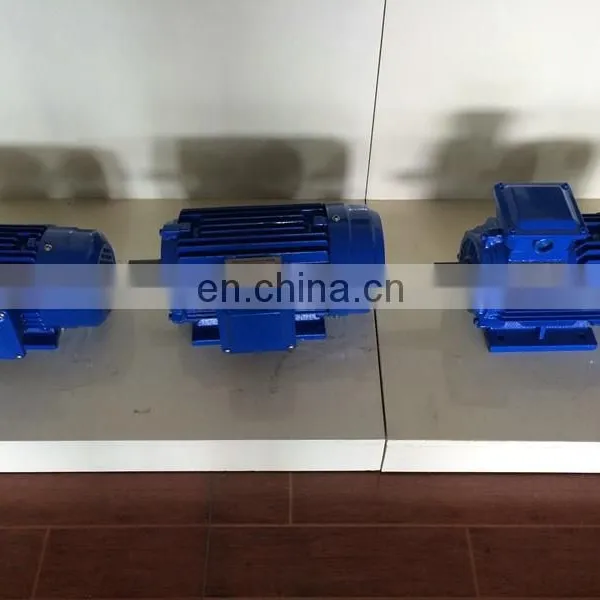

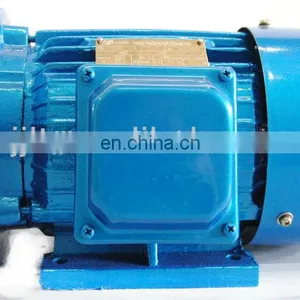

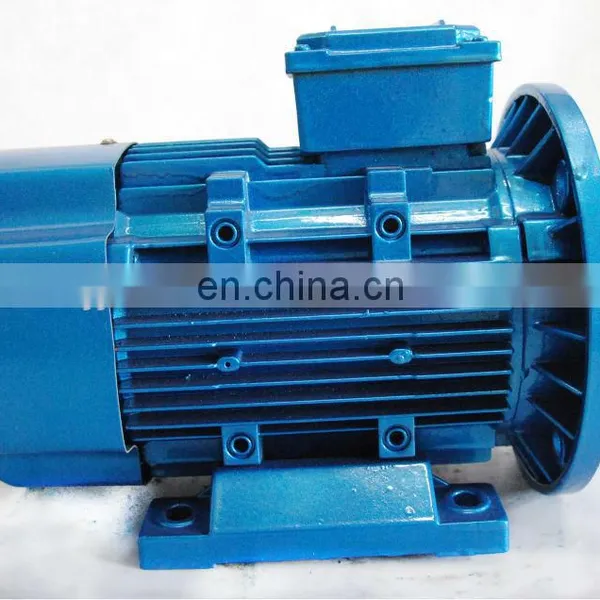

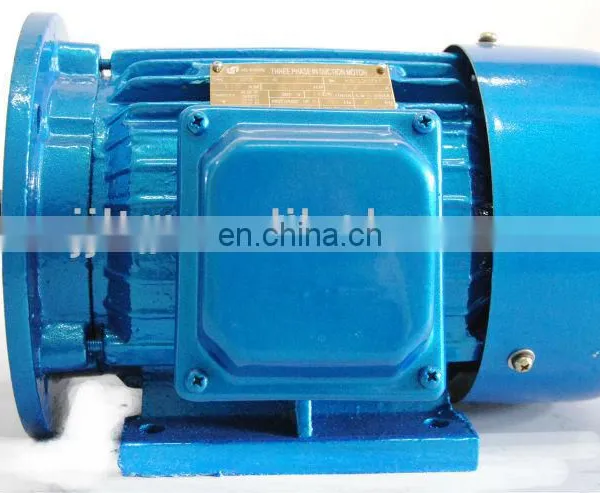

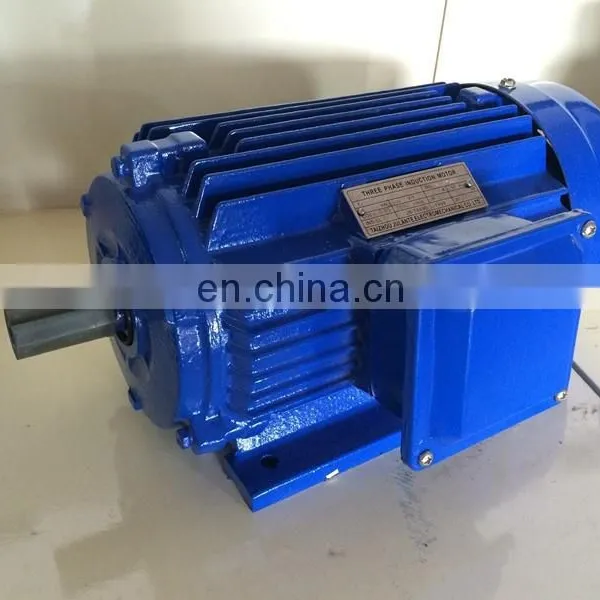

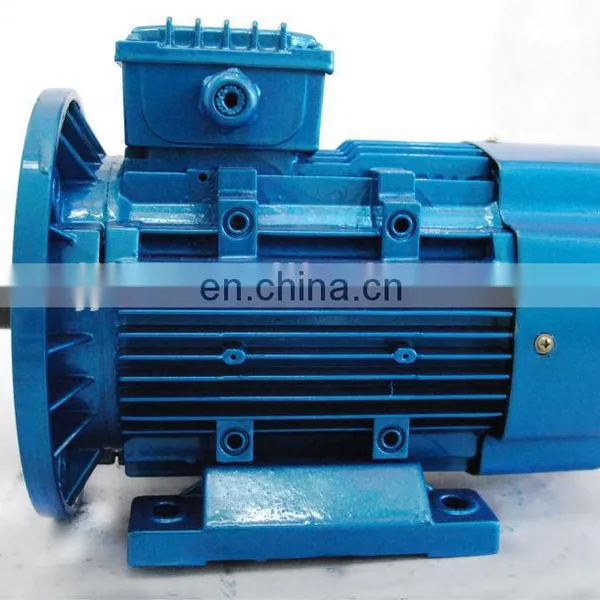

THREE PHASE ELECTRIC MOTOR
- 10000 Piece / Pieces per Month
- NINGBO OR SHANGHAI
- T/T Credit Card
- 3 phase motor 400V ac motor MS series aluminum casing three phase 7.5KW 10HP squirrel cage induction motor
- AC motor Y2 series three phase motors electric motor
- Electric Motor, Y2, Cast Iron Body, Copper Made rotor windings(without Aluminum)
- 1 phase capacitor started driving motor for compressor
- yl90s-2 -1.5kw single phase ac motor
- Y2series electric motor
Product Details
Brand Name: | julante | Place of Origin: | Zhejiang, China | Model Number: | Y2/MS |
Product Description
380V 50Hz SYNCHRONOUS SPEED 3000R/MIN(2 POLES) | |||||||||||||
MODEL | OUTPUT | FULL LOAD | 75%LOAD | 50%LOAD | TSTART/TN | IST/IN | TMAX/TN | ||||||
KW | HP | ||||||||||||
CURRENT | SPEED | EFF | POWER FACTOR | EFF(%) | POWER FACTOR | EFF(%) | POWER FACTOR | ||||||
(YS)MS561-2 | 0.09 | 0.12 | 0.30 | 2700 | 58.0 | 0.78 | 56.2 | 0.77 | 54.0 | 0.74 | 2.2 | 5.5 | 2.2 |
(YS)MS562-2 | 0.12 | 0.18 | 0.38 | 2700 | 60.0 | 0.79 | 58.5 | 0.78 | 56.0 | 0.75 | 2.2 | 5.5 | 2.2 |
(YS)MS631-2 | 0.18 | 0.25 | 0.53 | 2720 | 63.0 | 0.80 | 62.0 | 0.80 | 60.5 | 0.76 | 2.2 | 5.5 | 2.2 |
(YS)MS632-2 | 0.25 | 0.33 | 0.69 | 2720 | 65.0 | 0.81 | 64.0 | 0.80 | 62.5 | 0.77 | 2.2 | 5.5 | 2.2 |
(YS)MS711-2 | 0.37 | 0.50 | 0.99 | 2740 | 66.0 | 0.81 | 65.0 | 0.80 | 63.5 | 0.78 | 2.2 | 6.1 | 2.2 |
(YS)MS712-2 | 0.55 | 0.75 | 1.40 | 2740 | 71.0 | 0.82 | 70.0 | 0.82 | 68.5 | 0.79 | 2.2 | 6.1 | 2.3 |
(YS)MS801-2 | 0.75 | 1 | 1.83 | 2830 | 73.0 | 0.83 | 72.0 | 0.83 | 70.2 | 0.80 | 2.2 | 6.1 | 2.3 |
(YS)MS802-2 | 1.1 | 1.5 | 2.58 | 2830 | 76.2 | 0.84 | 75.1 | 0.83 | 73.0 | 0.80 | 2.2 | 7.0 | 2.3 |
(YS)MS90S-2 | 1.5 | 2 | 3.43 | 2840 | 78.5 | 0.84 | 77.0 | 0.85 | 70.0 | 0.81 | 2.2 | 7.0 | 2.3 |
(YS)MS90L-2 | 2.2 | 3 | 4.85 | 2840 | 81.0 | 0.85 | 80.0 | 0.85 | 78.0 | 0.84 | 2.2 | 7.0 | 2.3 |
(YS)MS100L-2 | 3.0 | 4 | 6.31 | 2870 | 82.6 | 0.87 | 81.0 | 0.86 | 79.3 | 0.86 | 2.2 | 7.0 | 2.3 |
(YS)MS112M-2 | 4.0 | 5.5 | 8.10 | 2890 | 84.2 | 0.88 | 83.5 | 0.87 | 81.0 | 0.84 | 2.2 | 7.5 | 2.3 |
(YS)MS132S1-2 | 5.5 | 7.5 | 11.0 | 2900 | 85.7 | 0.88 | 84.3 | 0.89 | 83.0 | 0.84 | 2.2 | 7.5 | 2.3 |
(YS)MS132S2-2 | 7.5 | 10 | 14.9 | 2900 | 87.0 | 0.88 | 85.9 | 0.87 | 83.7 | 0.84 | 2.2 | 7.5 | 2.3 |
Inner packing & delivery :
1) Frame 63-112: foam boxes
2) Frame 132-315: wooden boxes
3) Rated voltage: 380/660v
4) Frequency: 50Hz, 60Hz
5) Protection class: IP54
6) Insulation class: B
7) Materials: cast iron, aluminum (FRAME 63-160)
8) EFF: EFF3, EFF2, EFF1
9) Poles: 2, 4, 6, 8,
10) Cooling method: IC411 (total-enclosed fan-cooled type)

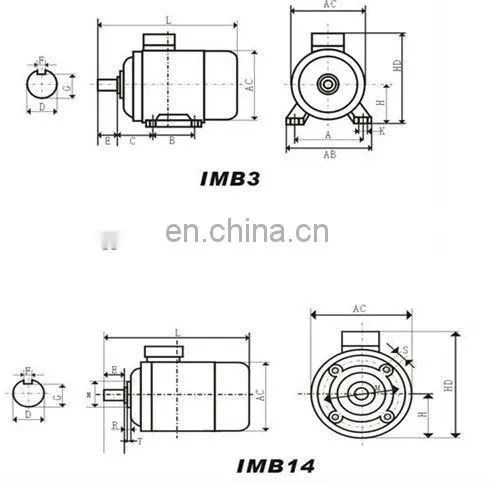

11) Mounting types: IMB3,
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature: -35oC and 40oC
15) The altitude should be lower than 1,000m above the sea level
16) Relative humidity: not higher than 90%
17) Special motors can be designed according to customers' requirements
After sale service:
we have 3 months warranty.
1. within 3 months,if there is some accesorry going wrong,we will send you the accessory at once,free of charge or deliver the spare in the next order
2. in the period guarantee,we change the defective parts(but the wearing parts)for free in the condtion that the users comply the rules of transportation,storage and using,if the vibrator is broken or can not be working well.
3.no responsibility for man-made destroy.
4.If the buyer has any questions from our technical department, we can supply on-line service
BENIFITS TO CLIENT:
- Reliable operation
- High efficiency
- Low noise
- Long life
- Power saving
- Slight vibration
- Try our best to meet customers' requirements, including voltage and frequency etc.
- It is newly designed in conformity with the relevant rules of IEC standards
- Special rotor balance for reduced vibration
- Warranty: 12 months from date of delivery.
