Product introduction

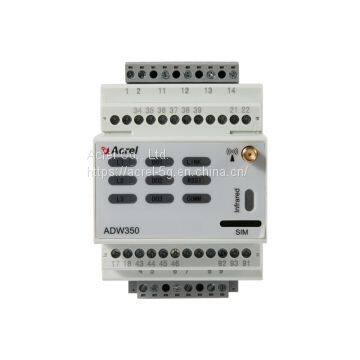

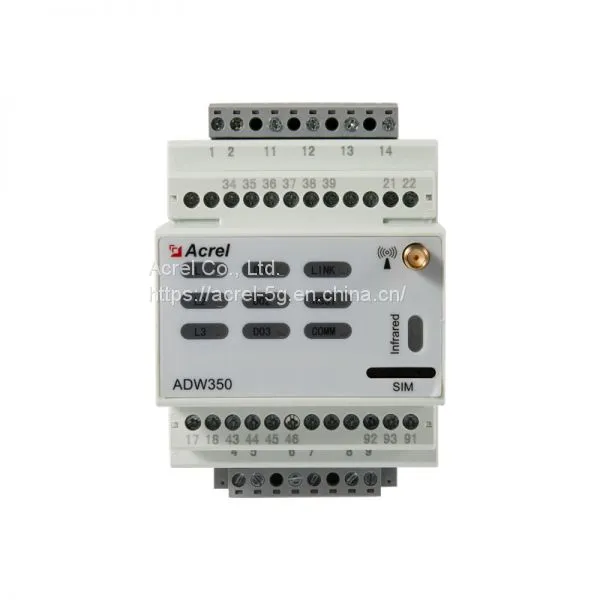

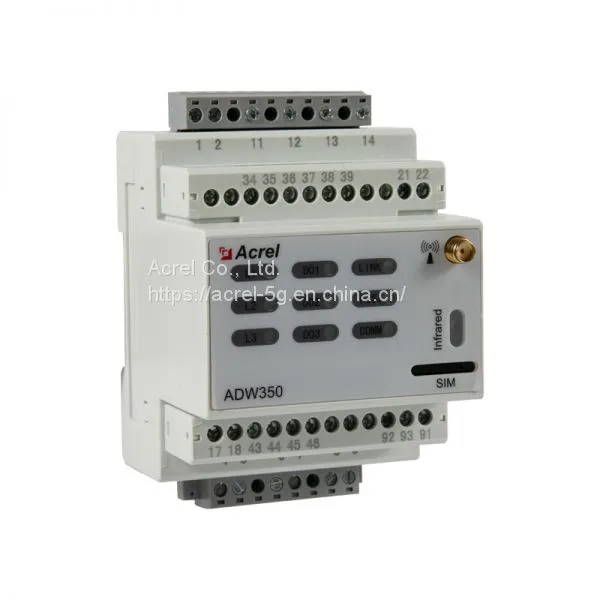

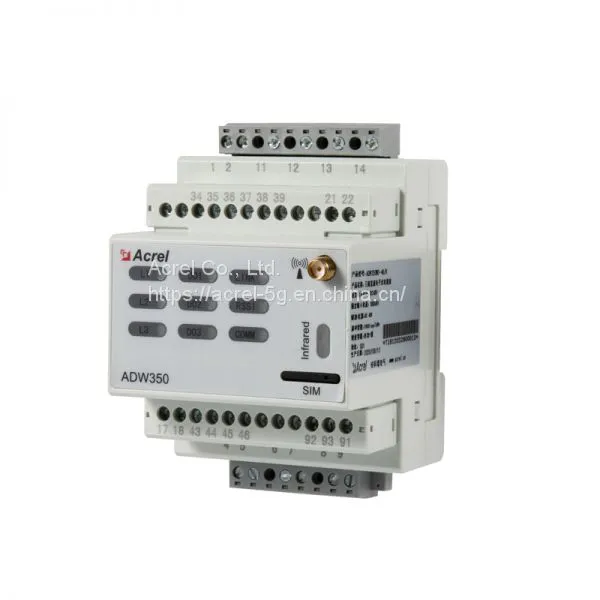

Adw350 wireless metering instrument is mainly used to measure the three-phase active power of low-voltage network. It has the advantages of small size, high precision and rich functions. It can support RS485 communication and Lora, 2G, Nb, 4G and other wireless communication modes. The current sampling mode of external transformer is added, which is convenient for users to install and use in different occasions. It can be flexibly installed in the distribution box to meet the requirements of sub item energy measurement, operation and maintenance supervision or power monitoring for different areas and different loads.
Function Description:
function
Function description
Display mode
LED indication
Electric energy measurement
Active electric energy measurement (forward and backward),
Four quadrant reactive electric energy
Electricity measurement
Power factor, active power, active power, reactive power
DC parameter measurement
Voltage, current, active power
Harmonic function
Total harmonic content, fractional harmonic content (2-31 times)
Pulse output
Active pulse output
Three phase unbalance
Unbalance of voltage and current
Temperature measurement function
2 temperature measurement (optional T)
DI/DO
3-way do (optional K)

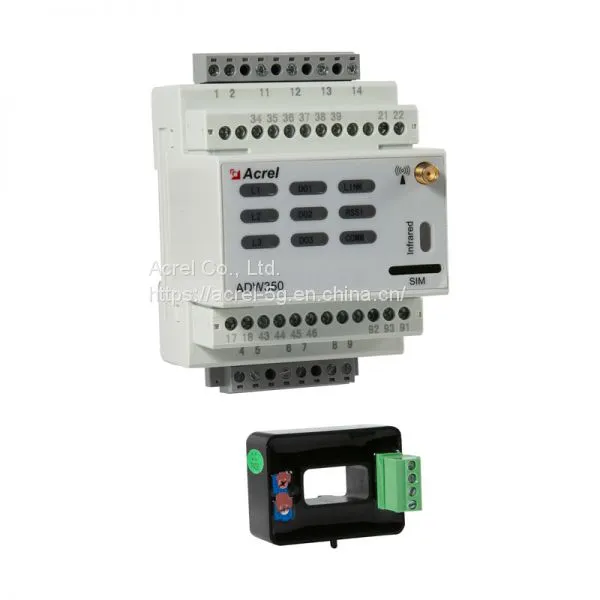

External transformer / Hall sensor
External open type transformer / external Hall sensor (optional w)
Electric parameter alarm
Under voltage, over voltage, under current, over current, under load, overload, etc
communication
Infrared communication
RS485 interface (optional C)
GPRS wireless communication (optional 2G)
Nb-iot wireless communication (optional NB)
4G wireless transmission (optional 4G)
