Features:

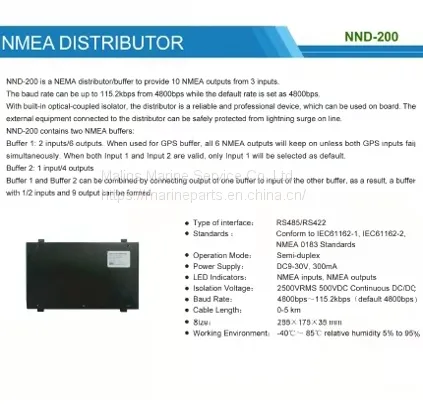

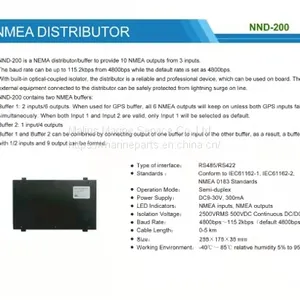

NND-200 is a NEMA distributor/buffer to provide 10 NMEA outputs from 3 inputs.
The baud rate can be up to 115.2kbps from 4800bps while the default rate is set as 4800bps.
With built-in optical-coupled isolator, the distributor is a reliable and professional device, which can be used on board.
The external equipment connected to the distributor can be safely protected from lightning surge on line.
NND-200 contains two NMEA buffers:
Buffer 1: 2 inputs/6 outputs. When used for GPS buffer, all 6 NMEA outputs will keep on unless both GPS inputs fail simultaneously. When both Input 1 and Input 2 are valid, only Input 1 will be selected as default.
Buffer 2: 1 input/4 outputs
Buffer 1 and Buffer 2 can be combined by connecting output of one buffer to input of the other buffer, as a result, a buffer with 1/2 inputs and 9 output can be formed.
【SPECIFICATIONS】
Model No.: | NND-200 |
Type of Interface: | RS485 / RS422 |
Standards: | Conform to IEC61162-1, IEC61162-2, NMEA 0183 Standards |
Operation Mode: | Semi-duplex |
Power Supply: | DC9-30V, 300mA |
LED Indicators: | NMEA inputs, NMEA outputs |
Isolation Voltage: | 2500VRMS 500VDC Continuous DC/DC |
Baud Rate: | 4800bps～115.2kbps (default 4800bps) |
Cable Length: | 0-5km |
Size: | 255×175×35mm |
Working Environment: | -40℃～85℃, relative humidity 5% to 95% |
