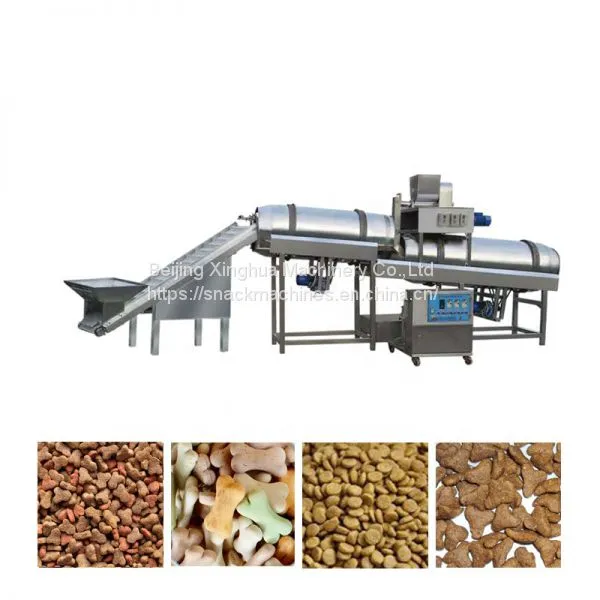

Help CenterDog Food Production Line
Related Products
Introduction
1. Mixing machine: Add a certain proportion of water to the raw corn flour, rice flour, soy flour, meat powder, cereal flour, additives, etc., and mix well.
2, feeding machine: using the motor as the power of screw conveyor, the mixed raw materials are transported to the feeding hopper of the extruder to ensure convenient and quick loading.

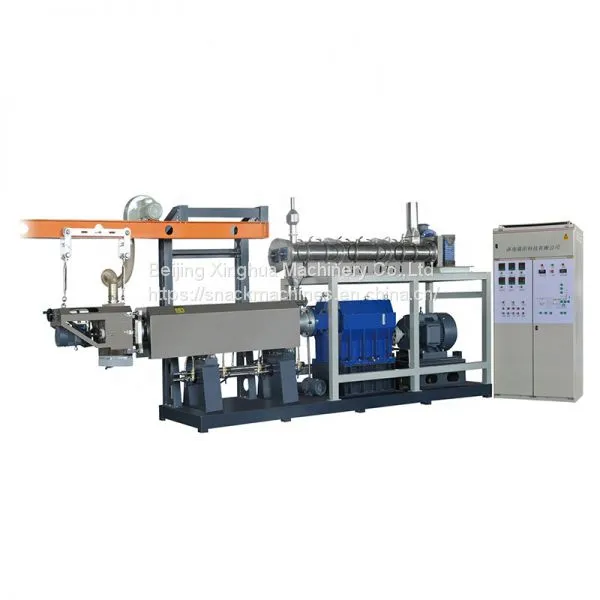

3, puffing machine: in the high temperature and high pressure environment, screw extrusion, make different specifications of feed, the specific particle size and shape can be replaced.
4. Conveyor: deliver the feed to the oven.
5, the oven: the oven is mostly electric oven, the temperature is adjusted between 0-200 degrees through the control cabinet, the interior is a double-layer mesh bag, reducing the moisture of feed pellets, promoting the ripening rate and increasing the shelf life.
7. Seasoning line: The oil sprayer sprays oil, attractant, etc. The seasoning tube has an octagonal cylinder, a cylinder, a lifting single drum, and a double drum seasoning line. According to the output and product nature, the grease is sprayed on the surface of the feed. Spray minced meat and spices and spread evenly.
Main Features
1. Motors are from WEG, Germany, which has 3-year world-wide guarantee;
2. Electric parts are from ABB or Schneider, easy to find replacments at local market;
3. PLC and touch screen are from Siemens, Germany to realize easier operation and less labor quantity;
4. While faults occurred, relevant information will be displayed on touch screen, easy to settle the problem;
5. Control cabinet has 24V safe voltage (not 220V), which could protect the operator even electric leakage occurred;
6. Three kinds of protectors to keep machine and operator safe: over-current protector, over-voltage protector and over-heat protector;
7. All the cover body, mesh belt and parts touching with materials or final products are made by stainless steel 304.
Service
Free training of equipment maintenance and operating personally;
Free new production techniques and formulas;
Provide 1 year complete warrantee and life-time maintenance service;
Engineers available to service machinery overseas.
