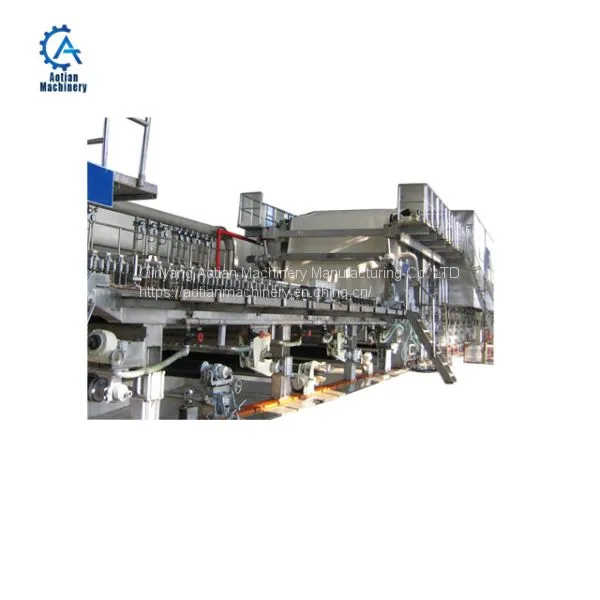

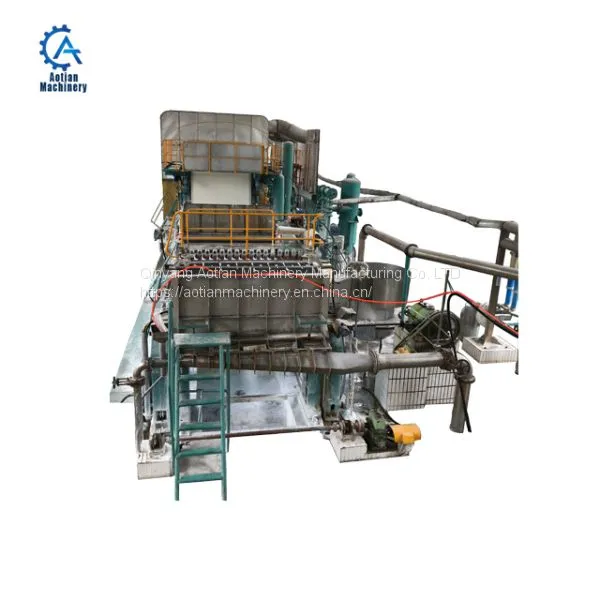

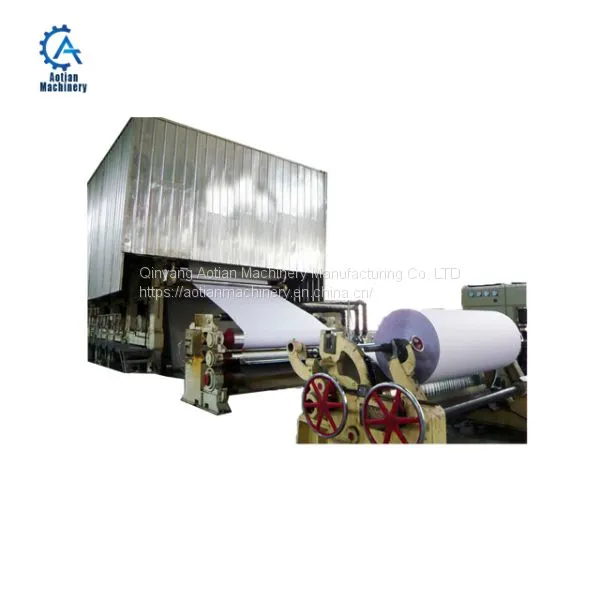

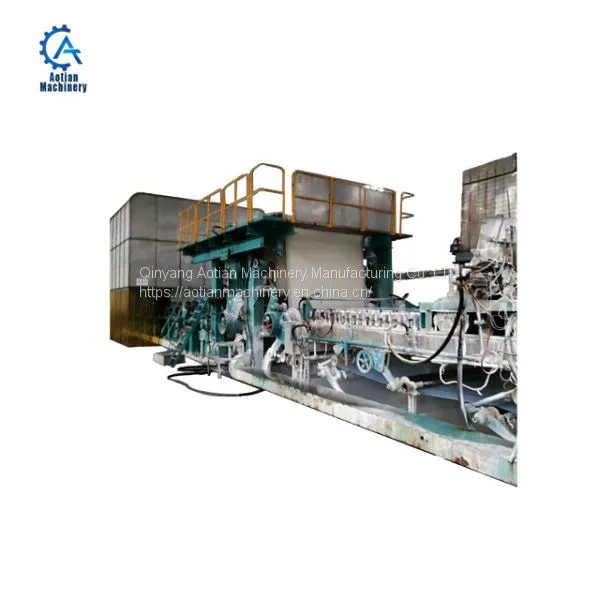

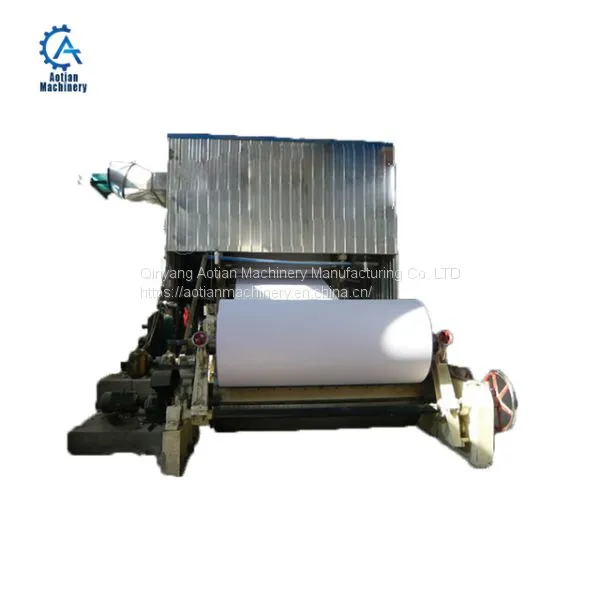

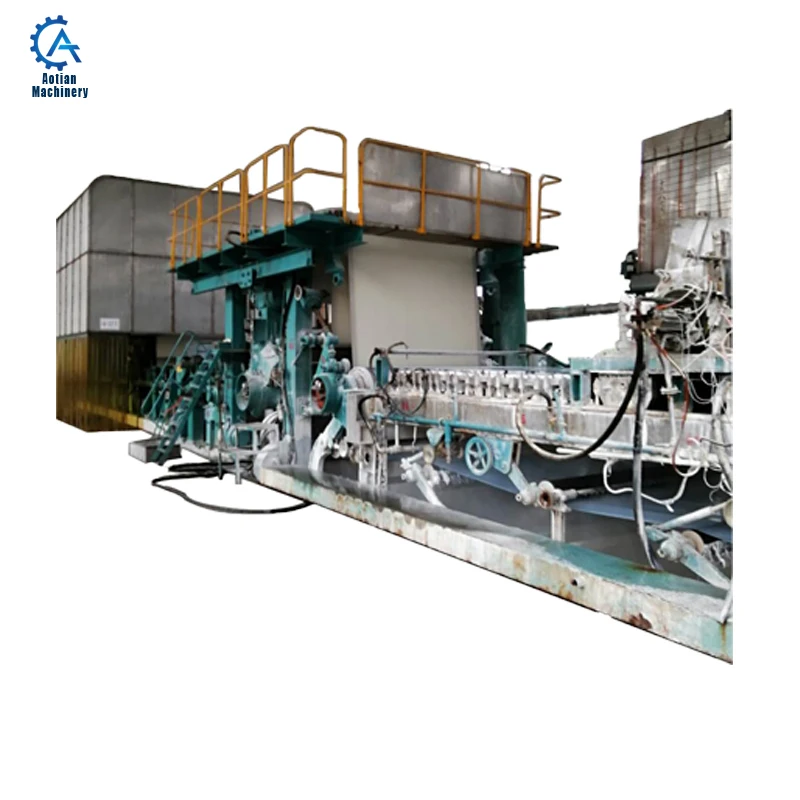

This paper machine can output newsprint paper and cultural paper, which includes fourdrinier forming section,prepressing section,pressing section,dryer section,driving section,base part section.
Wire part adopts open head box for pulping, fourdrinier wire for forming.
Pressing part adopts one section prepressing, one section main pressing.

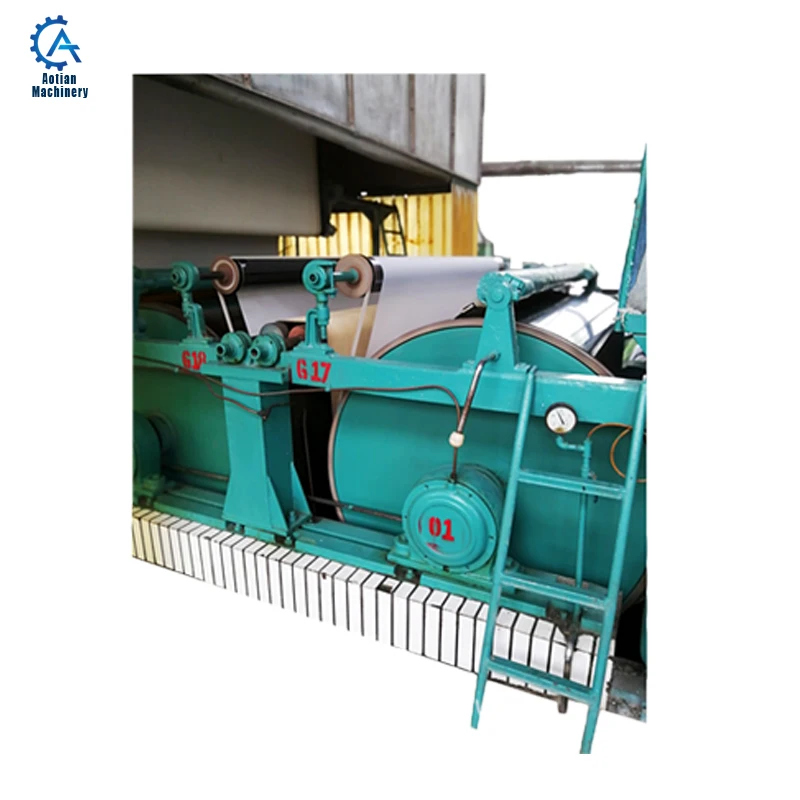

Dryer part adopts 2 pc φ2500mm dryer can + Sizing machine +4 pcs φ1500mm dryer cans + 5 rolls calander + cylinder rewinding machine + heavy doulbe cutter.
Driving part adopts section drive, AC frequency conversion.
Technical parameter
| 1 | Product name | Culture paper machine |
| 2 | Raw material | recycling wasted paper or virgin pulp |
| 3 | Output paper | Culture paper |
| 4 | Net paper width | 2400mm |
| 5 | Capacity | 50TPD |
| 6 | Paper weight | 40-100g/m2 |
| 7 | Gague | 3400mm |
| 8 | working speed | 150-380m/min |
| 9 | Size(mm) | 68650*6400*7000 |
| 10 | Transmission type | AC variable frequency drive division |
Packing
products will packaged according to their shapes, weight, transport distance and transport modes.Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc.
shipping
sea transportation is from Qingdao seaports or other china main ports.the delivery time is decided by machine types.But we also try to make it follows your needs.
Before Purchase
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
After purchase
1.Highly inspecting equipment in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems;
7.Providing life-long maintenance service;
8.Providing technical exchanging;
Aotian Machinery Manufacturing Co., Ltd.
Trade market
Our machines sell good in more than 30 countries,such as Nigeria, Egypt, Uzibekistan, Pakistan, America,Uganda,Turkey,Brazil,Fiji,Paraguay,Syria,Lybia,Ethiopia,etc.We have established good relationship with many foreign countries because of our good quality and perfect service.Also we have good relationship with local traders.
What we can provide
1.1092,1575,1760,1880,2400,2640,2800,3200mm paper machine
2.pulp making equipments
3.paper making equipments
4.paper processing equipments
Best Service
1.We will provide you all technical consultation and make the drawing and proposal for you.
2.We will send technicians to install and test the machine fo you.
3.We will train skilled workers for you.
4.We will supply best pre-sale, after-sales for you.
Q:Are you a manufacture?
A: Yes,we have been in providing the professional products in this field for 30 years.
Q:How to install the machine?
A:we can help with the installation by vedio,email,picture.if it is a large project,we can arrange our worker help you to install it in your country.
Q:How do you pack the products?
A:Normally as the export standard packaging or as your requirement.
Q:What's your available port of shipment?
A:Qingdao port,Shanghai port and so on.
Q:Is it customized available?
A:Yes,according to your detailed drawing you provided.
