High Voltage Copper Head Busbar 500A 800A

High Voltage Copper Head Busbar 500A 800A thumbnail-1
High Voltage Copper Head Busbar 500A 800A thumbnail-2
High Voltage Copper Head Busbar 500A 800A thumbnail-3
High Voltage Copper Head Busbar 500A 800A thumbnail-4
High Voltage Copper Head Busbar 500A 800A thumbnail-5
High Voltage Copper Head Busbar 500A 800A photo-1
High Voltage Copper Head Busbar 500A 800A photo-2
High Voltage Copper Head Busbar 500A 800A photo-3
High Voltage Copper Head Busbar 500A 800A photo-4
High Voltage Copper Head Busbar 500A 800A photo-5
US$ 13.69 - 29.69 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
MARCH
Place of Origin:
China
Model Number:
MCCBII
Contact Supplier Request Quote Chat Now
Wuhan March Industrial Electric Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MARCH
Place of Origin China
Model Number MCCBII

Product Description

1. Application environment :high temperature , high voltage , high dust

2.Application: Steel mills, coking plant, coal gas, cement factory , shipyards , wharf.

3. Length : 6M/Piece or 7 M/Piece

4 Certification: ISO9001, SGS, CCC ,CE

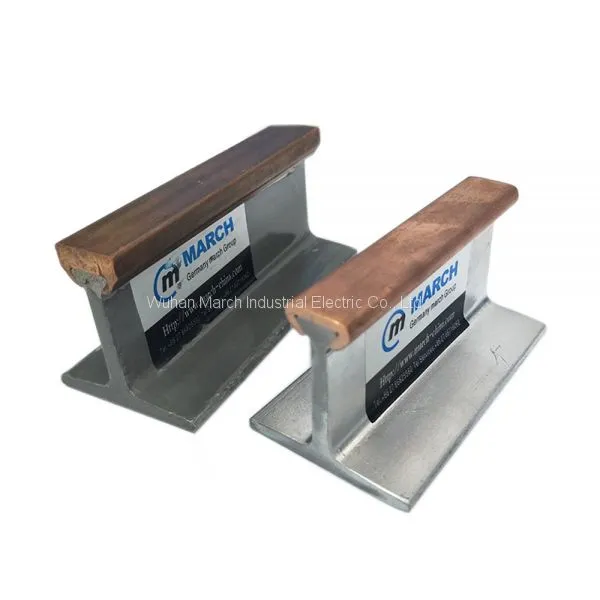

high voltage copper head busbar 500A 800A
 Product Name

Conductor Material
 steel/ aluminum
Rated current

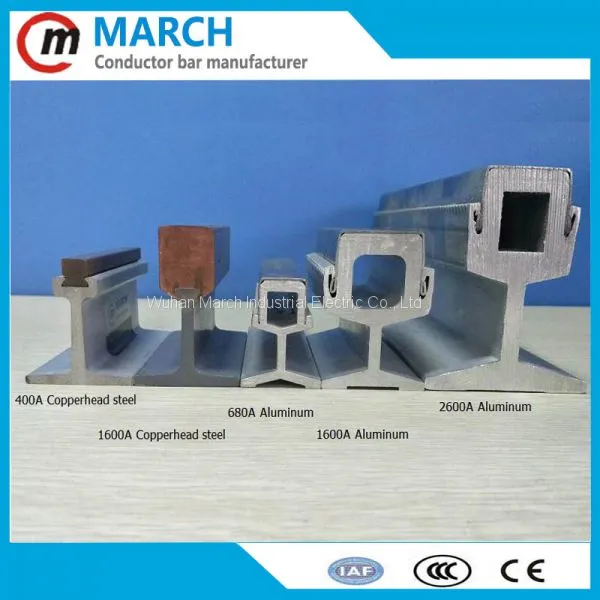

680A/900A/1100A/1350A/1600A/2000A/2300A/2600A/2900A
Warranty
One year
Ralated items
Current collector , joint . hanger . feeding. end cap , expansion sections ,support
Used
building industry machinery /Overhead crane /crane/Hoist /automobile manufacturing /
coking/automated/air port/shipbuilding /power generation
Type
mAX Continuous  (A)
Copper cross section (mm²)
Steel cross section (mm²)
H
 mm
a
mm
b
mm
Weight (kg)
MHS-50/500A-FE
500A
50
266
43.1
14.6
35
3.2
MHS-100/630A-FE
630
100
266
46
15.3
35
3.66
MHS-150/700A-FE
700
150
266
48.3
17.3
35
4.12
MHS-200/800A-FE
800
200
266
50.8
17.3
35
4.5
MHS-300/1000A-FE
1000
300
266
56.3
17.3
35
5.46
Products Show
Related Products

Accessories and related products :

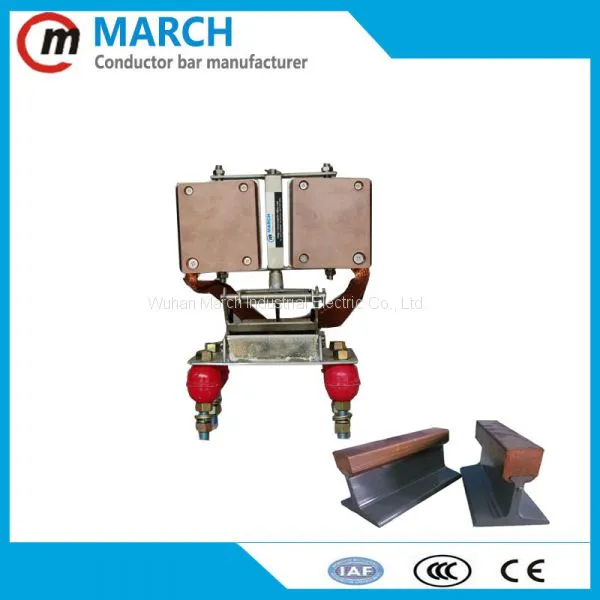

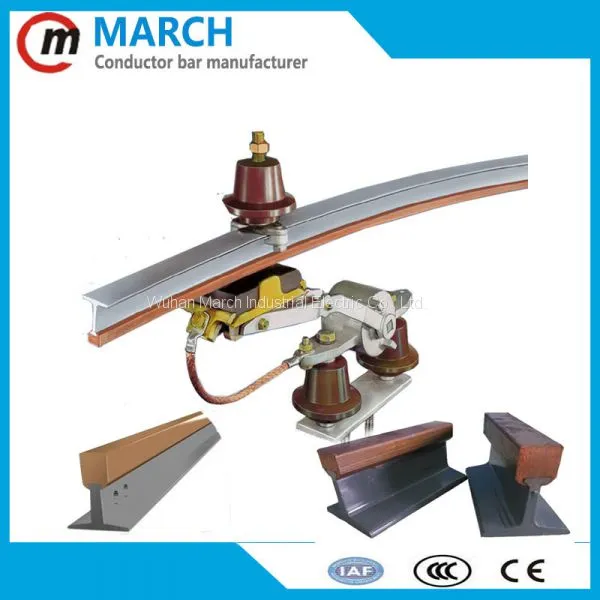

Current collector , Expansion section , Aluminum busbar

Customer Photo
Appllication

Widely used in industrial and minning enterprises with poor environment like steel mills , coking plant, coal gas ,cement factories , shipyards , and wharf . Suitable for the high temperature , high volatge , dusty environment ,Like steelmaking , casting , coking and other high temperature operation. Need high voltage or high current power supply. Like ports , shipyards and other special working environment .

Packing & Delivery

Packing Details  : Packing plywood box

Delivery Details : 7-15 days after order confirmed
