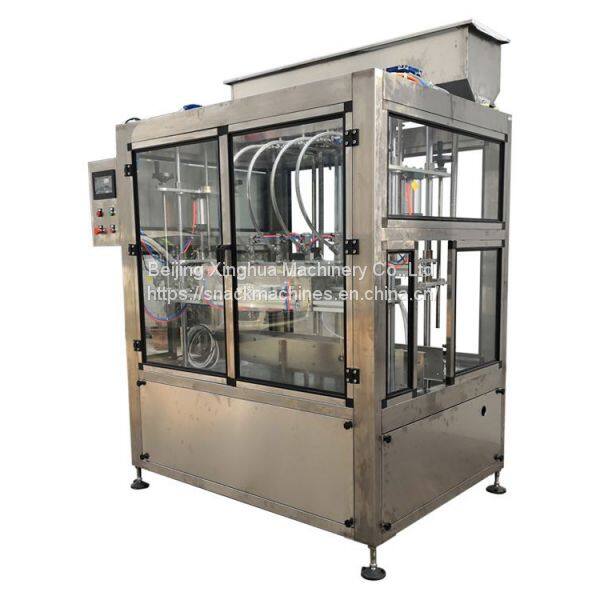

weigh and fill machine
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 30 days
You May Like
Product Details
| Brand Name | LOYAL | Place of Origin | China | |
| Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas | |
| Weight | 1500KG | Dimension(L*W*H) | 7100X1100X1400mm | |
| Voltage | 220V/380V | Power | 76KW | |
| Application | Apparel, Commodity, Textiles | Condition | New | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Packaging Material | Glass, Plastic, Wood | Packaging Type | Bottles, Case, Stand-up Pouch |
Product Description
Technical Parameters:
| Model: | D-50 |
| Packing Weight: | 5-50Kg |
| Packing Speed: | 3-6 bags/min |
| Packing Accuracy: | ±0.3% |
| Filling Method: | Auger(s) |
| Metering Method: | Fill-By-Weight |
| HMI: | LCD Touch Screen |
| Control System: | PLC |
| Air Pressure: | 0.4-0.6Mpa |
| Air Consumption: | 1 m3/h |
| Weighing Mode: | Sensor |
| Frequency/Voltage: | AC Three-Phase 380V 50Hz/60Hz |
| Power: | 2.2kw |
| Dimensions: | 3000×1500×2500mm |
Features:
With folder bag weighing measurement, PLC control technology
The independent suspension sensors, signal transmission stability and ensure weighing accuracy
Host, conveyor belts, sewing charter, networking controller, ensure user-friendly operation and reduce labor intensity
The infrared sensor, gate control feeding materials, more energy saving
Weighing control system in accordance with IP54 (dust and water) requirements of the design
