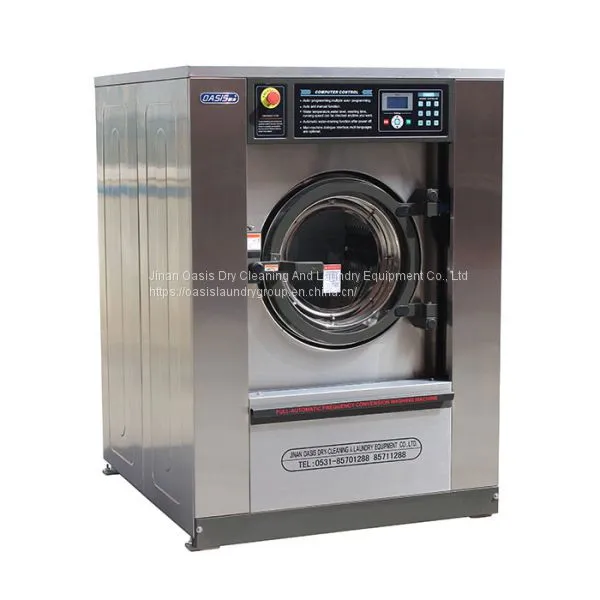

25kg Automatic Soft-mount Washer Extractor- SXT-250FD(Z)Q
Product introduction
Features:
● Compact design for space saving
● It adopts world latest MFS suspension technology and DFW patently electric balance shockproof technology to create better stability and durability, compared to the conventional washer extractors OASIS.
● The internal and external drum and flanged shaft are all made by mould without welding points, with qualified mirror finished SS304 stainless steel.
● Strengthened aluminum alloy pulley with imported drive belt adopted to prolong the use life and reduce the inertia load of the motor.
● Both automatically control and manual control system.
● The variable speed control system with vector multiple-speed linear.
● High extraction speeds up to 860RPM.
● PUNP brand programmable computer up to 32 wash programs
● Programmable water levels, temperatures and cool-down
● Steam heating OR electrical heating is optional
● Safety door interlock system with large sight glass
● Wide, rugged doors with viton seals
● Stainless steel panels OR painting panels is optional.
● Standard one cold water inlet. Hot water inlet is optional.
OASIS reserves the right to modify the specifications without prior notice.
Technical Specifications
Model |
Unit |
SXT-250FD/ZQ |
Basket Capacity |
KG |
25 |
Drum Volume |
L |
251 |
Drum Depth |
mm |
534 |
Drum Diameter |
mm |
774 |
Speed of basket |
||
Wash Speed |
rpm |
45 |
Mxx.Spin speed |
rpm |
860 |
G-force |
G |
320 |
Pipeline |
||
Cold water inlet |
inch |
3/4 |
Hot water inlet |
inch |
3/4 |
soap inlet |
inch |
|
Water outlet |
inch |
￠51 |
Steam inlet |
inch |
1/2 |
Pressure |
||
Steam Pressure |
mpa |
|
Water Pressure |
mpa |
0.15-0.4 |
Loading door |
||
Diameter |
mm |
539*539 |
Door center height |
mm |
880 |
Power |
||
Motor |
KW |
2.2 |
Electric Heater |
KW |
18 |
CONSUMPTION |
||
Water per cycle |
L |
4000kg |
Power |
Kwh/h |
0.8(S)/5(E) |
Steam per cycle |
kg/h |
20kg |
Contour Dimension |
||
Width |
mm |
1038 |
Depth |
mm |
1154 |
Height |
mm |
1466 |
Net Weight |
kg |
720 |
