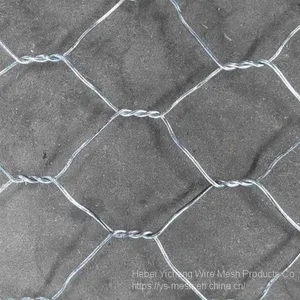

1.Brief info:Gabion boxes are made of double-twisted hexagonal wire mesh, it is mainly can be produced with material like hot-dip galvanized steel wire, zinc and aluminum alloy coated steel wire, PVC-coated steel wire, stainless steel wire and more.
Gabion boxes is an economic material which is simple installation, good corrosion-resistant, no collapse even under big scope of deforming, mixed to form a integrity with the natural environment.
It is also can be folded together easily for transportation and further installation.
2.Material: high-quality low carbon steel wire, stainless steel wire.
3. Wire diameter: 0.5-4.0mm
4. Aperture: 60 x 80, 80 x 100, 80 x 120, 100 x 150, 120 x 150
5. Zinc coated: 30-200g/m²
Assortment: electro-galvanized hexagonal wire mesh, hot-dip galvanized hexagonal wire mesh, stainless steel hexagonal wire mesh, PVC coated hexagonal wire mesh
6. Weaving patterns: straight twist, reverse twist, double twist, electro-galvanized before or after weaving, hot-dip galvanized before or after weaving
7. Applications:◦Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
8.Hole Size:60x80mm 80mmx100mm/100mmx120mm
Gaboin Mesh/Gabion Box/Reno Mattress/ | |||
Hole Size | Mesh Wire Diameter | Selvage Wire Diameter | Lacing wire Diameter |
60x80mm | 2.0-4.0mm | 2.0-4.0mm | 2.0-4.0mm |
80x100mm | 2.0-4.0mm | 2.0-4.0mm | 2.0-4.0mm |
80x120mm | 2.0-4.0mm | 2.0-4.0mm | 2.0-4.0mm |
100x120mm | 2.0-4.0mm | 2.0-4.0mm | 2.0-4.0mm |
100x150mm | 2.0-4.0mm | 2.0-4.0mm | 2.0-4.0mm |
120x150mm | 2.0-4.0mm | 2.0-4.0mm | 2.0-4.0mm |
Length (M) | Width (M) | Height (M) | Diaphragm(Unit) | Volume(M3) |
2 | 1 | 0.3 | 1 | 0.6 |
3 | 1 | 0.3 | 2 | 0.9 |
4 | 1 | 0.3 | 3 | 1.2 |
2 | 1 | 0.5 | 1 | 1.0 |
3 | 1 | 0.5 | 2 | 1.5 |
4 | 1 | 0.5 | 3 | 2.0 |
1 | 1 | 1.0 | 0 | 1.0 |
1.5 | 1 | 1.0 | 0 | 1.5 |
2 | 1 | 1.0 | 1 | 2.0 |
3 | 1 | 1.0 | 2 | 3.0 |
4 | 1 | 1.0 | 3 | 4.0 |
9.Packing :Packing is very important during the transportation, products will be heavily destroyed is with packing or with bad package. We do our products with heart and soul, will protect it very well then send to your hand Normally, we packed with bubble film and foam board, some temporary will also add iron pallet. Special packing also can do as customers' require.
10. Feature
Gabions are environment friendly and cost effective comparing with other options. The advantages of cost and the fact that gabion box can withstand the bad environment for very long time have made the use widespread.
11.Gabion Applications
♦ Control and guide of water or flood
♦ Flood bank or guiding bank
♦ Preventing of rock breaking
♦ Water and soil pretction
♦ Bridge protection
♦ Strengthening structure of soil
♦ Protection engineering of seaside area
12.Company information
Hebei Yicheng Wire Mesh Products Co., Ltd is located in the famous "hometown of wire mesh" Anping county. Our main products are gabion mesh, wire mesh fence, welded wire mesh, stainless steel wire mesh, chain link fence, hexagonal wire netting, perforated wire mesh, expanded wire mesh and various kinds of filter products.
If you have any question, please contact us.
