Main Parameters of Rubber Band Production Machine Capacity: 50-60kg/h
Total power: 30Kw
Length of whole line: 8m
Diameter of screw: 65mm
Details or Advantage of Rubber Band Manufacturing Machine
1) It is equipped with the harden teeth surface gear reducer ucer material: 20CrMoTi; rodents form: Helical surface; heater treatment: Carburizing gear grinding; type of connection: belt drive
2) The material of screw and barrel: 38CrMoAlA, which is hardened by nitriding treatment. 0.6～0.7mm, screw Hardness: 840HV, screw rotate speed: 20-90r/min, barrel Hardness: 940HV, Material of the screw die head: Alloy steel;
3) Heating ring for barrel: casting aluminum, 5 zones heating, heating power: 3.6kw per zone. Air fan cooling: Cooling power: 0.25kw*3.
4) Electrical elements: DELIXI Brand (THE BEST ELECTRICA ELEMENTS PRODUCER IN CHINA) and digital temperature-controlling meter.
5) Main motor: 15kw (China famous brand) and 15kw Frequency converter, driven by controlled by HOLIP AC inverter (Danfoss Group).the motor is with overloading protecting.
6) Die head: 38CrMoAlA material. Treatment nitrogen and bluing, Heater material for dies: stainless steel.
CANDID have a professional team could design most suitable Rubber Band production line according to customer requirement, including extruding line, mold, raw material. Regarding Rubber Band production customer could get one-stop service from CANDID.
CANDID have a professional after-sale team could guide the customer in their workshop to install the Rubber Band making machine and training their worker until they could operate the machine well, and our team is full experience in this field could solve any problem that may occur in the installation.
Description

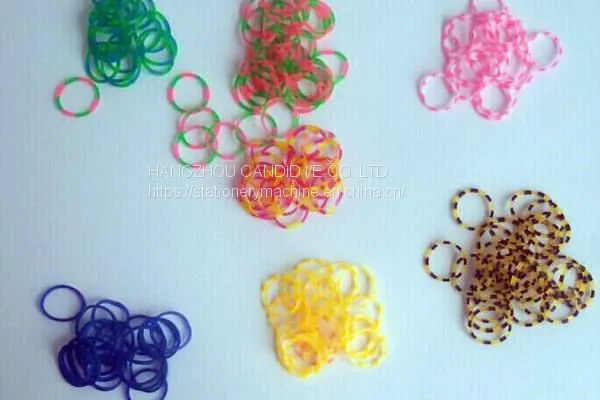

This machine is used for making rubber band which is often used as toy, decoration and gift packing etc. we have machines could produce the different color, different size as per customer request.
The demand for Rubber Band is found at home, offices, shops-almost everywhere.
You can make Rubber Bands with the Rubber Band Making Machine and after packing it you may sell it in the market or other whole sellers.
You can collect used rubber after crushing them and put into Rubber Band Making Machine to make Rubber Bands.
For the operation of making Rubber Bands is not complicate and it does not need a big place. Besides, no matter man or women could both handle this job as it does not need too much labor.
Production Capacity |
50-60kg/Hour |
Main motor |
15kw |
Diameter of screw |
65mm, L/D: 25:1 |
Die head |
38CrMoAlA material |
Size |
8m*2m(length *width) |
CANDID is a professional rubber band making machine manufacturers,we provide stationery machine, stationery making machine，stationery manufacturing machines. CANDID owns experienced team in design, marketing and after-sale service, could offer you most suitable proposal, high-quality pre-sale, in-sale and after-sale service. To customize safe, economic, efficient and accurate proposal for every client is our target and their satisfaction is our greatest pursuit.
