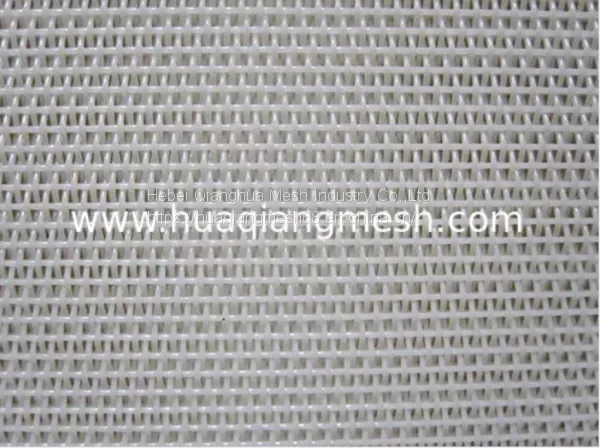

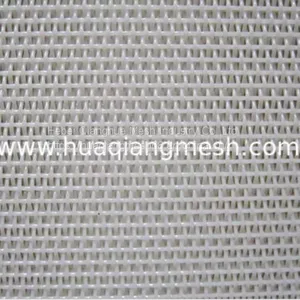

Double layer woven dryer fabric for paper making
Polyester woven dryer fabrics/Polyester woven dryer screen
Woven dryer screen made from high grade flat monofilament and round monofilament polyester yarns.
According to the weaving, woven dryer fabric can be divided into 3-shed, 4-shed. According to the category,polyester dryer fabric can be divided into one and a half layer, double layer and rectangular wire fabric.
According to the joining mode, it can be divided into insert, pin, pin ring and spiral ring joint.
3-shed one and a half polyester dryer fabric is suitable for drying papers below 70g.
4-shed double layer polyester dryer fabric is suitable for drying papers above 70g.
We offering for increased drying rate, improved paper quality and energy savings. It suitable for
the fore several heating box of the drying zone, quality papers can use all.
Material: Polyester,Teflon,PPS.
Color: White,Red.
Seam type: Pin joint,Spiral seam.
Application:Used in the dryer section of paper machine to produce newprint paper, writing paper, carbonless paper, copper print, etc.
Technical data of Polyester woven dryer fabrics
Type | Fabrics | Thread | Strength | Weight | Thickness | Air | |||
warp | weft | surface | Ring joint | joint | |||||
Three-shed | D6352 | 0.50 | 0.50 | 2000 | 900 | 1400 | 1.06 | 1.9 | 8000 |
Four-shed | D6442 | 0.50 | 0.50 | 2000 | 900 | 1400 | 1.26 | 2.1 | 12000 |
Round wire | D8006 | 0.50 | 0.70 | 2200 | 900 | 1500 | 1.3 | 1.75 | 6800 |
Flat wire dryer fabrics | D8006-1 | 0.58 | 0.5 | 2000 | 800 | 1400 | 1.2 | 1.5 | 2500 |
D8006-5 | 0.29 | 0.9/0.98 | 2600 | 900 | 1800 | 1.33 | 1.54 | 19 | |
More information please click here.
