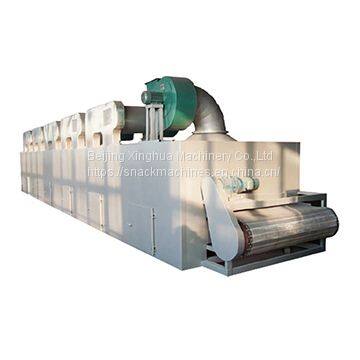

Continuous Conveyor Dryer

Continuous Conveyor Dryer thumbnail-1
Continuous Conveyor Dryer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LOYAL
Place of Origin:
China
Type:
Dryer
Contact Supplier Request Quote Chat Now
Beijing Xinghua Machinery Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LOYAL
Place of Origin China
Type Dryer
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 Year
Weight 1500KG
Dimension(L*W*H) 7100X1100X1400mm
Condition New
Voltage 220V/380V
Power(W) 76KW

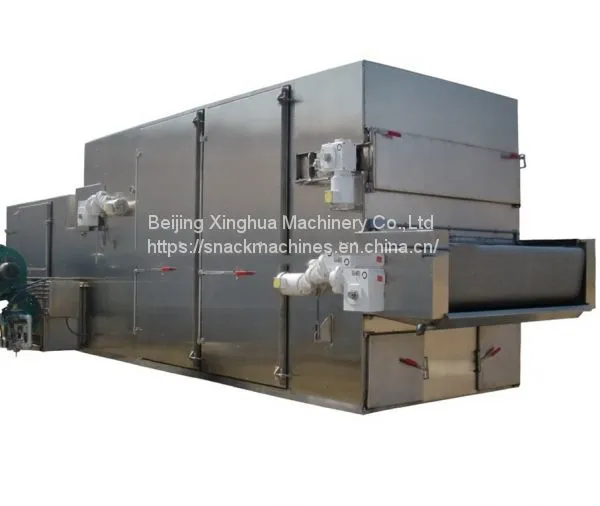

Product Descriptioncontinuous conveyor dryerThe continuous conveyor dryer is a kind of continuous production drying equipment. The drying system contains mainframe, heat furnace, conveyor belt, distributor, sealing device, heat preservate device, hot air input device, etc. there are guide materials and inversion of the dryer inside to make good contact with materials,and achieve the purpose of dry evenly.

No Model Power Dehydration Capacity Sterilization Capacity Size (LXWXH)
1 JY-12KWSP 12KW 12kg/h 120 - 150kg/h 7x0.84x1.75m
2 JY-20KWSP 20KW 20kg/h 192 - 240kg/h 9.4x0.84x1.75m
3 JY-30KWSP 30KW 30kg/h 300 - 375kg/h 11.7x0.84x1.75m
4 JY-40KWSP 40KW 40kg/h 396 - 495kg/h 10.52x1.06x1.75m
5 JY-50KWSP 50KW 50kg/h 504 - 630kg/h 11.7x1.06x1.75m

EQUIPMENT  ADVANTAGE:

1.Less labor cost and energy consumption
2.Little loss of product and solvent recycling possible
3.PLC automatic control system & CIP cleaning system
4.Good solubility & excellent quality of the products
5.Continuous feed-in, dry, granulate, discharge in vacuum state
6.Completely closed system and no contamination
7.Adjustable drying temperature (30-150℃)& drying time (30-60min)
