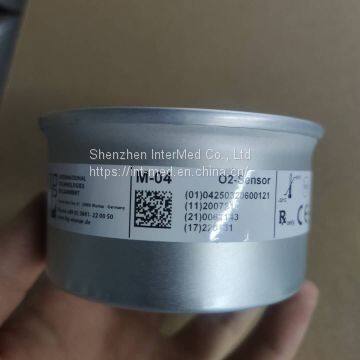

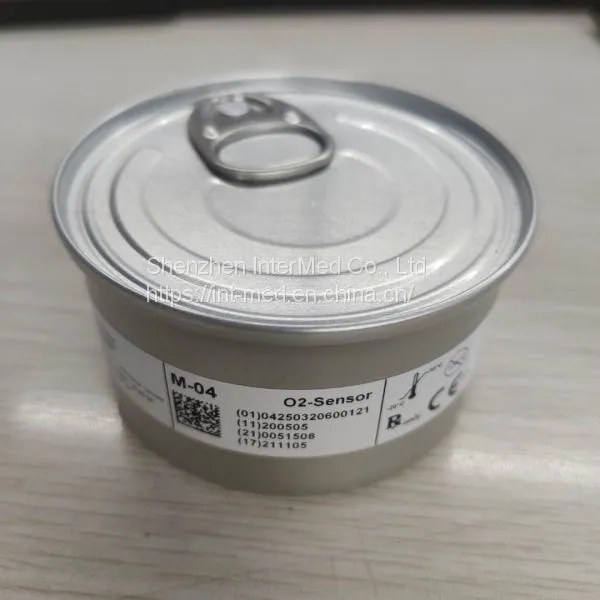

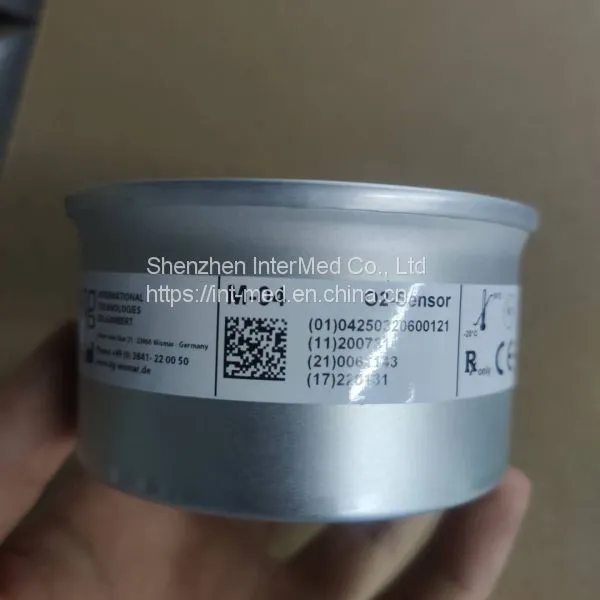

Help CenterM-04 Oxygen Sensor Medical
Related Products
-
R-22MED Oxygen Sensor MedicalNegotiableMOQ: 1 Piece -
Breath Alcohol Tester Alcohol Breath Analyser (AlcoEasy A60) for Road SafetyNegotiableMOQ: 1 Piece
-
Police Portable Alcohol Breathalyzer A30 With PrinterNegotiableMOQ: 1 Piece
-
Police Professional Breath Alcohol Analyzer A20 With Built-in Printer for CarNegotiableMOQ: 1 Piece
-
Quick Alcohol Tester With Traffic Baton Function A12NegotiableMOQ: 1 Piece
Long life gas sensor that shows high signal stability at low cross interferences to anesthesia gases combined with superior linearity over the entire range.
Measurement Range: 0 to 100Vol.%
Expected Operating Life: ～1,00,000 Vol.%h
Sensor Lifetime: <6years @ ambient air,depending on application
Electrical Connector: 3-pin Molex gold plated
Initial Output Signal: 12.5 to 16.5mV@ dry ambient air
Response Time to: <12s
Drift: <1% Vol.O/month @ air,averaged across 12 months
Operating Temperature: 10 to 40C 700to 1250hPa
Pressure Range:Linearity Error: ≤3%@100% O,appliedfor5min
Zero Ofset Voltage: ≤0,3Vol% O2@100%N,appliedfor 5min
Repeatability: ±1%Vol.O@100%O,applied for 5min
Influence of Humidity: -0.03% rel.O2reading per % RH
Recommended Load Resistor: ≥10 kOhm
Temperature Compensation: NTC
Interferences: according to DIN ENISO80601-2-55
Weight: approximately 24g
Material in Contact with Media: PA, PPS, PTFE, stainless steel
