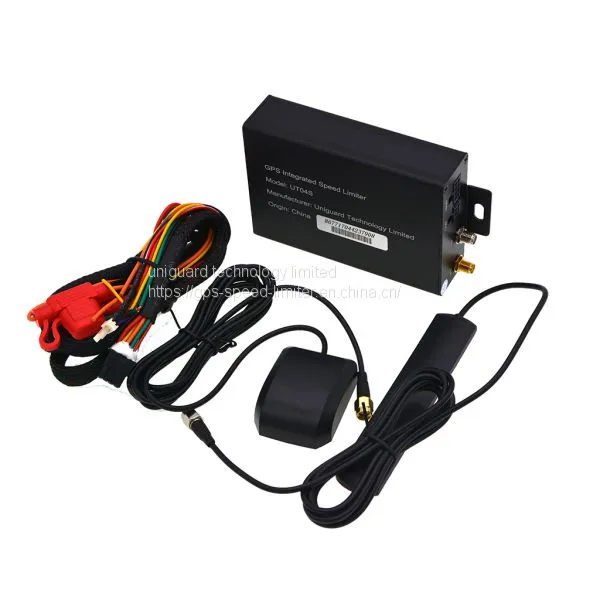

Help CenterMechanical Speed Governor Limiter Motorcycle Motorcycle Portable Vehicle Programmable For Trucks Vehicles In Kenya Nr019
Related Products
-
Accelerator Pedal Speed Limiter Gps Intigrated Hot-Speed-Limiter Kenyan Stardard S Limitador Velocidad Para Coches Pgl RoadUS$ 75 - 85MOQ: 5 Pieces -
Speed Limiter Ut04S With Out Limiters Limiting Device Throttle Truck Truck-Speed-Limiter Truck Speed Limiter Universal CarUS$ 75 - 85MOQ: 5 Pieces
-
MR Elevator Safety Device Elevator Mechanical Speed Governor PriceNegotiableMOQ: 1
-
WOODWARD UG10 8526-653 Mechanical Hydraulic Speed GovernorUS$ 10000 - 15000MOQ: 1 Combo
-
Test the Mechanical Speeds Governor,Rotation Speed: 0~4000 R/m,Diesel Fuel Injector Pump Test MachineNegotiableMOQ: 1 Set
Speed limiter features:
1 Speed Limiter
Enforce to limit the speed of your vehicle if preset maximum speed
2 Tamper proof
Maximum speed is 40km/h if maximum speed is tampered or sensor is cut.
3 Download data
Data can be stored for 72 hours at interval of 5 seconds.
Data can be retrieved by connecting device to computer via USB data port
4 Bluetooth Printer
Violations can be printed out for the last one-hour driving. Portable printer prevents drivers from printing
Speed violations can be printed
5 Violations alarm
All violations will be transmitted to platform.
6 Over speed alarm
When vehicle reaches 95% of preset speed limit, built-in buzzer shall make sound alarm to warn driver.
7 Fuel monitoring (optional)
Monitor vehicle fuel consumption. Need connect with fuel sensor that gives out analog voltage.
Real time fleet tracking Working power: 2W

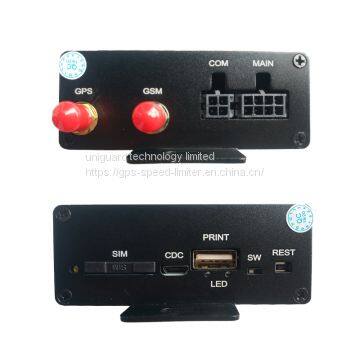

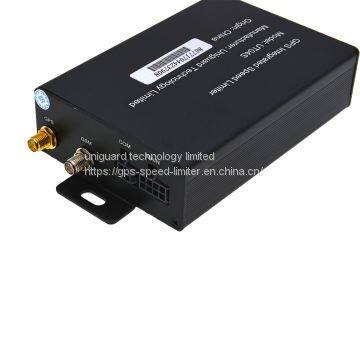

GPS speed limiter specs:
Name |
UT04S GPS Speed Limiter |
Weight |
191g |
Dimension |
110*75*30 mm |
Working voltage |
DC 9V-36V |
Backup battery |
800mAh 3.7V |
Battery working time |
4hrs |
Working current |
60~150mA |
Standby current |
16mA |
Charging current |
Max |
Input Fuse |
2A |
Working power |
2W |
Working Temp. |
-45~85℃ |
GSM Frequency |
850/900/1800/1900 Mhz |
Max RF output |
33.0dBm±2dBm |
Dynamic input range |
-15 ~ -102dBm |
GPS chipset |
Ublox 7 |
GPS frequency |
L1, 1575.42 MHz |
GPS accuracy |
5 meters at 2D RMS |
|
Interface |
1 A/D Port for fuel monitoring |
1 Interface for data config by PC | |
1 USB port for USB disk data download | |
2 Port for speed limit | |
1 Input for speed signal | |
1 Input for Bluetooth Printing control | |
Built in Flash |
Store data of last 72hrs, above 5000 points |
Built in Buzzer |
Sound alarm when speed reaches 95% of set value |
Alarm |
External power cut, Lower battery, Over speed, Geo-fence |
Tracking method |
Real time on Web Software and Phone APP |
Account level |
Unlimited sub account management |
Report |
Trip report, Speed report, Geo-fence report, Parking report, Driving Report, Alarm report, Mileage report, Engine Idle report |

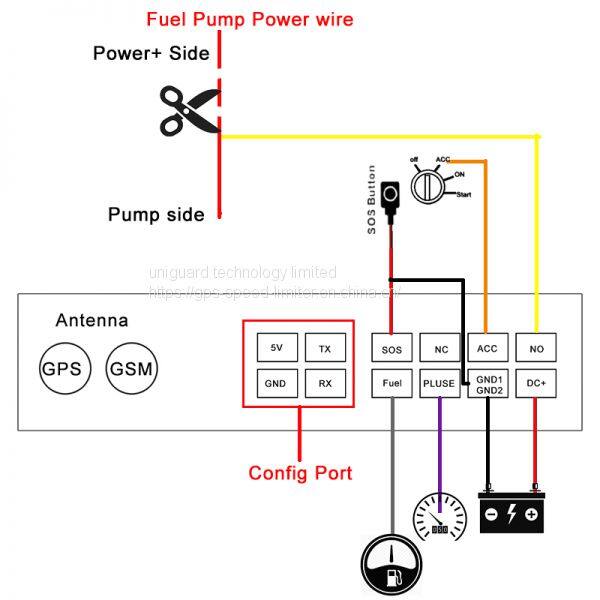

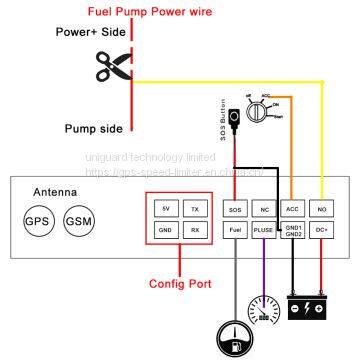

GPS speed limiter connection:
ACC: (Orange) connected to vehicle ACC wire to detect engine ON/OFF
PULSE: (Purple) connected to vehicle speed signal wire to detect speed
GND / DC+: (Red and Black) connected to battery positive and ground.
GND / SOS: connected together with SOS button to control wireless printing. (With wireless Bluetooth printer turned on, press SOS button for 3 seconds, device shall beep, in 15 seconds device shall print last 1 hr data including over speed data. Long beep once all data is printed.)
NC / NO: (Green / Yellow) cut off fuel pump power wire, connect NO Yellow wire to the cut point, working as a power supply to fuel pump. (Relay and buzzer are built-in, when speed reaches 95% preset value, beep; 100% speed reached, built-in relay is activated with continuous beep.
Fuel (Grey) connect with fuel sensor signal wire to monitor fuel consumption (Optional)
SIM slot: insert SIM card
Micro USB: connect device to PC for config
USB disk: insert USB disk for data download (beep sound after inserting, long beep once all data is downloaded.)
SW: built-in backup battery switch. (Default OFF)
RESET: one click to restart device
LED: Blue for GPS (ON if signal okay), Green for GSM (slow flash if signal okay)
